Home /Products/Variable Frequency Drives VFD/INOVANCE CS710-4T7.5GB VFD Vector Control Industrial Drive.

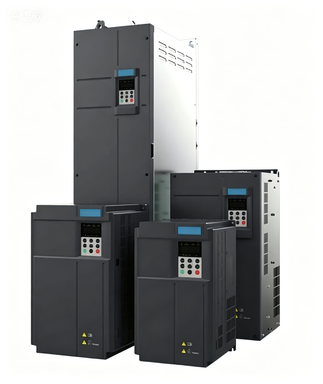

INOVANCE CS710-4T7.5GB VFD Vector Control Industrial Drive.

1
MOQ
655-765$
Price
INOVANCE CS710-4T7.5GB VFD Vector Control Industrial Drive.
Features Gallery Product Description Chat Now
Features
Specifications
Inverter Power: 0.2kW~22kW
Igbt: Infineon,Renesas
Cooling Method: Forced Air Cooling (Fan)
Memorycapacity: Typically 16KB To 1MB
Highlight:

INOVANCE CS710 frequency converter 7.5KW

,

three-phase 380V VFD for lifting

,

INOVANCE CS710 variable frequency drive 75KW
Basic Infomation
Place of Origin: China
Brand Name: Inovance
Certification: CO
Model Number: CS710-4T7.5GB
Document: CS710_Br_EN_Spreads_Web_V0.....3.pdf
Payment & Shipping Terms
Delivery Time: 5-8days
Payment Terms: T/T
Supply Ability: 98PCS
Product Description

Model: CS710-4T7.5GB 7.5KW

Product Overview

The INOVANCE CS710-4T7.5GB is a compact high-performance variable frequency drive (VFD) engineered for precise speed and torque control of three-phase asynchronous AC motors. As part of Inovance's cost-optimized CS710 series, it delivers exceptional reliability and energy efficiency across a broad spectrum of industrial automation applications, from simple fan/pump drives to complex material handling systems.

✨ Product Advantages
  • Dual Control Modes — Sensorless vector control (SVC) and V/F control for flexible application matching across varying load types
  • High Starting Torque — Delivers 150% rated torque at 0.5 Hz, ensuring smooth startup even under heavy load conditions
  • Comprehensive Protection — Built-in overcurrent, overvoltage, undervoltage, overload, short-circuit, phase-loss, and overtemperature safeguards
  • Built-in PID Controller — Integrated process control for closed-loop regulation of flow, pressure, and temperature without external modules
  • Auto-tuning Capability — One-touch motor parameter auto-tuning for rapid commissioning and optimal control accuracy
  • Rich I/O & Communication — Multi-function digital/analog I/O plus RS485 Modbus RTU for seamless integration into automation networks
  • Built-in Braking Chopper — Integrated braking unit for fast deceleration and precise stopping without external hardware
  • Rugged & Reliable — Conformal-coated PCB, independent air duct design, and wide -10°C to 50°C operating temperature range
📐 Technical Parameters
Model CS710-4T7.5GB
Rated Power 7.5 kW / 10 HP
Input Voltage 3-Phase 380 – 480V AC (-15% ~ +10%)
Input Frequency 50 / 60 Hz (±5%)
Output Voltage 0 – Input Voltage
Output Frequency 0 – 400 Hz
Rated Output Current 17 A
Overload Capacity 150% for 60s / 180% for 10s
Control Modes SVC (Sensorless Vector Control), V/F
Starting Torque 150% at 0.5 Hz (SVC mode)
Speed Regulation Range 1:100 (SVC)
Speed Accuracy ±0.5% (SVC)
Braking Unit Built-in braking chopper
Communication RS485 Modbus RTU
Cooling Method Forced air cooling, independent air duct
Protection Rating IP20
Ambient Temperature -10°C ~ +50°C (derating above 40°C)
Altitude ≤1000 m (derating above)
Humidity ≤95% RH, non-condensing
Dimensions (W*H*D) Approx. 150 * 250 * 170 mm
Weight Approx. 4.5 kg
Certifications ✔ CE ✔ RoHS
Tag:

Compact Frequency Inverter

Vector Frequency Inverter

Variable Frequency Drive VFD
