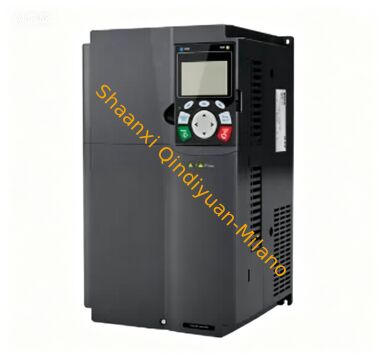

INVT GD350-2R2G-4 Multi-Function Vector Inverter Heavy-Duty Motor Drive

The INVT GD350-2R2G-4 is a 2.2kW multi-function vector inverter from INVT's flagship GD350 series, delivering heavy-duty (G-type) performance with smart control intelligence for small to mid-size industrial drive applications. Built on an open-platform architecture with integrated PLC functionality, the GD350-2R2G-4 provides high starting torque, precise speed regulation, and robust overload capacity in a compact footprint. Supporting a wide range of motor types and communication protocols, it is the versatile drive solution for small machine tools, winding/unwinding systems, packaging, conveyors, textile machinery, mixers, compressors, and general industrial automation where intelligent programmable control and reliable performance are required.

• Multi-Function Vector Inverter — 2.2kW G-type rating with 150% overload for 60s and 180% for 3s; supports V/F, open-loop vector (SVC), closed-loop vector (FVC), PMSM sensorless, and torque control modes for demanding applications
• Heavy-Duty Motor Drive — 150% starting torque at 0.5Hz (SVC) and 180% at 0Hz (FVC); 1:100 speed range (SVC), 1:1000 (FVC); designed for constant torque applications requiring high breakaway torque
• Smart PLC Performance — Built-in programmable logic controller with function blocks, timers, counters, comparators, and math operations enables standalone intelligent machine control without external PLC
• Multi-Motor Compatibility — Drives induction motors (IM), permanent magnet synchronous motors (PMSM), synchronous reluctance motors, and high-speed spindle motors with automatic parameter identification
• Comprehensive Communication Suite — RS485 Modbus RTU standard; optional expansion cards for PROFIBUS-DP, PROFINET, EtherCAT, CANopen, DeviceNet, Ethernet/IP, and BACnet MS/TP for flexible network integration
• Advanced Process Control — Built-in PID controller with sleep/wake function, multi-pump constant pressure logic, tension control with taper calculation for winding/unwinding, master/slave synchronization, and spindle positioning
• Robust Protection & Reliability — Independent air duct thermal design with coated PCBA (3C3 environment rated); comprehensive protection including input/output phase loss, PTC motor protection, and short-circuit to ground
• Flexible I/O Configuration — 7 multi-function DI, 3 AI, 3 relay outputs, 2 transistor outputs, 2 AO; supports encoder feedback, pulse I/O, and resolver interface for full closed-loop systems
