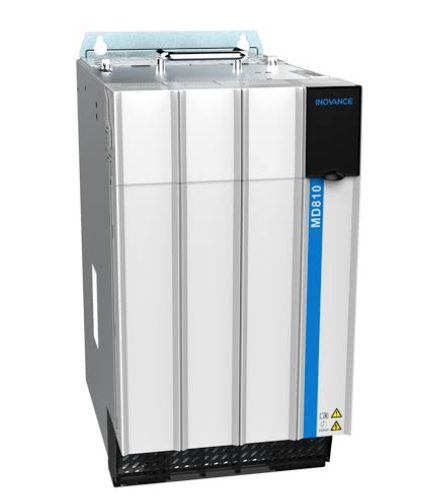

INOVANCE MD810-50M4T G200 Precision Multi-Axis Drive EtherCAT Synchronized Motion

The MD810-50M4T G200 series is INOVANCE’s high-precision multi-axis servo drive platform, rated at 50A with support for up to 4 servo axes in a single compact unit with 220V class three-phase input. Built on a modular common DC-bus architecture with EtherCAT real-time communication, this series delivers exceptional motion accuracy, seamless multi-axis synchronization and advanced adaptive control across a range of power variants to match diverse precision automation requirements. It is ideally suited for semiconductor manufacturing, high-precision laser processing, CNC grinding and EDM machines, robotic assembly cells, automated optical inspection systems, multi-axis packaging and palletizing equipment, and AGV drive platforms where sub-micron positioning, flawless multi-axis interpolation and deterministic real-time synchronization are mission-critical quality and throughput requirements.

• Precision Multi-Axis Drive — 50A rated output with 24-bit absolute encoder support and advanced model-based feed-forward control delivers sub-micron positioning repeatability and ultra-low velocity ripple across all series variants.
• EtherCAT Synchronized Motion — Deterministic EtherCAT bus with sub-millisecond cycle time, electronic camming, gearing and multi-axis interpolation functions enable flawless real-time coordination of up to 4 axes.
• Modular Servo Platform — Common DC-bus book-type modular architecture with shared power supply enables flexible configuration, simplified spare parts management and up to 30% cabinet space reduction versus discrete drives.
• Adaptive Resonance Suppression — Five-channel adaptive notch filters with automatic mechanical frequency identification continuously adapt to changing load dynamics across the full operating range.
• Intelligent Auto-Tuning — One-touch inertia identification with automated control loop and gain scheduling optimization reduces commissioning time while ensuring optimal dynamic performance for each axis.
• Integrated Functional Safety — Built-in STO (SIL3/PLe), SS1 and SS2 safety functions as standard across all variants, simplifying machine safety architecture and ensuring compliance with ISO 13849-1 and IEC 61508.

Semiconductor Wafer Handling & Inspection, High-Precision Laser Cutting & Marking, CNC Grinding & EDM Machines, Robotic Assembly & Pick-and-Place Cells, Automated Optical Inspection (AOI) Systems, Multi-Axis Packaging & Palletizing Equipment, AGV Drive & Steering Platforms, Medical Device & Laboratory Automation, Precision Metrology & 3D Measurement Systems, Electronic Component Placement & SMT Lines.
