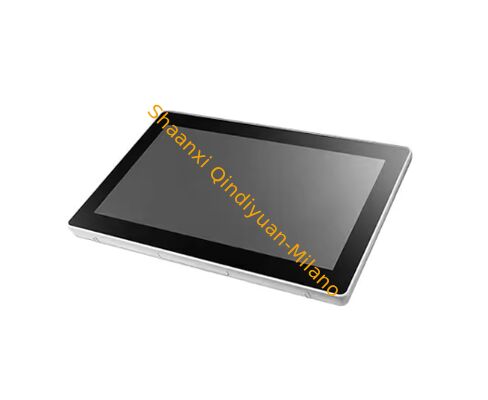

Advantech UTC-315DR-B2B1E/4G/500G 15.6" Ubiquitous Touch Computer with Intel® Celeron® J1900 Processor

1
MOQ
Negotiable
Price
Advantech UTC-315DR-B2B1E/4G/500G 15.6" Ubiquitous Touch Computer with Intel® Celeron® J1900 Processor
Features Gallery Product Description Chat Now
Features
Specifications
Productname: Industrial Control Automation
Certifications: CE, UL, RoHS
Mounting Type: DIN Rail / Panel Mount
Power Supply: 24V DC / 110V AC / 220V AC
Integrationcapability: Compatible With MES, ERP Systems
Power Supply Voltage: 100 – 240VAC.
Inputtype: Digital Input, Analog Input
Application: Manufacturing, Process Control, Robotics
Userinterface: HMI Touchscreen / Remote Monitoring
Actual Price: Based On Offer
Numberofoutputchannels: 16
Compatibility: SCADA Systems, HMI Panels
Safetystandardscompliance: IEC 61508, ISO 13849
Inputvoltagerange: 100-240V AC
Warranty: 1-3 Years Manufacturer Warranty
Highlight:

15.6 inch industrial touch computer

,

Ubiquitous touch computer with Celeron J1900

,

Industrial automation PC with 4G 500G
Basic Infomation
Place of Origin: china
Brand Name: Advantech
Model Number: UTC-315DR-B2B1E/4G/500G
Document: ipc-610mb-l_ds.pdf
Payment & Shipping Terms
Packaging Details: pieces
Delivery Time: 5-8days
Payment Terms: T/T
Product Description

UTC-315DR-ATB0E

UTC-315DP-ATB0E

UTC-315DR-ATB0E UTC-315DP-ATB0E
Color
Color Black Black
Display
Size 15.6" TFT LCD 15.6" TFT LCD
Max. Resolution HD (1366 x 768) ; Optional FHD (1920 x 1080) HD (1366 x 768) ; Optional FHD (1920 x 1080)
Brightness 220 cd/m² 220 cd/m²
Touch Screen
Type Analog Resistive 5-wire Projected Capacitive
Processor System
CPU Intel® Celeron® J1900 Intel® Celeron® J1900
RAM 4GB DDR3L 4GB DDR3L
Storage 1 x 2.5 internal SATA HDD bay 1 x 2.5 internal SATA HDD bay
OS Support
OS Support Win 10 IoT Enterprise 64bit/ Linux/ Android 6.0 Win 10 IoT Enterprise 64bit/ Linux/ Android 6.0
I/O Interface
Serial Port 1 x COM (RS-232) ; 1 x COM (RS-232/422/485) 1 x COM (RS-232) ; 1 x COM (RS-232/422/485)
USB Port 5 x USB 2.0, 1 x USB 3.0 5 x USB 2.0, 1 x USB 3.0
Ethernet 2 x Gigabit Ethernet (RJ-45) 2 x Gigabit Ethernet (RJ-45)
Output 1 x HDMI 1 x HDMI
Cash Drawer 1 x RJ11 1 x RJ11
Audio 1 x Line-out, 1 x Mic-in 1 x Line-out, 1 x Mic-in
Speaker 2 x 1W Speaker 2 x 1W Speaker
Extendable Slot Full-size MiniPCIe/mSATA Full-size MiniPCIe/mSATA
Environment
Operating Temperature 0~40° C 0~40° C
Operating Humidity 10 ~ 95% @ 40°C non-condensing 10 ~ 95% @ 40°C non-condensing
System Protection IP65 front panel IP65 front panel
Vibration 0.5G 0.5G
Shock 10G peak acceleration (11 msec. duration) 10G peak acceleration (11 msec. duration)
Power
Input Rating 12 V/7 A (84W ITE Adapter)
*Optional 12-30V		 12 V/7 A (84W ITE Adapter)
*Optional 12-30V
