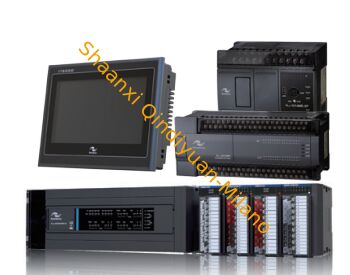

INOVANCE H3U‑3232MT‑XP

32DI 32DO Transistor Motion PLC｜AC 100‑240VAC｜NPN/PNP

1. Product Overview

The INOVANCE H3U‑3232MT‑XP is a high‑performance motion‑control programmable logic controller from the H3U series. It comes with 32 digital inputs and 32 differential transistor outputs, supporting both NPN and PNP sensor input modes. Powered by AC 100‑240VAC, it executes logic processing, multi‑axis high‑speed positioning, servo/stepper motion control, signal interlock and data acquisition for automated machinery. Equipped with multiple industrial communication ports, it easily connects to HMI, servo drives and field sensors. Widely applied to mid‑size automation machines requiring medium‑volume I/O points and motion‑control capability.

2. Core Advantages & Key Features

• 32‑Point Local I/O Configuration 32 digital inputs + 32 differential transistor outputs; compatible with NPN / PNP sensor input, differential high‑speed pulse output to drive servo and stepper systems.
• Powerful Multi‑axis Motion Control 5‑channel 200kHz high‑speed pulse output, supporting S‑curve acceleration & deceleration, electronic cam, linear / circular interpolation for multi‑axis positioning equipment.
• Diversified Industrial Communication Built‑in 100Mbps Ethernet Modbus‑TCP, RS485 Modbus‑RTU, CANopen / CANlink field‑bus and USB programming port, realizing seamless data exchange with peripheral automation devices.
• High‑speed Processing Performance Basic instruction execution speed 100 ns; 64 k‑steps program memory; battery‑free flash storage for program and recipe data.
• Massive I/O Expansion Capacity Supports local & remote extension modules, maximum up to 7936 remote digital I/O points for equipment function upgrade.
• Wide‑voltage AC Power Supply AC 100‑240 VAC wide‑range input, adapts to unstable workshop power grid; built‑in 24VDC sensor power output.
• Reliable Industrial‑grade Protection Over‑current, over‑voltage and short‑circuit protection, excellent anti‑interference performance for cabinet‑mount installation.
• User‑friendly Programming Tool Programmed by AutoShop software, supports ladder‑diagram and multiple programming languages for convenient development and maintenance.

3. Technical Parameters

4. Application Industries & Typical Scenarios

Applicable Industries

• Packaging Machinery
• Woodworking Equipment
• Material Handling & Conveyor Lines
• Textile Machinery
• Printing Equipment
• Automated Assembly Equipment
• General Factory Automation

Typical Equipment

Medium‑size automatic assembly machine, packaging production‑line controller, medium‑scale conveyor system, wood‑working processing machine, sorting equipment, custom automation machinery with medium I/O quantity.

5. Packing & Logistics Reference

• Net weight: 1.70 kg / pc
• Single carton gross weight: 1.95 kg / pc
• Original brand new, individual export carton, 12‑month manufacturer warranty.
