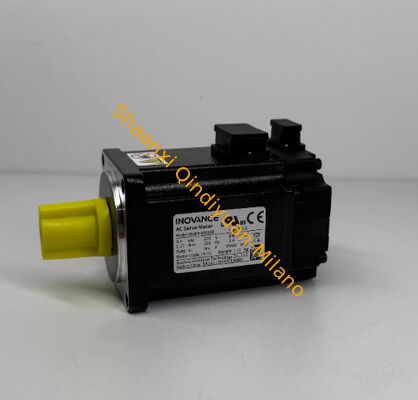

Home /Products/Servo Systems/INOVANCE MS1H2,MS1H2-50C30CB-T331R,SV630P/SV630N/SV660N,1.0kW,3PH AC220V±15%,3000rpm,6000rpm,3.18Nm

INOVANCE MS1H2,MS1H2-50C30CB-T331R,SV630P/SV630N/SV660N,1.0kW,3PH AC220V±15%,3000rpm,6000rpm,3.18Nm

1pcs
MOQ
Negotiable
Price
INOVANCE MS1H2,MS1H2-50C30CB-T331R,SV630P/SV630N/SV660N,1.0kW,3PH AC220V±15%,3000rpm,6000rpm,3.18Nm
Features Gallery Product Description Chat Now
Features
Specifications
Actual Value: Negotiabled Price
Point: 14 (8DI+6DO)
Port: SATA3
Max Frequency: 300HZ
Protect Feature: Totally Enclosed,Waterproof
Ratedcurrent: 10A
Power Range: 0.4-250KW
Peakcurrent: 30A
Operatingtemperature: -20°C To 60°C
Protection Features: Overload, Overvoltage, Overtemperature
Carrier Frequency: 0.5khz-16khz
Protectionrating: IP20 To IP65
Input Points: 36DI
Control Type: FVC
Payment: T/T/Paypal/Western Union/Money Gram
Highlight:

INOVANCE MS1H2 servo drive

,

3PH AC220V servo motor

,

SV660N 1.0kW servo drive
Basic Infomation
Place of Origin: China
Brand Name: INOVANCE
Model Number: MS1H2-50C30CB-T331R
Document: MS1-R.pdf
Payment & Shipping Terms
Delivery Time: 1WEEK
Payment Terms: T/T
Supply Ability: 10PCS 1WEEK
Product Description
Product Specifications
Brand Product Series Motor Model Matched Driver Rated Power Rated Voltage Rated Speed Max Speed Rated Torque Max Torque Encoder Type Encoder Resolution Protection Class Insulation Class Cooling Method Key Features Net Weight
Inovance MS1H1 MS1H1-05C30CB-T331R SV630P/SV630N/SV660N 0.1kW 1PH AC220V±15% 3000rpm 7000rpm 0.32Nm 0.96Nm Incremental 20-bit IP65 Class F Natural Cooling Low Inertia; 3x Overload; Cost-effective 0.35kg
Inovance MS1H1 MS1H1-10C30CB-T331R SV630P/SV630N/SV660N 0.2kW 1PH AC220V±15% 3000rpm 7000rpm 0.64Nm 1.92Nm Incremental 20-bit IP65 Class F Natural Cooling High Response; 0.1ms Dynamic Time 0.42kg
Inovance MS1H1 MS1H1-20C30CB-T331R SV630P/SV630N/SV660N 0.4kW 1PH AC220V±15% 3000rpm 7000rpm 1.27Nm 3.81Nm Incremental 20-bit IP65 Class F Natural Cooling Double PG Closed Loop 0.58kg
Inovance MS1H1 MS1H1-40C30CB-T331R SV630P/SV630N/SV660N 0.75kW 1PH AC220V±15% 3000rpm 7000rpm 2.39Nm 7.17Nm Incremental 20-bit IP65 Class F Forced Air Cooling GB30253-1 Energy Efficiency 0.85kg
Inovance MS1H2 MS1H2-50C30CB-T331R SV630P/SV630N/SV660N 1.0kW 3PH AC220V±15% 3000rpm 6000rpm 3.18Nm 9.54Nm Incremental 20-bit IP65 Class F Forced Air Cooling Medium Inertia; Low Vibration 1.2kg
Inovance MS1H2 MS1H2-75C30CB-T331R SV630P/SV630N/SV660N 1.5kW 3PH AC220V±15% 3000rpm 6000rpm 4.77Nm 14.31Nm Incremental 20-bit IP65 Class F Forced Air Cooling High Rigidity (36 Level) 1.8kg
Inovance MS1H2 MS1H2-10C30CB-T331R SV630N/SV660N 2.0kW 3PH AC220V±15% 3000rpm 6000rpm 6.37Nm 19.11Nm Incremental 20-bit IP65 Class F Forced Air Cooling External Brake Resistor Port 2.5kg
Inovance MS1H4 MS1H4-20B30CB-T331R SV630N/SV660N 0.2kW 3PH AC220V±15% 3000rpm 7000rpm 0.64Nm 1.92Nm Incremental 20-bit IP67 Class F Natural Cooling 40mm Frame; Ultra-compact 0.45kg
Inovance MS1H4 MS1H4-40B30CB-T331R SV630N/SV660N 0.4kW 3PH AC220V±15% 3000rpm 7000rpm 1.27Nm 3.81Nm Incremental 20-bit IP67 Class F Natural Cooling High Precision Positioning; T331R Encoder 0.62kg
Inovance MS1H4 MS1H4-75B30CB-T331R SV630N/SV660N 0.75kW 3PH AC220V±15% 3000rpm 7000rpm 2.39Nm 7.17Nm Incremental 20-bit IP67 Class F Forced Air Cooling 7000rpm High Speed 0.98kg
Inovance MS1H4 MS1H4-10B30CB-T331R SV660N/SV660ND 1.0kW 3PH AC380V±15% 3000rpm 6000rpm 3.18Nm 9.54Nm Absolute 23-bit IP67 Class F Forced Air Cooling EtherCAT Sync; 15ns Error 1.5kg
