Home /Products/Servo Systems/INOVANCE SV630P SV630PS7R6I 1.0kW 3PH AC220V(±15%) 7.6A Modbus RTU Position/Speed/Torque IP20

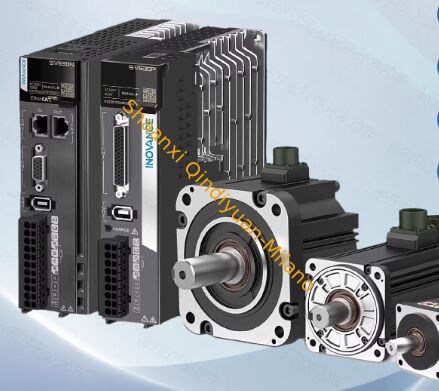

INOVANCE SV630P SV630PS7R6I 1.0kW 3PH AC220V(±15%) 7.6A Modbus RTU Position/Speed/Torque IP20

1pcs
MOQ
Negotiable
Price
INOVANCE SV630P SV630PS7R6I 1.0kW 3PH AC220V(±15%) 7.6A Modbus RTU Position/Speed/Torque IP20
Features Gallery Product Description Chat Now
Features
Specifications
Protectionclass: IP20
Cooling Method: Fan Cooling
Control Type: Closed Loop Vector Control
Condition: Original New
Overloadcapacity: 150% For 60 Seconds
Series: D3-S4610
Resolution Ratio: NO
Actual Value: Negotiabled Price
Controlmode: Position/Speed/Torque
Mounting Type: DIN Rail, Panel Mount
Points: 40 (24DI+16DO)
Inputvoltage: 200-240V AC
Max Frequency: 300HZ
Shipping Methods: DHL/FEDEX/EMS/TNT
Protect Feature: Totally Enclosed,Waterproof
Highlight:

INOVANCE SV630P servo drive

,

3PH AC220V servo drive

,

Modbus RTU servo drive
Basic Infomation
Place of Origin: China
Brand Name: INOVANCE
Model Number: SV630PS7R6I
Document: inovance-servo-drive-manual...30.pdf
Payment & Shipping Terms
Delivery Time: 1WEEK
Payment Terms: T/T
Supply Ability: 10PCS 1WEEK
Product Description
Product Specifications
Brand Product Series Model Type Rated Power Rated Input Voltage Rated Output Current Communication Protocol Control Mode Speed Loop Bandwidth Encoder Resolution Protection Class Operating Temperature Storage Temperature Mounting Type Net Weight Dimensions (WxHxD) Key Features
Inovance SV630P SV630PS1R6I 0.2kW 1PH AC220V(±15%) 1.6A Modbus RTU Position/Speed/Torque 2kHz 18-bit Incremental IP20 0~50℃ -20~70℃ 35mm DIN Rail 0.6kg 80x150x130mm Basic Type; Inertia Auto-tuning; Vibration Suppression
Inovance SV630P SV630PS2R8I 0.4kW 1PH AC220V(±15%) 2.8A Modbus RTU Position/Speed/Torque 2kHz 18-bit Incremental IP20 0~50℃ -20~70℃ 35mm DIN Rail 0.7kg 80x150x130mm Built-in Dynamic Brake; Adaptive Stiffness
Inovance SV630P SV630PS5R5I 0.75kW 1PH AC220V(±15%) 5.5A Modbus RTU Position/Speed/Torque 2kHz 18-bit Incremental IP20 0~50℃ -20~70℃ 35mm DIN Rail 0.9kg 90x160x140mm STO Safety Function; 5-digit LED Display
Inovance SV630P SV630PS7R6I 1.0kW 3PH AC220V(±15%) 7.6A Modbus RTU Position/Speed/Torque 2kHz 18-bit Incremental IP20 0~50℃ -20~70℃ 35mm DIN Rail 1.2kg 100x170x150mm External Brake Resistor Port; High Vibration Resistance
Inovance SV630N SV630NS1R6I 0.2kW 1PH AC220V(±15%) 1.6A EtherCAT Position/Speed/Torque 2kHz 18-bit Absolute IP20 0~50℃ -20~70℃ 35mm DIN Rail 0.65kg 80x150x130mm 1ms 100-axis Sync; 15ns Sync Error
Inovance SV630N SV630NS2R8I 0.4kW 1PH AC220V(±15%) 2.8A EtherCAT Position/Speed/Torque 2kHz 18-bit Absolute IP20 0~50℃ -20~70℃ 35mm DIN Rail 0.75kg 80x150x130mm Dual RJ45 EtherCAT Port; Bus Redundancy
Inovance SV630N SV630NS5R5I 0.75kW 1PH AC220V(±15%) 5.5A EtherCAT Position/Speed/Torque 2kHz 18-bit Absolute IP20 0~50℃ -20~70℃ 35mm DIN Rail 0.95kg 90x160x140mm Battery Box for Absolute Encoder; 3-year Battery Life
Inovance SV630N SV630NT3R5I 1.5kW 3PH AC380V(±15%) 3.5A EtherCAT Position/Speed/Torque 2kHz 18-bit Absolute IP20 0~50℃ -20~70℃ 35mm DIN Rail 1.5kg 100x170x150mm 380V High Voltage; 20.8A Max Current
Inovance SV630N SV630NT021I 7.5kW 3PH AC380V(±15%) 20.8A EtherCAT Position/Speed/Torque 2kHz 18-bit Absolute IP20 0~50℃ -20~70℃ 35mm DIN Rail 3.2kg 140x200x180mm Heavy Duty; High Precision Positioning
Inovance SV630ND SV630NDS2R8I 2×0.4kW 1PH AC220V(±15%) 2.8A×2 EtherCAT Position/Speed/Torque 2kHz 18-bit Absolute IP20 0~50℃ -20~70℃ 35mm DIN Rail 1.0kg 100x170x150mm Dual-axis Drive; 39% Space Saving; Zero-distance Mounting
Inovance SV630ND SV630NDS5R5I 2×0.75kW 1PH AC220V(±15%) 5.5A×2 EtherCAT Position/Speed/Torque 2kHz 18-bit Absolute IP20 0~50℃ -20~70℃ 35mm DIN Rail 1.2kg 100x170x150mm SIL3 STO; Adaptive Limiter; One-click Tuning
