Home /Products/Industrial Network Equipment/Siemens 6GK5004-2BF00-1AB2 SCALANCE XB004-2 LD Unmanaged IE Switch 4x RJ45 + 2x SC (Single mode Fiber)

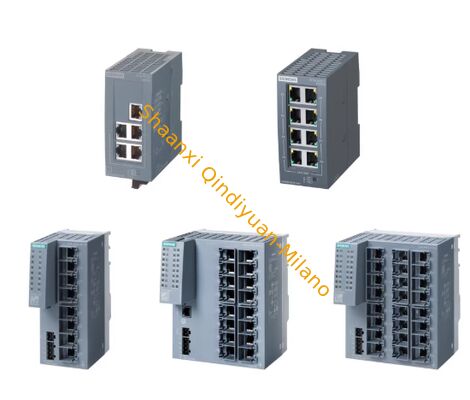

Siemens 6GK5004-2BF00-1AB2 SCALANCE XB004-2 LD Unmanaged IE Switch 4x RJ45 + 2x SC (Single mode Fiber)

1pcs
MOQ
Negotiable
Price
Siemens 6GK5004-2BF00-1AB2 SCALANCE XB004-2 LD Unmanaged IE Switch 4x RJ45 + 2x SC (Single mode Fiber)
Features Gallery Product Description Chat Now
Features
Specifications
Compliance Standards: CE, FCC, RoHS
Operating Temperature Range: -40°C To 75°C
Mtbf (Mean Time Between Failures): Over 1,000,000 Hours
Led Indicators: Power, Link/Activity, Speed
Weight: 0.8 To 1.5 Kg
Data Transfer Rate: 10/100/1000 Mbps
Number Of Ports: 8 To 24
Ingress Protection Rating: IP40 To IP67
Dimensions: 150mm X 100mm X 50mm
Network Protocols Supported: TCP/IP, Modbus TCP, EtherNet/IP
Enclosure Material: Aluminum Alloy
Mounting Type: DIN Rail, Wall Mount
Port Types: Ethernet, Fiber Optic
Power Supply: 12-48V DC
Highlight:

Siemens SCALANCE XB004-2 unmanaged switch

,

industrial Ethernet switch with RJ45 ports

,

SCALANCE XB004-2 fiber optic switch
Basic Infomation
Place of Origin: Germany
Brand Name: Siemens
Model Number: 6GK5004-2BF00-1AB2
Document: 0900766b8168edbc.pdf
Payment & Shipping Terms
Delivery Time: 1WEEK
Payment Terms: T/T
Supply Ability: 20PCS 1WEEK
Product Description
SCALANCE XB004-2 LD Unmanaged Industrial Ethernet Switch
Product Overview
The Siemens SCALANCE XB004-2 LD is a robust unmanaged industrial Ethernet switch featuring 4 RJ45 ports and 2 single-mode fiber optic ports. Designed for reliable network connectivity in industrial environments, this switch supports long-distance fiber transmission up to 10km per port.
Technical Specifications
Product Series SCALANCE XB004-2 LD
Part Number 6GK5004-2BF00-1AB2
Switch Type Unmanaged Industrial Ethernet Switch
Port Configuration 4x RJ45 (Twisted Pair) + 2x SC (Single-mode Fiber)
Transmission Rate 10/100 Mbit/s
Power Supply 24V AC/DC (19.2~28.8V DC)
Rated Power Loss 4.0W
Dimensions (WxHxD) 45mm x 100mm x 87mm
Net Weight 0.160kg
Protection Class IP20
Mounting Type 35mm DIN Rail / Wall Mount
Operating Temperature -10°C to +60°C
Key Features
  • Dual long-distance single-mode fiber optic ports
  • Maximum fiber distance: 10km per port
  • LED diagnostics for easy monitoring
  • Supports 1024 MAC addresses
  • Industrial-grade construction for harsh environments
  • Plug & Play operation for easy installation
  • Compact design suitable for space-constrained installations
Application Benefits
This industrial Ethernet switch is ideal for extending network connectivity over long distances in manufacturing, process automation, and industrial control systems. The dual fiber ports provide redundancy and extended reach, while the rugged design ensures reliable operation in demanding industrial conditions.
