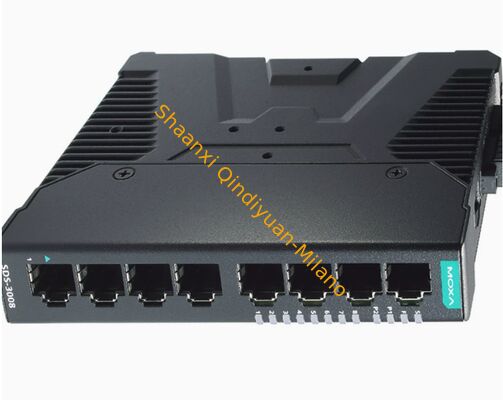

MOXA SDS-3008-T Compact Industrial Network Equipment Layer 2 Managed Smart Ethernet Switch

1pcs
MOQ
Negotiable
Price
MOXA SDS-3008-T Compact Industrial Network Equipment Layer 2 Managed Smart Ethernet Switch
Features Gallery Product Description Chat Now
Features
Specifications
Highlight:

Managed Smart Ethernet Switch

,

Compact Industrial Network Equipment

,

SDS-3008-T Industrial Network Equipment
Basic Infomation
Place of Origin: Taiwan
Brand Name: MOXA
Model Number: SDS-3008-T
Document: SDS-3008-T.pdf
Payment & Shipping Terms
Delivery Time: 5-7work day
Payment Terms: T/T
Supply Ability: 10pcs 1week
Product Description
Product Overview
Model NumberSDS-3008-T
Product Name"Compact Industrial Smart Ethernet Switch"
Product SeriesSDS-3008 Series
Product TypeLayer 2 Managed Ethernet Switch
ManufacturerMoxa
General Information
Hardware Function LevelStandard
Fan/FanlessFanless design
Warranty Period5 years
MTBF3,483,278 hours (Telcordia/GB standard)
Ethernet Interface
10/100BaseT(X) Ports (RJ45 connector)8 ports
Features
  • Auto-negotiation
  • full/half-duplex
  • auto MDI/MDI-X
Standards Supported
  • IEEE 802.3 (10BaseT)
  • IEEE 802.3u (100BaseT(X))
  • IEEE 802.3x (flow control)
  • IEEE 802.1D-2004 (Spanning Tree Protocol)
  • IEEE 802.1w (Rapid Spanning Tree Protocol)
  • IEEE 802.1Q (VLAN Tagging)
  • IEEE 802.1p (Class of Service)
Switch Properties
Jumbo Frame Size9.6 KB
MAC Table Size8K entries
Maximum VLANs8
VLAN ID RangeVID 1 to 4094
Packet Buffer Size3 Mbits
Software Features
Industrial Protocols
  • EtherNet/IP
  • Modbus TCP
  • PROFINET IO Device
  • MECHATROLINK-4
Management Features
  • Back Pressure Flow Control
  • DHCP Client
  • Fiber check
  • Flow control
  • IPv4/IPv6
  • LLDP
  • Port Mirroring
  • RMON
  • SNMP Inform
  • SNMPv1/v2c/v3
  • Syslog
Redundancy Protocols
  • RSTP
  • STP
  • MRP
Security Features
  • Broadcast storm protection
  • HTTPS/SSL
  • SNMPv3
  • Port Lock
  • Trust access control
Time Management
  • NTP Server/Client
  • SNTP
Filtering
  • 802.1Q VLAN
Rotary Switch Configuration (Industrial Profile)
0No function enabled (Default)
1PROFINET profile
2PROFINET profile + DHCP client
3EtherNet/IP profile
4EtherNet/IP profile + DHCP client
5Modbus TCP profile
6Modbus TCP profile + DHCP client
7MECHATROLINK-4 profile
8-9Reserved
LED Indicators
PWR1, PWR2Power status
STATESystem status
FAULTFault indication
10/100MPort speed indication
USB Interface
Storage PortUSB Type A (for ABC-02 USB stick)
Input/Output Interface
Alarm Contact1 relay output (1 A @ 24 VDC)
Digital Input1 channel (+13 to +30 V = state 1; -30 to +3 V = state 0)
ButtonsReset button
Power Parameters
Power Connection2 removable 4-contact terminal blocks (redundant dual inputs)
Input Voltage12-48 VDC
Operating Voltage Range9.6 to 60 VDC
Input Current0.76 A (max. @12-48 VDC)
Power Consumption5.54 W (max.)
Protection
  • Overload current protection
  • reverse polarity protection
Physical Characteristics
HousingMetal (IP40 rated)

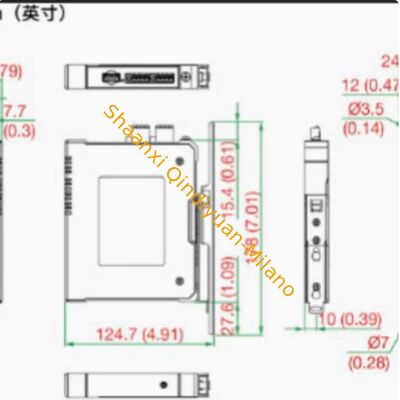

Dimensions (W×H×D)20 mm × 135 mm × 111 mm (0.79×5.32×4.37 in)
Weight427 g (0.94 lb)
Mounting Options
  • DIN-rail mounting
  • wall mounting (with optional kit)
Environmental Limits
Operating Temperature-40°C to 75°C (-40°F to 167°F)
Storage Temperature-40°C to 85°C (-40°F to 185°F)
Relative Humidity5% to 95% (non-condensing)
Standards and Certifications
EMC
  • EN 55032/35
  • EN 61000-6-2/-6-4
EMI
  • CISPR 32
  • FCC Part 15B Class A
EMS
  • IEC 61000-4-2 (ESD): Contact 6 kV, Air 8 kV
  • IEC 61000-4-3 (RS): 80 MHz-800 MHz: 10 V/m; 800 MHz-1 GHz: 20 V/m
  • IEC 61000-4-4 (EFT): Power 2 kV, Signal 2 kV
  • IEC 61000-4-5 (Surge): Power 2 kV, Signal 2 kV (1.2/50 μs), 1 kV (10/700 μs)
  • IEC 61000-4-6 (CS): 10 V
Safety
  • EN IEC 62368-1
  • UL 61010-2-201
VibrationIEC 60068-2-6
ShockIEC 60068-2-27
FreefallIEC 60068-2-32
Typical Applications
Applications
  • Industrial automation systems
  • Machine-to-machine communication
  • Factory automation
  • SCADA/HMI systems integration
  • Industrial networks requiring high reliability
