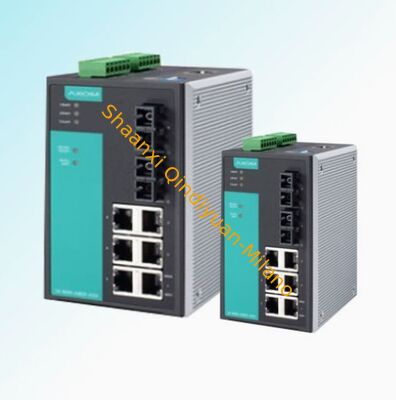

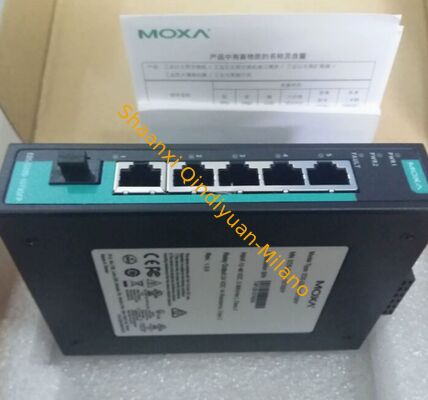

Robust 16 Port Unmanaged Industrial Ethernet Switch MOXA EDS-316-MM-SC

1pcs
MOQ
Negotiable
Price
Robust 16 Port Unmanaged Industrial Ethernet Switch MOXA EDS-316-MM-SC
Features Gallery Product Description Chat Now
Features
Specifications
Number_of_Inputs: 14
Color: Normal
Output Typt: Relay
Output Method: Transistor
Mounting_Type: DIN Rail
Weight: 300 G
Supply Voltage Type: AC
Input Points: 36 Points.
Model: S7-1200
Part Type: Sysmac CPM2A
Total Points: 60 Points.
Manufacturer: Siemens
Dimensions: 90 X 70 X 75 Mm
Power Supply Voltage: 100 – 240VAC.
Part No: 5009-421
Highlight:

16 Port Industrial Ethernet Switch

,

Robust Unmanaged Industrial Ethernet Switch

,

MOXA EDS-316-MM-SC
Basic Infomation
Place of Origin: Taiwan
Brand Name: MOXA
Model Number: EDS-316-MM-SC
Document: EDS-316-MM-SC.pdf
Payment & Shipping Terms
Delivery Time: 5-7work day
Payment Terms: T/T
Supply Ability: 10pcs 1week
Product Description
MOXA EDS-316-MM-SC 16-Port Unmanaged Industrial Ethernet Switch
Product Overview

The EDS-316-MM-SC is a robust 16-port unmanaged industrial Ethernet switch designed for reliable network connectivity in demanding industrial environments. This Layer 2 switch features 14 copper ports and 2 multi-mode fiber ports for flexible network deployment.

Key Specifications
Manufacturer Moxa
Product Series EDS-316 Series
Product Type Layer 2 Unmanaged Ethernet Switch
Warranty Period 5 years
MTBF 1,904,659 hours (MIL-HDBK-217F standard)
Ethernet Interface
10/100BaseT(X) Ports 14 ports (RJ45 connector)
100BaseFX Ports 2 ports (Multi-mode SC connector)
Total Ports 16
Copper Port Features
  • Auto-negotiation
  • Full/half-duplex
  • Auto MDI/MDI-X
Standards Supported
  • IEEE 802.3 (10BaseT)
  • IEEE 802.3u (100BaseT(X) and 100BaseFX)
  • IEEE 802.3x (flow control)
Optical Fiber Specifications
Fiber Type Multi-mode (OM1, 50/125 µm)
Wavelength 1300 nm
TX Power Range -10 to -20 dBm
RX Sensitivity -3 to -32 dBm
Link Budget 12 dB
Typical Transmission Distance 4 km
Switch Properties
Packet Buffer Size 1.25 Mbits
MAC Table Size 4K entries
Processing Type Store and Forward
Broadcast Storm Protection Supported
Power Parameters
Input Voltage 12/24/48 VDC (redundant dual inputs)
Operating Voltage Range 9.6 to 60 VDC
Input Current
  • @12 VDC: 0.86 A
  • @24 VDC: 0.39 A
  • @48 VDC: 0.2 A
Protection Features
  • Reverse polarity protection
  • Overload current protection
Physical Characteristics
Housing Metal (IP30 rated)
Dimensions (W*H*D) 80.1 mm * 135 mm * 105 mm (3.15*5.31*4.13 in)
Weight 1140 g (2.52 lb)
Mounting Options
  • DIN rail mounting
  • Wall mounting (with optional kit)
Environmental Limits
Operating Temperature -10°C to 60°C (14°F to 140°F)
Storage Temperature -40°C to 85°C (-40°F to 185°F)
Relative Humidity 5% to 95% (non-condensing)
Typical Applications
  • Industrial automation systems
  • Machine-to-machine communication
  • Factory automation
  • Transportation systems
  • Power automation
