Home /Products/Industrial Network Equipment/MOXA EDS-G2005-EL 5 Port Industrial Network Equipment Unmanaged Full Gigabit Ethernet Switch

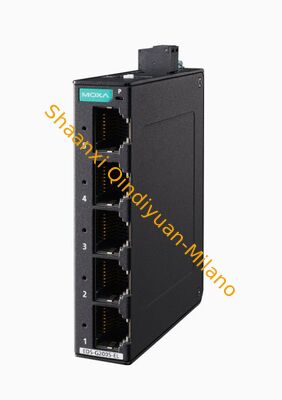

MOXA EDS-G2005-EL 5 Port Industrial Network Equipment Unmanaged Full Gigabit Ethernet Switch

1pcs
MOQ
Negotiable
Price
MOXA EDS-G2005-EL 5 Port Industrial Network Equipment Unmanaged Full Gigabit Ethernet Switch
Features Gallery Product Description Chat Now
Features
Specifications
Output Method: Relay
Power_Consumption: 5 W
Power Supply Voltage: AC240-360V.
Output Points: 20
Number_of_Inputs: 14
Part Type: Sysmac CPM2A
Color: Normal
Actual Price: Based On Offer
Model: S7-1200
Number_of_Outputs: 10
Application: Oil And Gas Factory
Actual Value: Negotiabled Price
Mounting_Type: DIN Rail
Condition: New Original With Sealed
Highlight:

MOXA EDS-G2005-EL

,

5 Port Industrial Network Equipment

,

Gigabit Ethernet Switch Unmanaged
Basic Infomation
Place of Origin: Taiwan
Brand Name: MOXA
Model Number: EDS-G2005-EL
Document: EDS-G2005-EL.pdf
Payment & Shipping Terms
Delivery Time: 5-7work day
Payment Terms: T/T
Supply Ability: 10PCS 1week
Product Description
Product Specifications
Parameter Value
Model Number EDS-G2005-EL
Product Name "5-Port Entry-level Unmanaged Full Gigabit Ethernet Switch with Metal Housing"
Product Series EDS-G2005-EL Series
Product Type Unmanaged Ethernet Switch
Manufacturer Moxa
General Information
Hardware Function Level Unmanaged
Fan/Fanless Fanless design
Warranty Period 5 years
MTBF 3,404,784 hours (Telcordia/GB standard)
Ethernet Interface
10/100/1000BaseT(X) Ports (RJ45 connector) 5 ports
Features Auto-negotiation, full/half-duplex, auto MDI/MDI-X
Standards Supported
  • IEEE 802.3 (10BaseT)
  • IEEE 802.3u (100BaseT(X))
  • IEEE 802.3ab (1000BaseT(X))
  • IEEE 802.3x (flow control)
  • IEEE 802.1p (Class of Service)
Switch Properties
Processing Type Store and Forward
MAC Table Size 4K entries
Packet Buffer Size 1.5 Mbits
Priority Queues 4 (via QoS)
DIP Switch Configuration
QoS (Quality of Service) Enable/Disable (via DIP switch)
BSP (Broadcast Storm Protection) Enable/Disable (via DIP switch)
LED Indicators
Power (P) Amber: Power is on
Link/Activity (L/A) Green: Port link is active; Blinking: Data transmission
Speed (1000/100/10) Green: Indicates port speed (1000/100/10 Mbps)
Power Parameters
Power Connection 1 removable 2-contact terminal block
Input Voltage 12/24/48 VDC (single input)
Operating Voltage Range 9.6 to 60 VDC
Input Current (Max.) 0.21 A
Power Consumption 2.5 W (Max.)
Protection Features Overload current protection, reverse polarity protection
Physical Characteristics
Housing Metal (IP40 rated)
Dimensions (W×H×D) 18 mm × 81 mm × 65 mm (0.71×3.19×2.56 in)
Weight 120 g (0.26 lb)
Mounting Options DIN rail mounting, wall mounting (with optional kit)
Environmental Limits
Operating Temperature Standard: -10°C to 60°C (14°F to 140°F) Wide Temp. (-T model): -40°C to 75°C (-40°F to 167°F)
Storage Temperature -40°C to 85°C (-40°F to 185°F)
Relative Humidity 5% to 95% (non-condensing)
Standards and Certifications
Safety EN 62368-1 (LVD)
EMC EN 61000-6-2/-6-4
EMI CISPR 32, FCC Part 15B Class A
EMS IEC 61000-4-2 (ESD: Contact 6 kV, Air 8 kV) IEC 61000-4-3 (RS: 80 MHz to 1 GHz: 20 V/m) IEC 61000-4-4 (EFT: Power 1 kV, Signal 1 kV) IEC 61000-4-5 (Surge: Power 1 kV, Signal 1 kV) IEC 61000-4-6 (CS: 150 kHz to 80 MHz: 3 V/m) IEC 61000-4-8 (PFMF)
Mechanical
  • Vibration: IEC 60068-2-6
  • Shock: IEC 60068-2-27
  • Freefall: IEC 60068-2-32
Typical Applications
  • Industrial automation systems
  • Machine-to-machine communication
  • Factory automation
  • Transportation systems
  • Power automation
  • AGV (Automated Guided Vehicle) systems
