Home /Products/Variable Frequency Drives VFD/Milano KV90S-0D75G-S2-PV 220V Single Phase Overall Dimensions：205H(mm) 105W(mm) 165D(mm) Mounting Dimensions：190A(mm) 90B(mm)

Milano KV90S-0D75G-S2-PV 220V Single Phase Overall Dimensions：205H(mm) 105W(mm) 165D(mm) Mounting Dimensions：190A(mm) 90B(mm)

1pcs
MOQ
Negotiable
Price
Milano KV90S-0D75G-S2-PV 220V Single Phase Overall Dimensions：205H(mm) 105W(mm) 165D(mm) Mounting Dimensions：190A(mm) 90B(mm)
Features Gallery Product Description Chat Now
Features
Specifications
Operatingtemperaturerange: -20°C To 60°C
Communicationprotocol: Modbus, Profibus, Ethernet/IP
Responsetime: Milliseconds
Outputtype: Relay, Transistor, Analog
Powersupply: 24V DC, 110V AC, 220V AC
Dimensions: Varies By Model
Type: Automation System
Controltype: Programmable Logic Controller (PLC), Distributed Control System (DCS)
Application: Manufacturing, Process Control, Robotics
Inputtype: Digital, Analog
Connectivity: Wi-Fi, Ethernet, Serial
Programminglanguage: Ladder Logic, Function Block, Structured Text
Safetystandards: IEC 61508, ISO 13849
Mountingtype: DIN Rail, Panel Mount
Productname: Industrial Control Automation
Highlight:

220V single phase VFD

,

Milano KV90S variable frequency drive

,

compact VFD with mounting dimensions
Basic Infomation
Place of Origin: China
Brand Name: Milano
Model Number: KV90S-0D75G-S2-PV
Document: Datesheet.xlsx
Payment & Shipping Terms
Delivery Time: 1week
Payment Terms: T/T
Supply Ability: 20PCS 1week
Product Description

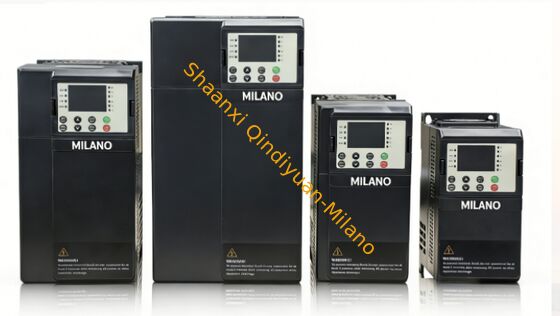

Milano KV90S-0D75G-S2-PV 220V Single Phase Variable Frequency Drive
Physical Dimensions
Overall Dimensions: 205mm (H) × 105mm (W) × 165mm (D)
Mounting Dimensions: 190mm (A) × 90mm (B)
Technical Specifications
Electrical Parameters by Model
Parameter -S2 (220V Single-Phase) -I (220V Single-Phase) -4 (380V Three-Phase)
Input Voltage Range (PV) 190-450V 190-450V 270-900V
Recommended Voc Voltage 300-400V 300-400V 450-700V
Optimum MPPT Voltage 310V 310V 540V
Maximum MPPT Efficiency up to 99% up to 99% up to 99%
Start-up Voltage 240V 240V 350V
Minimum Operating Voltage 190V 190V 270V
Input Voltage Range (AC) 1PH 220-240V(±10%) 1PH 220-240V(±10%) 3PH 380-480V(±10%)
Input Voltage Frequency 50/60Hz 50/60Hz 50/60Hz
Output Voltage Range 0-230V 0-230V 0-480V
Output Frequency Range 0-400Hz 0-400Hz 0-400Hz
Output Power Range 0.75-4kW 0.75-4kW 0.75-185kW
Rated Output Current by Power Rating
Power (kW) -S2 Current (A) -I Current (A) -4 Current (A)
0.75952.7
1.51373.7
2.218105
323137
428179
5.5402513
7.5603217
11754525
15906032
18.51107537
221509045
3017611060
3721015075
45176110
55210150
75176
90210
110250
132300
160340
185400
Performance Characteristics
Motor Compatibility: Single phase motor, Asynchronous motors, Permanent magnet synchronous motor
Control Modes: V/F control, Open-Loop Vector Control, Closed-Loop Vector Control
Overload Capacity: 150% of rated load for 60s; 180% overload capacity for 10s; 200% overload capacity for 0.5s
Installation: Wall-mounted
Protection Class: IP20
Operating Temperature: -10°C to +50°C (derating 2% per °C above 40°C)
Cooling Method: Forced air cooling
Humidity: 20% to 95% RH (condensation free)
Installation Altitude: Up to 1000m (derating 1% per 100m above 1000m)
