Home /Products/Human Machine Interface HMI/Siemens 6AV2124-0QC02-0AX1 SIMATIC HMI TP1500 Mainstream model, with complete interfaces, compatible with WinCC Comfort V14 SP1

Siemens 6AV2124-0QC02-0AX1 SIMATIC HMI TP1500 Mainstream model, with complete interfaces, compatible with WinCC Comfort V14 SP1

1pcs
MOQ
Negotiable
Price
Siemens 6AV2124-0QC02-0AX1 SIMATIC HMI TP1500 Mainstream model, with complete interfaces, compatible with WinCC Comfort V14 SP1
Features Gallery Product Description Chat Now
Features
Specifications
Input Points: 28
Supply Voltage Type: AC
Power Supply Voltage: 100 – 240VAC.
Operating_Temperature: -20°C To 60°C
Output Method: Relay
Color: Normal
Power_Supply: 24 V DC
Programming_Language: Ladder Logic, Function Block, Structured Text
Points: 40 (24DI+16DO)
Output Typt: Relay
Actual Price: Negotiabled
CPU_Speed: 100 MHz
Weight: 300 Grams
Part No: U-DMY
Certifications: CE, UL, RoHS
Highlight:

Siemens SIMATIC HMI TP1500 mainstream

,

HMI TP1500 with complete interfaces

,

SIMATIC HMI compatible WinCC Comfort
Basic Infomation
Place of Origin: Germany
Brand Name: Siemens
Model Number: 6AV2124-0QC02-0AX1
Document: HWComfortPanelszhTW_tc-TC.pdf
Payment & Shipping Terms
Delivery Time: 1week
Payment Terms: T/T
Supply Ability: 20PCS 1week
Product Description

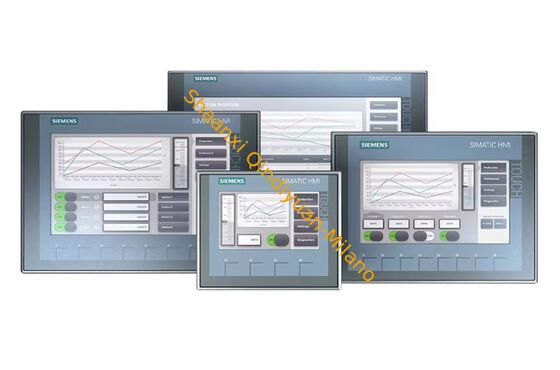

Siemens 6AV2124-0QC02-0AX1 SIMATIC HMI TP1500 Mainstream
The SIMATIC HMI TP1500 Mainstream model features complete interfaces and full compatibility with WinCC Comfort V14 SP1. This industrial touch panel delivers reliable performance in demanding manufacturing environments.
Product Specifications
Product Series Model Number Order Number Power Supply Power Consumption Installation Type Protection Rating Special Features
TP1500 Comfort TP1500 Comfort 6AV2124-0QC02-0AX0 24 V DC (19.2-28.8 V DC) Typ. 36 W Panel Mount (Vertical/Horizontal) Front IP65, Rear IP20 15" Widescreen TFT, 1280x800, 16M Colors, 24MB User Memory
TP1500 Comfort TP1500 Comfort 6AV2124-0QC02-0AX1 24 V DC (19.2-28.8 V DC) Typ. 36 W Panel Mount (Vertical/Horizontal) Front IP65, Rear IP20 15" Widescreen TFT, 1280x800, 16M Colors, 24MB User Memory, WEC 2013 OS
TP1500 Comfort TP1500 Comfort 6AV2124-0QC02-0AX2 24 V DC (19.2-28.8 V DC) Typ. 36 W Panel Mount (Vertical/Horizontal) Front IP65, Rear IP20 15" Widescreen TFT, 1280x800, 16M Colors, 24MB User Memory, WEC 2013 OS
TP1500 Comfort INOX TP1500 Comfort INOX 6AV2144-8QC10-0AA3 24 V DC (19.2-28.8 V DC) Typ. 41 W Stainless Steel Panel Mount Front IP66K, Rear IP20 Stainless Steel Front, Washdown Resistant
TP1500 Comfort INOX TP1500 Comfort INOX 6AV2144-8QC20-0AA3 24 V DC (19.2-28.8 V DC) Typ. 41 W Stainless Steel Panel Mount Front IP69K, Rear IP20 Stainless Steel Front, High Pressure Washdown
TP1500 Comfort Outdoor TP1500 Comfort Outdoor 6AV2124-0QC13-0AX0 24 V DC (19.2-28.8 V DC) Max. 32 W Panel Mount Front IP65, Rear IP20 Outdoor Rated, Sunlight Readable, -30°C to +60°C
SIPLUS HMI TP1500 Comfort SIPLUS HMI TP1500 Comfort 6AG1124-0QC02-4AX1 24 V DC (19.2-28.8 V DC) Typ. 36 W Panel Mount Front IP65, Rear IP20 (Conformal Coated) Wide Temp (-25°C to +60°C), Corrosion Resistant
SIPLUS HMI TP1500 Outdoor SIPLUS HMI TP1500 Outdoor 6AG1124-0QC13-2AX0 24 V DC (19.2-28.8 V DC) Max. 32 W Panel Mount Front IP65, Rear IP20 (Conformal Coated) Outdoor Rated, Wide Temp (-30°C to +60°C)
TP1500 Comfort Pro TP1500 Comfort Pro 6AV2124-0QC24-0AX0 24 V DC (19.2-28.8 V DC) Typ. 36 W Support Arm Mount (Top Flange) Front IP65, Rear IP20 Pro Version for Support Arm Systems
TP1500 Comfort Pro TP1500 Comfort Pro 6AV2124-0QC24-0BX0 24 V DC (19.2-28.8 V DC) Typ. 36 W Support Arm Mount (Round Tube) Front IP65, Rear IP20 Extendable Support Arm Structure
TP1500 Comfort Pro TP1500 Comfort Pro 6AV2124-0QC24-1AX0 24 V DC (19.2-28.8 V DC) Typ. 36 W Pedestal Mount (Bottom Flange) Front IP65, Rear IP20 Extendable Pedestal Mount
Key Features Overview
  • Power Supply: All models operate on 24V DC with a voltage range of 19.2-28.8V DC
  • Power Consumption: Standard models consume 36W typical, stainless steel versions 41W, outdoor models maximum 32W
  • Installation Options: Panel mount (vertical/horizontal), stainless steel panel mount, support arm mount, and pedestal mount configurations
  • Environmental Protection: Front protection ratings from IP65 to IP69K with rear protection at IP20 across all models
  • Display: 15-inch widescreen TFT display with 1280x800 resolution and 16 million colors
Tag:

Panel Mount HMI

HMI Human Machine Interface

Siemens SIMATIC HMI
