Home /Products/Servo Systems/Siemen 1FL6054‑1AF61‑0AA1 1KW 8‑pole Motor body IP65; cable connector IP20 230V / 400V, 3000 rpm

Siemen 1FL6054‑1AF61‑0AA1 1KW 8‑pole Motor body IP65; cable connector IP20 230V / 400V, 3000 rpm

1pcs
MOQ
Negotiable
Price
Siemen 1FL6054‑1AF61‑0AA1 1KW 8‑pole Motor body IP65; cable connector IP20 230V / 400V, 3000 rpm
Features Gallery Product Description Chat Now
Features
Specifications
Insulation Class: Class B
Gear Material: Steel
System Chipset: Intel 845GV
Power: 50W-5.0KW
Rated Torque: 4.0N.m
Shipping Date: Within 3 Days After Payment
Material: 2mm Hard Aluminum Plate
Gear Type: All Metal Gears
Port: Guangzhou/Hong Kong
Operating Speed: 0.17sec / 60 Degrees (4.8V No Load)
Factory Outlet: Factory Outlet
Axis Specifications: Direct Axis
Rated Voltage: 3.0V
Sample Order: Welcome
Stock: Rich
Highlight:

Siemens 1KW servo motor IP65

,

8-pole servo motor 3000 rpm

,

230V 400V servo motor with cable connector
Basic Infomation
Place of Origin: China
Brand Name: Siemens
Model Number: 1FL6054‑1AF61‑0AA1
Document: 1FL6094-1AC61-2AH1_datashee...zh.pdf
Payment & Shipping Terms
Delivery Time: 1week
Payment Terms: T/T
Supply Ability: 10PCS 1week
Product Description

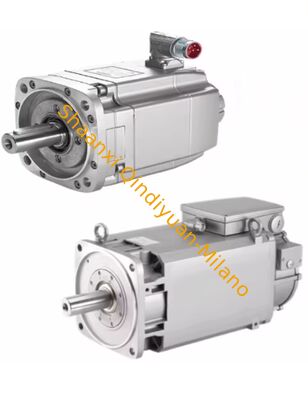

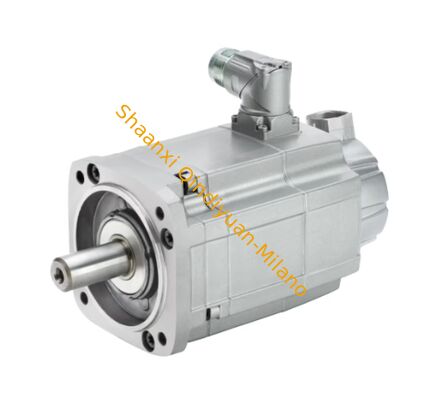

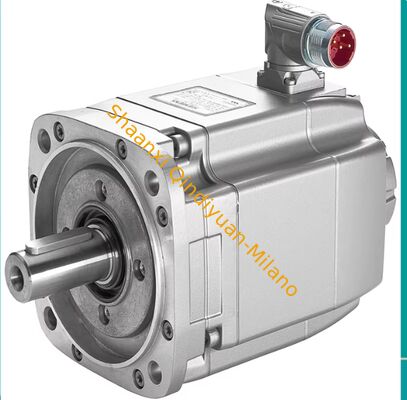

Siemens 1FL6054-1AF61-0AA1 Servo Motor
1KW 8-pole motor with IP65 protection rating and 3000 rpm rated speed. Designed for industrial automation applications requiring precise motion control.
Technical Specifications
Model Inertia Type Rated Power (kW) Rated Speed (rpm) Rated Torque (Nm) Peak Torque (Nm) Rated Current (A) Peak Current (A) Moment of Inertia (10^-4 kg*m²) Protection Degree Encoder Type Shaft Height (mm) Mounting Voltage (VAC)
1FL6022-2AF21-1AA1Low Inertia0.0530000.160.480.250.750.031IP65Incremental 2500ppr20IM B5230
1FL6024-2AF21-1AA1Low Inertia0.130000.320.960.51.50.052IP65Incremental 2500ppr25IM B5230
1FL6032-2AF21-1AA1Low Inertia0.230000.641.920.82.40.105IP65Incremental 2500ppr30IM B5230
1FL6034-2AF21-1AA1Low Inertia0.430001.273.811.44.20.214IP65Incremental 2500ppr35IM B5230
1FL6042-1AF61-0AA1Low Inertia0.430001.273.811.44.20.351IP65Absolute 20bit45IM B5400
1FL6042-1AF61-2AH1Low Inertia0.430001.273.811.44.20.351IP65Incremental 2500ppr45IM B5400
1FL6044-1AF61-0AA1Low Inertia0.7530002.397.172.67.80.52IP65Absolute 20bit45IM B5400
1FL6052-1AF61-0AA1Low Inertia0.7530002.397.172.67.80.897IP65Absolute 20bit55IM B5400
1FL6054-1AF61-0AA1Low Inertia1.030003.189.544.714.21.15IP65Absolute 20bit55IM B5400
1FL6062-1AC61-0AA1High Inertia1.020004.7714.36.318.92.04IP65Absolute 20bit65IM B5400
1FL6064-1AC61-0AA1High Inertia1.520007.1621.510.631.82.62IP65Absolute 20bit65IM B5400
1FL6066-1AC61-2LG1High Inertia1.7520008.3625.111.634.83.2IP65Absolute 20bit65IM B5400
1FL6072-1AC61-0AA1High Inertia2.020009.5528.713.239.64.5IP65Absolute 20bit75IM B5400
1FL6074-1AC61-0AA1High Inertia2.5200011.935.716.549.56.2IP65Absolute 20bit75IM B5400
1FL6082-1AC61-0AA1High Inertia3.0200014.342.919.859.48.5IP65Absolute 20bit85IM B5400
1FL6084-1AC61-0AA1High Inertia3.5200016.750.123.169.311.2IP65Absolute 20bit85IM B5400
1FL6092-1AC61-2AB1High Inertia3.5200016.750.123.169.314.8IP65Incremental 2500ppr90IM B5400
1FL6094-1AC61-0AA1High Inertia4.0200019.157.326.479.218.5IP65Absolute 20bit90IM B5400
Additional Specifications
  • Motor Type: Permanent-magnet synchronous servo motor
  • Poles: All models are 8-pole (standard for 1FL6 series)
  • Protection: Motor body IP65; cable connector IP20
  • Mounting: Standard IM B5 (flange mount); also available IM V1 / IM V3
  • Voltage: 230 VAC (low power) / 400 VAC (medium/high power)
