Home /Products/Servo Systems/Siemens 1LE0003-1CA13-3FA4 7.5KW 50Hz, 380V 3AC IE3 (IEC 60034-30) IC411 (Self-ventilated) as standard

Siemens 1LE0003-1CA13-3FA4 7.5KW 50Hz, 380V 3AC IE3 (IEC 60034-30) IC411 (Self-ventilated) as standard

1pcs
MOQ
Negotiable
Price
Siemens 1LE0003-1CA13-3FA4 7.5KW 50Hz, 380V 3AC IE3 (IEC 60034-30) IC411 (Self-ventilated) as standard
Features Gallery Product Description Chat Now
Features
Specifications
Mounting Type: Flange Mount
Axis Specifications: With Keys
Installation Height: 66.1mm
Quality: High-quality
Item Condition: 100% Brand New
Item Status: Stock
Efficiency: IE 2
Control Method: PWM Control
Encoder: Incremental Encoder, 2500 PPR
Maximum Speed: 8000 Rpm
Width: 450
Gear Material: Steel
Colour: Customized
Productgroup Id: 4,6
Vibration Frequency: High Frequency
Highlight:

Siemens 7.5KW servo motor

,

380V 3AC servo motor

,

IE3 self-ventilated servo motor
Basic Infomation
Place of Origin: China
Brand Name: Siemens
Model Number: 1LE0003-1CA13-3FA4
Document: 1LE0001_1LE0003_motor_selec...de.pdf
Payment & Shipping Terms
Delivery Time: 1week
Payment Terms: T/T
Supply Ability: 10PCS 1week
Product Description

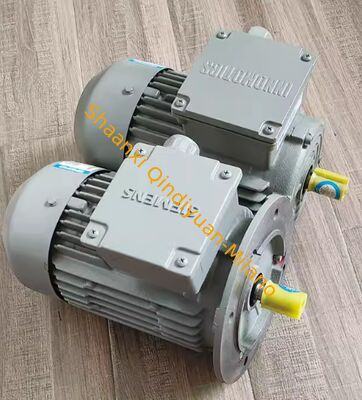

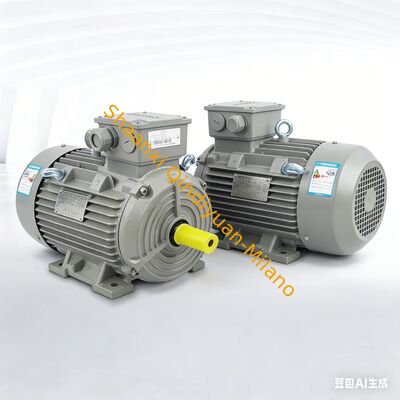

Siemens 1LE0003-1CA13-3FA4 Industrial Motor
7.5KW 50Hz, 380V 3AC IE3 (IEC 60034-30) IC411 (Self-ventilated) as standard
Product Overview
The Siemens 1LE0003 series represents high-efficiency industrial motors designed for reliable performance in demanding applications. These motors feature IE3 efficiency class compliance and robust construction for industrial environments.
Key Specifications
  • Efficiency Class: IE3 (IEC 60034-30)
  • Cooling Type: IC411 Self-ventilated
  • Protection Class: IP55
  • Insulation Class: Class F
  • Duty Type: S1 (Continuous duty)
Complete Product Range Specifications
Model Number Poles (50Hz) Rated Power (kW) Mounting Type Cooling Type Protection Class Insulation Class Efficiency Class Duty Type
1LE0003-0DA22-1FA4 2 0.75 IM B3 Foot Mount IC411 Self-ventilated IP55 Class F IE3 S1
1LE0003-0DA32-1FA4 2 1.1 IM B3 Foot Mount IC411 Self-ventilated IP55 Class F IE3 S1
1LE0003-0EA02-1FA4 2 1.5 IM B3 Foot Mount IC411 Self-ventilated IP55 Class F IE3 S1
1LE0003-0EA42-1FA4 2 2.2 IM B3 Foot Mount IC411 Self-ventilated IP55 Class F IE3 S1
1LE0003-1AA42-1FA4 2 3.0 IM B3 Foot Mount IC411 Self-ventilated IP55 Class F IE3 S1
1LE0003-1BA23-3FA4 2 4.0 IM B3 Foot Mount IC411 Self-ventilated IP55 Class F IE3 S1
1LE0003-1CA03-3FA4 4 5.5 IM B3 Foot Mount IC411 Self-ventilated IP55 Class F IE3 S1
1LE0003-1CA13-3FA4 4 7.5 IM B3 Foot Mount IC411 Self-ventilated IP55 Class F IE3 S1
1LE0003-1DA23-3FA4 4 11.0 IM B3 Foot Mount IC411 Self-ventilated IP55 Class F IE3 S1
1LE0003-1DA33-3FA4 4 15.0 IM B3 Foot Mount IC411 Self-ventilated IP55 Class F IE3 S1
1LE0003-0DA22-1FB4 2 0.75 IM B35 Foot+Flange IC411 Self-ventilated IP55 Class F IE3 S1
1LE0003-0DA32-1FB4 2 1.1 IM B35 Foot+Flange IC411 Self-ventilated IP55 Class F IE3 S1
1LE0003-1CA03-3FB4 4 5.5 IM B35 Foot+Flange IC411 Self-ventilated IP55 Class F IE3 S1
1LE0003-1CA13-3FB4 4 7.5 IM B35 Foot+Flange IC411 Self-ventilated IP55 Class F IE3 S1
