Home /Products/Servo Systems/Siemens 1LA7063-6AB10,6,0.09,IM B3 Foot Mount,IP55 Standard aluminum casing, self-fan cooling (IC411), compatible with 50/60Hz dual frequency

Siemens 1LA7063-6AB10,6,0.09,IM B3 Foot Mount,IP55 Standard aluminum casing, self-fan cooling (IC411), compatible with 50/60Hz dual frequency

1pcs
MOQ
Negotiable
Price
Siemens 1LA7063-6AB10,6,0.09,IM B3 Foot Mount,IP55 Standard aluminum casing, self-fan cooling (IC411), compatible with 50/60Hz dual frequency
Features Gallery Product Description Chat Now
Features
Specifications
Dimensions: 90 X 100 X 75 Mm
Output Typt: Relay
Point: 14 (8DI+6DO)
Condition: New Original With Sealed
Power_Supply: 24 V DC
Actual Price: Negotiabled
Operating_Temperature: -20°C To 60°C
Mounting_Type: DIN Rail
Output Points: 24 Points.
Manufacturer: Siemens
Communication_Protocols: Ethernet, Profibus, Modbus
CPU_Speed: 100 MHz
Mpu Points: 12 (8DI + 4DO)
Part No: E-05B-EX1
Total Points: 60 Points.
Highlight:

Siemens servo motor IP55 aluminum casing

,

foot mount servo motor dual frequency

,

self-fan cooling servo motor IC411
Basic Infomation
Place of Origin: China
Brand Name: siemens
Model Number: 1LA7063-6AB10
Document: 1LA7063.pdf
Payment & Shipping Terms
Delivery Time: 1week
Payment Terms: T/T
Supply Ability: 10pcs 1week
Product Description

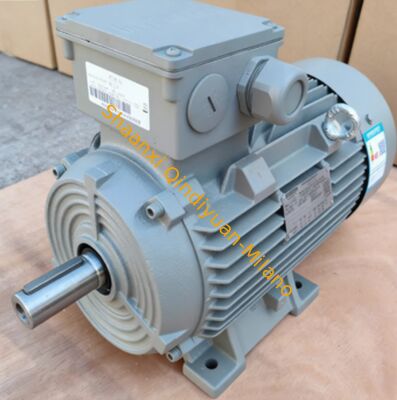

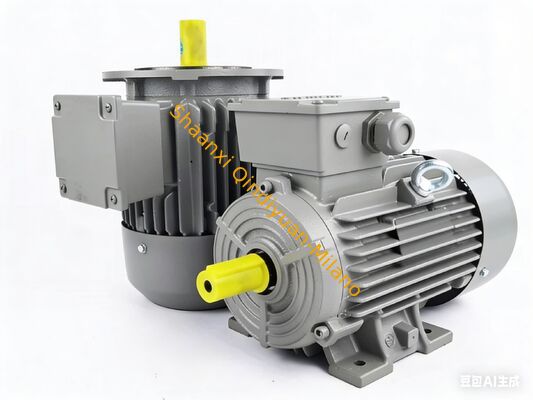

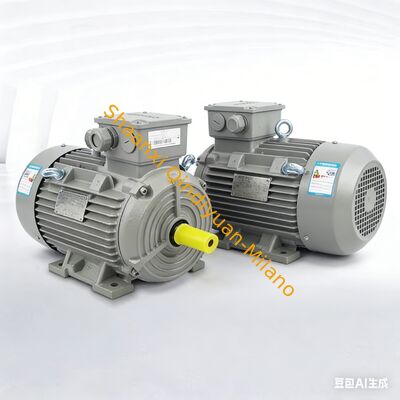

Siemens 1LA7063-6AB10 Three-Phase Induction Motor
SIMOTICS GP 1LA7 series aluminum frame motor with IP55 protection, self-ventilated cooling (IC411), and 50/60Hz dual frequency compatibility. Foot mount design (IM B3) suitable for industrial applications.
Motor Specifications
General Specifications
Parameter Specification
Product Series SIMOTICS GP 1LA7
Motor Type 3-Phase Squirrel-Cage Induction Motor
Frame Size IEC 63M
Enclosure Material Aluminum
Protection Class IP55
Cooling Type Self-Ventilated (IC411)
Efficiency Class IE1 (EFF2)
Weight 4.0 kg
Electrical Specifications - 50 Hz Operation
Parameter Value
Rated Power 0.25 kW
Rated Voltage 230 V Δ / 400 V Y
Rated Current 0.70 A
Rated Speed 2830 rpm
Rated Torque 0.84 Nm
Electrical Specifications - 60 Hz Operation
Parameter Value
Rated Power 0.29 kW
Rated Voltage 460 V Y
Rated Speed 3400 rpm
Mechanical Specifications
Parameter Value
Shaft Diameter 11 mm
Shaft Length 23 mm
Shaft Key 4 x 16 mm
Mounting Type IM B3 (Foot)
Overall Length 232 mm
Thermal Specifications
Parameter Value
Insulation Class 155 (F)
Temperature Rise 80 K
Standards & Compliance
  • IEC 60034
  • IEC 60072
Special Features
Standard configuration includes no motor protection. Optional PTC thermistors (A11) available for thermal protection.
