Home /Products/Servo Systems/Siemens 1LA7063-4AB10,4,0.18,IM B3 Foot Mount,IP55 Standard aluminum casing, self-fan cooling (IC411), compatible with 50/60Hz dual frequency

Siemens 1LA7063-4AB10,4,0.18,IM B3 Foot Mount,IP55 Standard aluminum casing, self-fan cooling (IC411), compatible with 50/60Hz dual frequency

1pcs
MOQ
Negotiable
Price
Siemens 1LA7063-4AB10,4,0.18,IM B3 Foot Mount,IP55 Standard aluminum casing, self-fan cooling (IC411), compatible with 50/60Hz dual frequency
Features Gallery Product Description Chat Now
Features
Specifications
Rpm: 3000 RPM
Power: 200W
Type: Brushless DC Servo Motor
Shipping Term: DHL Fedex TNT EMS UPS
Connector Wire: 11.81" (30cm)
Torque Constant: 0.35 Nm/A Rms
Ac Voltage: 208-230 / 240 V
Stock Location: China
Item No: SGM7G-13A7ASS
Model: MLS070S-3A-0600-NNNN
Resistance: 10.0±10% Ω/phase
Vibration Level: V15
Brake: 24 VDC Holding Brake
Motor: Stepper Motor
Operating Temperature: -20 To 80 °C
Highlight:

Siemens servo motor aluminum casing

,

Foot mount servo motor IP55

,

Dual frequency servo motor IC411
Basic Infomation
Place of Origin: China
Brand Name: siemens
Model Number: 1LA7063-4AB10
Document: 1LA7063.pdf
Payment & Shipping Terms
Delivery Time: 1week
Payment Terms: T/T
Supply Ability: 10pcs 1week
Product Description

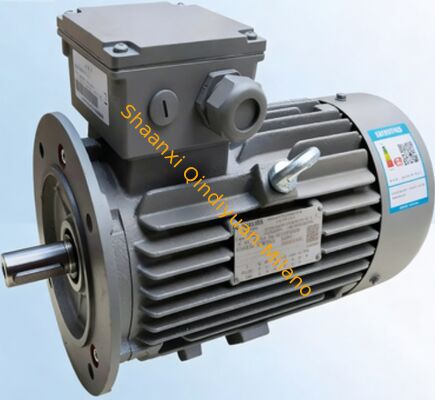

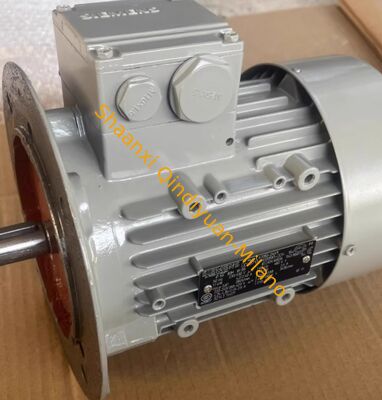

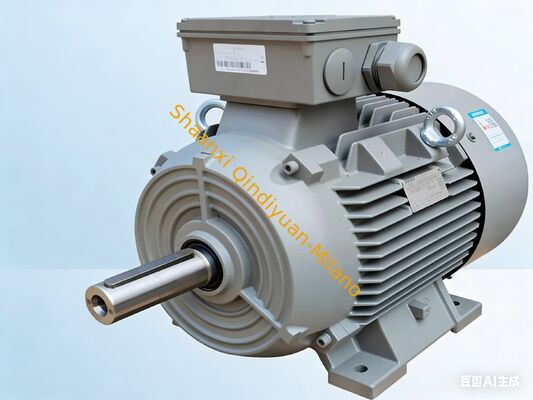

Siemens 1LA7063-4AB10 Three-Phase Induction Motor
The Siemens 1LA7063-4AB10 is a compact, high-performance 3-phase squirrel-cage induction motor from the SIMOTICS GP 1LA7 series. Designed for industrial applications, this 4-pole motor features an aluminum casing, IP55 protection, and self-ventilated cooling (IC411) for reliable operation in demanding environments.
Key Specifications
  • Rated Power: 0.18 kW (50 Hz) / 0.21 kW (60 Hz)
  • Mounting: IM B3 Foot Mount
  • Frame Size: IEC 63M
  • Protection Class: IP55
  • Cooling Type: Self-Ventilated (IC411)
  • Efficiency Class: IE1 (EFF2)
  • Weight: 4.0 kg
Technical Specifications
Electrical Parameters - 50 Hz Operation
Rated Power 0.18 kW
Rated Voltage 220-230 V Δ / 380-400 V Y
Rated Current 0.54 A
Rated Speed 1500 rpm
Rated Torque 1.15 Nm
Electrical Parameters - 60 Hz Operation
Rated Power 0.21 kW
Rated Voltage 440-480 V Y
Rated Speed 1800 rpm
Mechanical Specifications
Shaft Diameter 11 mm
Shaft Length 23 mm
Shaft Key 4 x 16 mm
Mounting Type IM B3 (Foot)
Overall Length 202.5 mm
Thermal Characteristics
Insulation Class 155 (F)
Temperature Rise 80 K
Compliance & Standards
This motor complies with international standards including IEC 60034 and IEC 60072, ensuring quality and reliability for industrial applications worldwide.
Motor Protection
Standard configuration includes no integrated motor protection. Optional PTC thermistors (A11) are available for enhanced thermal protection requirements.
