Home /Products/Servo Systems/Siemens 1LA7063-2AA10-Z A11,2,0.25,IM B3 Foot Mount,IP55 + PTC Thermistors aluminum casing, self-fan cooling (IC411), compatible with 50/60Hz dual frequency

Siemens 1LA7063-2AA10-Z A11,2,0.25,IM B3 Foot Mount,IP55 + PTC Thermistors aluminum casing, self-fan cooling (IC411), compatible with 50/60Hz dual frequency

1pcs
MOQ
Negotiable
Price
Siemens 1LA7063-2AA10-Z A11,2,0.25,IM B3 Foot Mount,IP55 + PTC Thermistors aluminum casing, self-fan cooling (IC411), compatible with 50/60Hz dual frequency
Features Gallery Product Description Chat Now
Features
Specifications
Dimensions: 90 X 100 X 75 Mm
Output Typt: Relay
Point: 14 (8DI+6DO)
Condition: New Original With Sealed
Power_Supply: 24 V DC
Actual Price: Negotiabled
Operating_Temperature: -20°C To 60°C
Mounting_Type: DIN Rail
Output Points: 24 Points.
Manufacturer: Siemens
Communication_Protocols: Ethernet, Profibus, Modbus
CPU_Speed: 100 MHz
Mpu Points: 12 (8DI + 4DO)
Part No: E-05B-EX1
Total Points: 60 Points.
Highlight:

Siemens servo motor with PTC thermistors

,

aluminum casing servo motor IC411

,

foot mount servo motor dual frequency
Basic Infomation
Place of Origin: China
Brand Name: siemens
Model Number: 1LA7063-2AA10-Z
Document: 1LA7063.pdf
Payment & Shipping Terms
Delivery Time: 1week
Payment Terms: T/T
Supply Ability: 10pcs 1week
Product Description

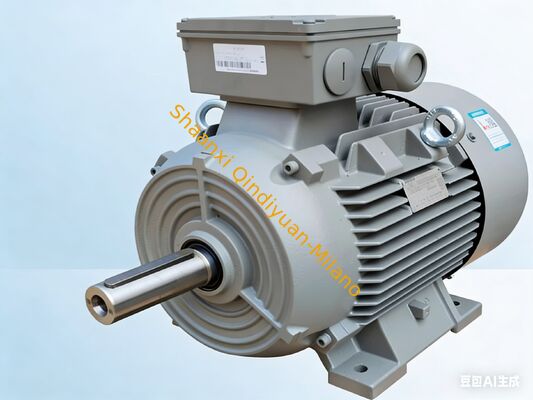

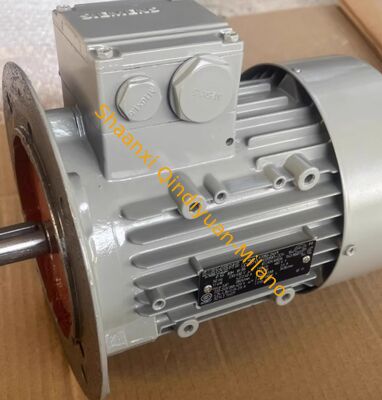

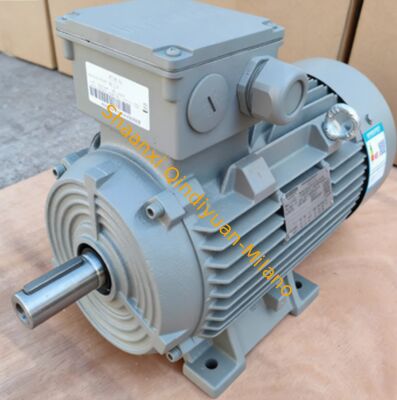

Siemens 1LA7063-2AA10-Z A11 Industrial Motor
High-performance 3-phase squirrel-cage induction motor with aluminum casing, IP55 protection, and self-ventilated cooling (IC411). Designed for 50/60Hz dual frequency operation with optional PTC thermistors for thermal protection.
Motor Specifications
Parameter Category Parameter Name 1LA7063-2AA10 (2-pole) 1LA7063-4AB10 (4-pole) 1LA7063-4AB12 (4-pole)
General Product Series SIMOTICS GP 1LA7 SIMOTICS GP 1LA7 SIMOTICS GP 1LA7
Product Type 3-Phase Squirrel-Cage Induction Motor
Frame Size IEC 63M
Enclosure Material Aluminum
Protection Class IP55
Cooling Type Self-Ventilated (IC411)
Efficiency Class IE1 (EFF2)
Weight (kg) 4.0
Electrical - 50 Hz Rated Power (kW) 0.25 0.18 0.18
Rated Voltage 230 V Δ / 400 V Y 220-230 V Δ / 380-400 V Y 230 V Δ / 400 V Y
Rated Current (A) 0.70 0.54 0.54
Rated Speed (rpm) 2830 1500 1500
Rated Torque (Nm) 0.84 1.15 1.15
Electrical - 60 Hz Rated Power (kW) 0.29 0.21 0.21
Rated Voltage 460 V Y 440-480 V Y 460 V Y
Rated Speed (rpm) 3400 1800 1800
Mechanical Shaft Diameter (mm) 11
Shaft Length (mm) 23
Shaft Key (W x L, mm) 4 x 16
Mounting Type IM B3 (Foot) IM B3 (Foot) IM B14 (Face)
Overall Length (mm) 232 202.5 202.5
Thermal Insulation Class 155 (F)
Temperature Rise 80 K
Standards Compliance IEC 60034, IEC 60072
Special Features Motor Protection None None Optional PTC Thermistors (A11)
Key Features
  • Aluminum enclosure for lightweight durability
  • IP55 protection against dust and water jets
  • Self-ventilated cooling system (IC411)
  • Dual frequency operation (50/60Hz)
  • Multiple mounting options (IM B3 foot and IM B14 face)
  • Optional PTC thermistors for thermal protection
  • Compliant with international standards IEC 60034 and IEC 60072
Application Notes
This Siemens SIMOTICS GP motor series is engineered for industrial applications requiring reliable performance, compact design, and versatile mounting options. The aluminum construction provides excellent heat dissipation while maintaining a lightweight profile suitable for various industrial automation and machinery applications.
