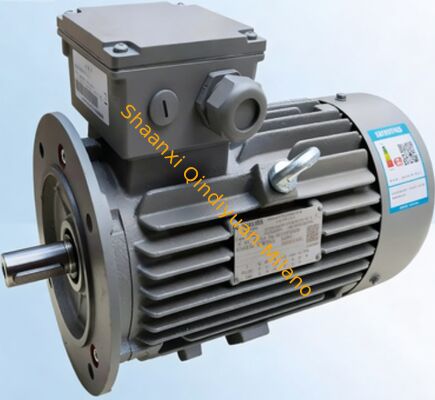

1LA7063-2AA11 2 Pole Servo Motor IM B5 Flange Mount IP55 Aluminum Casing

1pcs
MOQ
Negotiable
Price
1LA7063-2AA11 2 Pole Servo Motor IM B5 Flange Mount IP55 Aluminum Casing
Features Gallery Product Description Chat Now
Features
Specifications
Dimensions: 90 X 100 X 75 Mm
Output Typt: Relay
Point: 14 (8DI+6DO)
Condition: New Original With Sealed
Power_Supply: 24 V DC
Actual Price: Negotiabled
Operating_Temperature: -20°C To 60°C
Mounting_Type: DIN Rail
Output Points: 24 Points.
Manufacturer: Siemens
Communication_Protocols: Ethernet, Profibus, Modbus
CPU_Speed: 100 MHz
Mpu Points: 12 (8DI + 4DO)
Part No: E-05B-EX1
Total Points: 60 Points.
Highlight:

2 Pole Servo Motor

,

1LA7063-2AA11 Servo Motor
Basic Infomation
Place of Origin: China
Brand Name: siemens
Model Number: 1LA7063-2AA11
Document: 1LA7063.pdf
Payment & Shipping Terms
Delivery Time: 1week
Payment Terms: T/T
Supply Ability: 10pcs 1week
Product Description
Parameter Category Parameter Name 1LA7063-2AA10 (2-pole) 1LA7063-4AB10 (4-pole) 1LA7063-4AB12 (4-pole)
General Product Series SIMOTICS GP 1LA7 SIMOTICS GP 1LA7 SIMOTICS GP 1LA7
General Product Type 3-Phase Squirrel-Cage Induction Motor 3-Phase Squirrel-Cage Induction Motor 3-Phase Squirrel-Cage Induction Motor
General Frame Size IEC 63M IEC 63M IEC 63M
General Enclosure Material Aluminum Aluminum Aluminum
General Protection Class IP55 IP55 IP55
General Cooling Type Self-Ventilated (IC411) Self-Ventilated (IC411) Self-Ventilated (IC411)
General Efficiency Class IE1 (EFF2) IE1 (EFF2) IE1 (EFF2)
General Weight (kg) 4.0 4.0 4.0
Electrical - 50 Hz Rated Power (kW) 0.25 0.18 0.18
Electrical - 50 Hz Rated Voltage 230 V Δ / 400 V Y 220-230 V Δ / 380-400 V Y 230 V Δ / 400 V Y
Electrical - 50 Hz Rated Current (A) 0.70 0.54 0.54
Electrical - 50 Hz Rated Speed (rpm) 2830 1500 1500
Electrical - 50 Hz Rated Torque (Nm) 0.84 1.15 1.15
Electrical - 60 Hz Rated Power (kW) 0.29 0.21 0.21
Electrical - 60 Hz Rated Voltage 460 V Y 440-480 V Y 460 V Y
Electrical - 60 Hz Rated Speed (rpm) 3400 1800 1800
Mechanical Shaft Diameter (mm) 11 11 11
Mechanical Shaft Length (mm) 23 23 23
Mechanical Shaft Key (W x L, mm) 4 x 16 4 x 16 4 x 16
Mechanical Mounting Type IM B3 (Foot) IM B3 (Foot) IM B14 (Face)
Mechanical Overall Length (mm) 232 202.5 202.5
Thermal Insulation Class 155 (F) 155 (F) 155 (F)
Thermal Temperature Rise 80 K 80 K 80 K
Standards Compliance IEC 60034, IEC 60072 IEC 60034, IEC 60072 IEC 60034, IEC 60072
Special Features Motor Protection None None Optional PTC Thermistors (A11)
