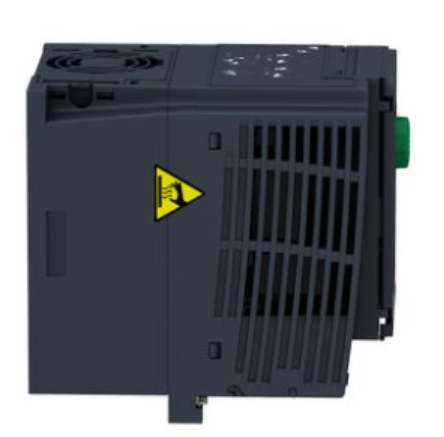

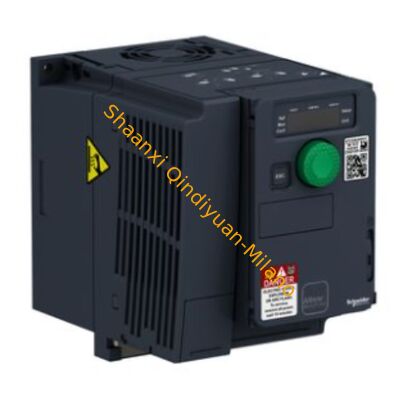

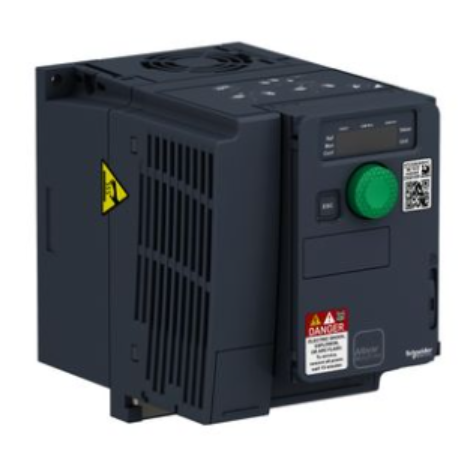

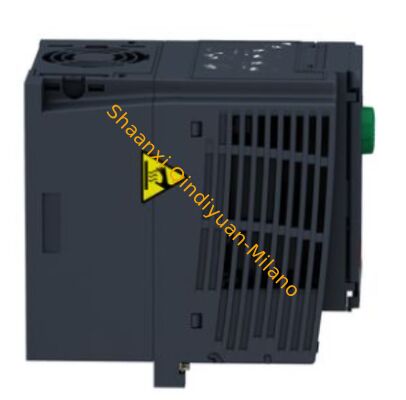

Core Electrical Parameters
Parameters
Values
Rated Power
30 kW (40 HP, light load); 22 kW (30 HP, heavy load)
Rated Output Current
61.5 A (4kHz, light load); 46.3 A (4kHz, heavy load)
Maximum Transient Current
73.8 A (light load 60s); 69.5 A (heavy load 60s)
Input Voltage
Three-phase 380–480 V AC (-15%/+10%), 50/60Hz
Output Frequency
0.1–599 Hz
Control Method
DTC Direct Torque Control, Sensorless Vector Control, V/F, Energy Saving Mode, Permanent Magnet Motor Control
Overload Capacity
120% Light Load (60s); 150% Heavy Load (60s)
Protection Rating
IP21 (NEMA 1)
Cooling Method
Forced Air Cooling
Installation Method
Wall Mounted / Cabinet-mounted, vertical (±10°)
Communication Interfaces: Standard: Ethernet/IP, Modbus TCP/RTU; Optional: Profinet, EtherCAT, CANopen, Profibus DP
Safety Functions: Built-in STO (Safe Torque Off), compliant with SIL2/PLd
EMC: Built-in C2/C3 EMC filter
Braking Unit: Built-in braking chopper (can be connected to an external braking resistor)
Ambient Temperature: -15℃ to +50℃ (no derating); +60℃ (derating)
III. Physical and Logistics Parameters (Essential for Foreign Trade)
• Net Weight: 32 kg
• Gross Weight (including standard packaging): Approx. 34 kg
• Dimensions (W×H×D): 271 × 690 × 310 mm
• Packaging Dimensions: Approx. 350 × 750 × 380 mm
• Volume: Approx. 0.10 m³
• Whether it is powered / With Battery: Without Power, No Built-in Battery
IV. Model Designation (ATV930D30N4)
• ATV930: Altivar Process 930 Series (High-Performance Process Type)
• D: With Built-in Braking Chopper
• 30: 30 kW Light Load Power Rating
• N: 380–480 V Three-Phase Input
• 4: Standard Ethernet + Modbus Communication
V. Certifications and Standards
• CE, UL, CSA, EAC, RCM, KC, ATEX, ISO 13849-1, IEC 61508 (SIL2)
• Compliant with IEC 61800-5-1, IEC 61800-3, EN 954-1
