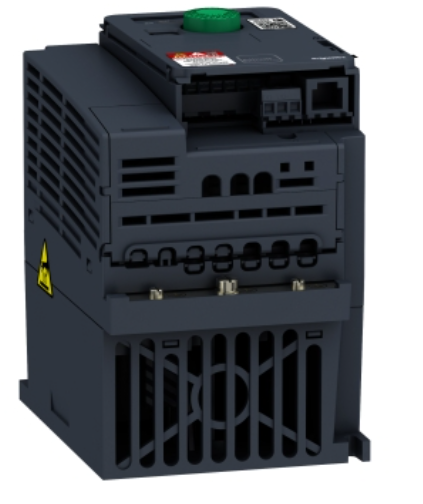

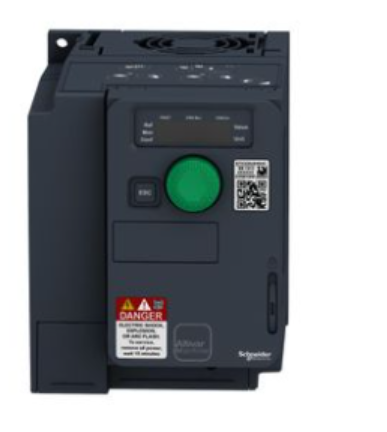

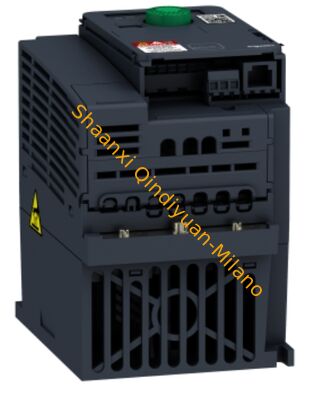

Schneider ATV630U30N4 Variable Frequency Drives VFD Modbus Profibus Communication

1 pcs
MOQ
Negotiable
Price
Schneider ATV630U30N4 Variable Frequency Drives VFD Modbus Profibus Communication
Features Gallery Product Description Chat Now
Features
Specifications
Starting Torque: 150% At 0.5 Hz
Input Voltage: 200-480 V AC
Overload Capacity: 150% For 1 Minute
Dimensions: Varies By Model
Output Frequency: 0-400 Hz
Input Frequency: 50/60 Hz
Operating Temperature Range: -10°C To 50°C
Control Method: V/F Control, Vector Control, Sensorless Vector Control
Display Type: LCD Or LED Display
Communication Protocols: Modbus, Profibus, Ethernet/IP
Harmonic Distortion: <5%
Power Rating: 0.5 KW To 500 KW
Protection Class: IP20 To IP54
Cooling Method: Forced Air Cooling
Output Voltage: 0-480 V AC
Highlight:

Profibus Variable Frequency Drives VFD

,

Schneider ATV630U30N4

,

Modbus Variable Frequency Drives VFD
Basic Infomation
Brand Name: Schneider
Certification: Brand new original
Model Number: ATV630U30N4
Payment & Shipping Terms
Delivery Time: 5-7 days
Payment Terms: T/T
Supply Ability: 1000 pcs
Product Description
Core Electrical Parameters
Parameters Values
Rated Power 3 kW (4 HP)
Rated Output Current 7.2 A (4kHz, light load); 5.6 A (4kHz, heavy load)
Maximum Transient Current 8.4 A (heavy load 60s)
Input Voltage Three-phase 380–480 V AC (±10%), 50/60Hz
Output Frequency 0.1–500 Hz
Control Method Sensorless Vector, V/F, Energy Saving Mode, Permanent Magnet Motor Control
Overload Capacity 120% Light Load (60s); 150% Heavy Load (60s)
Protection Rating IP21 (NEMA 1)
Cooling Method Forced Air Cooling
Installation Method Wall Mounted / Cabinet Mounted, Vertical (±10°)
Communication Interface Standard: Modbus TCP/RTU, Ethernet; Optional: Profinet, EtherCAT, CANopen Safety Features: Built-in STO (Safe Torque Off), compliant with SIL2/PLd
EMC Built-in C2/C3 EMC filter
Ambient Temperature -15℃ to +50℃ (no derating); +60℃ (derating)
III. Physical and Logistics Parameters (Essential for Foreign Trade)
  • Net Weight: 4.6 kg
  • Gross Weight (including standard packaging): Approx. 5.1 kg
  • Dimensions (W*H*D): 144 * 350 * 203 mm
  • Packaging Dimensions: Approx. 200 * 400 * 250 mm
  • Volume: Approx. 0.02 m³
  • With or Without Battery: Without battery, no built-in battery
IV. Model Meaning Explanation (ATV630U30N4)
  • ATV630: Altivar Process 630 Series
  • U: Standard (Universal)
  • 30: 3.0 kW Power Rating
  • N: 380–480 V Three-phase input
  • 4: Standard Ethernet + Modbus communication
V. Certifications and Standards
  • CE, UL, CSA, EAC, RCM, KC, ATEX, ISO 13849-1
  • Compliant with IEC 61800-5-1, IEC 61800-3, EN 954-1
