Home /Products/Servo Systems/200V Class PTI Servo Drive 2.0KW Fan Cooled IP20 Siemens 6SL3210-5FB12-0UA0

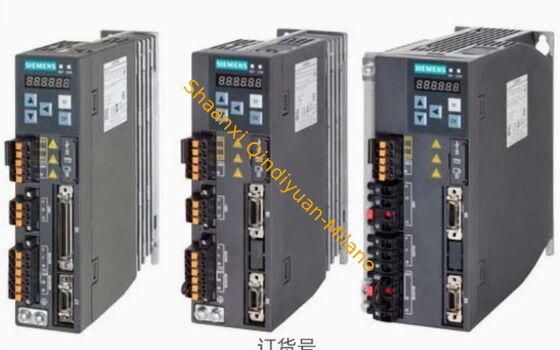

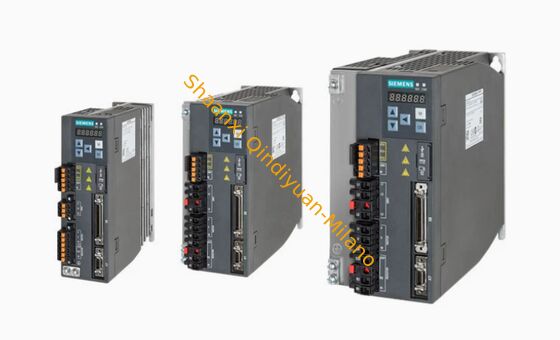

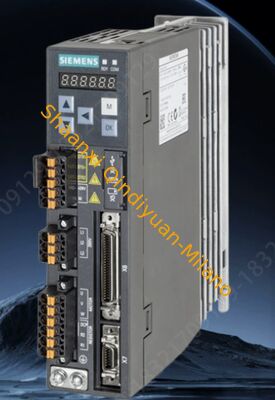

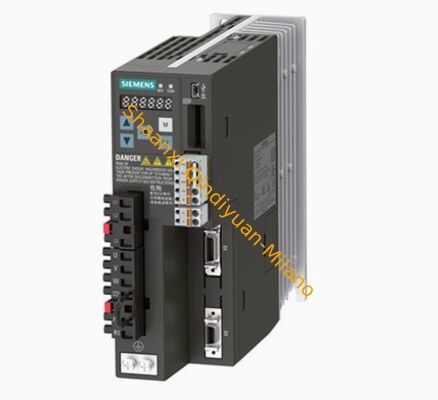

200V Class PTI Servo Drive 2.0KW Fan Cooled IP20 Siemens 6SL3210-5FB12-0UA0

1pcs
MOQ
Negotiable
Price
200V Class PTI Servo Drive 2.0KW Fan Cooled IP20 Siemens 6SL3210-5FB12-0UA0
Features Gallery Product Description Chat Now
Features
Specifications
Protectionfeatures: Overcurrent, Overvoltage, Overtemperature
Weight: 1.2kg
Output Current: 0-100A
Phase: Three-phase
Control Mode: Position, Velocity, Torque
Productname: Servo Drive
Protection Level: IP20
Cooling Method: Air Or Liquid
Dimensions: 150mm X 100mm X 50mm
Protect Feature: Totally Enclosed,Waterproof
Brightness: NO
Panel No: A5E02630230 A5E00213118/A5E02630231
Package: 100% Original Package
Communication Protocol: CANopen, EtherCAT, Modbus
Voltage Level: AC220V/380V+-15%
Highlight:

6SL3210-5FB12-0UA0

,

Servo Drive 2.0KW

,

Servo Drive Fan Cooled
Basic Infomation
Place of Origin: Germany
Brand Name: Siemens
Model Number: 6SL3210-5FB12-0UA0
Document: 6SL3210-5FB12-0UA0.pdf
Payment & Shipping Terms
Delivery Time: 1week
Payment Terms: T/T
Supply Ability: 20PCS 1week
Product Description
Parameter Category Parameter Name Value
General Information Product Series SINAMICS V90
General Information Order Number 6SL3210-5FB12-0UA0
General Information Product Description 200V-class PTI servo drive, 2.0 kW, fan-cooled, IP20, for 200-240V 1/3-phase input
General Information Product Status Active (PM300)
General Information Frame Size D (FSD)
General Information Cooling Type Fan Cooling
General Information Control Interface PTI (Pulse Train Input)
Electrical Input Supply Voltage 200-240 V AC (1/3-phase)
Electrical Input Voltage Tolerance -15% / +10%
Electrical Input Input Frequency 45-66 Hz
Electrical Input Rated Input Current 12.0 A
Electrical Input Control Supply 24 V DC (20.4-28.8 V DC)
Output Specifications Rated Output Power 2.0 kW
Output Specifications Rated Output Current (I_N) 11.6 A
Output Specifications Max. Output Current (I_max) 34.8 A (3 sec)
Output Specifications Output Voltage 0 - Rated Input Voltage
Output Specifications Output Frequency 0-330 Hz
Output Specifications 4-Quadrant Operation Yes
Output Specifications Integrated Brake Resistor Yes
Interfaces & I/O Digital Inputs 4 (standard)
Interfaces & I/O Digital Outputs 2 (standard)
Interfaces & I/O Analog Inputs 2
Interfaces & I/O Analog Outputs 2
Interfaces & I/O Encoder Interface 1 (for incremental/absolute encoders)
Interfaces & I/O Communication RS-485 (Modbus RTU), USB (for commissioning)
Interfaces & I/O PTI Interface Pulse/Direction, CW/CCW, A/B phase
Mechanical Data Width 95 mm
Mechanical Data Height 170 mm
Mechanical Data Depth 195 mm
Mechanical Data Net Weight 2.4 kg
Mechanical Data Protection Class IP20 (front/rear)
Mechanical Data Mounting DIN rail or screw mounting
Environmental Conditions Operating Temperature 0-45 °C (no derating)
Environmental Conditions Storage Temperature -40-70 °C
Environmental Conditions Relative Humidity 5-90% (non-condensing)
Environmental Conditions Max. Altitude 1000 m (no derating)
Environmental Conditions Shock/Vibration Compliant with IEC 60068-2-6/-27
Safety & Standards Safety Functions STO (Safe Torque Off)
Safety & Standards CE Marking Yes
Safety & Standards cULus Certification Yes
Safety & Standards EAC Certification Yes
Safety & Standards RCM (C-Tick) Certification Yes
Safety & Standards KC Certification Yes
Safety & Standards RoHS Compliance Yes
