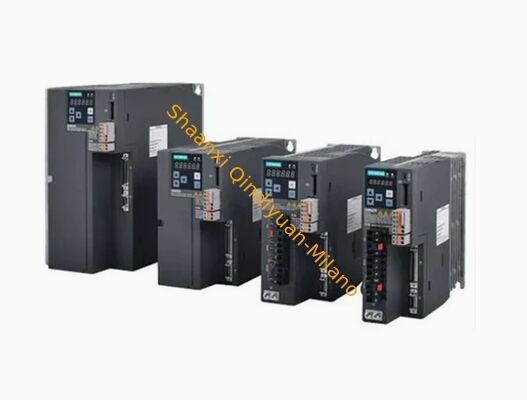

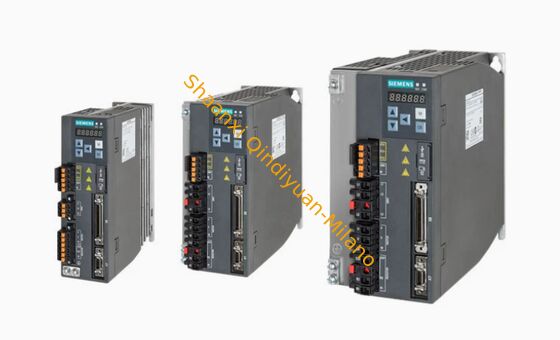

Siemens 6SL3210-5FB10-2UA2 PTI Servo Drive 200V Class 0.2KW Natural Cooling IP20

1pcs
MOQ
Negotiable
Price
Siemens 6SL3210-5FB10-2UA2 PTI Servo Drive 200V Class 0.2KW Natural Cooling IP20
Features Gallery Product Description Chat Now
Features
Specifications
Memory_Capacity: 50 KB
Part No: CS1G-CPU43H
Output Method: Transistor
Actual Price: Based On Offer
Input_Type: Digital And Analog
Power Supply Voltage: 100 – 240VAC.
Input Points: 36DI
Power_Supply: 24 V DC
CPU_Speed: 100 MHz
Points: 40 (24DI+16DO)
Operating_Temperature_Range: -20°C To 60°C
Application: Spinning Machine, Conveyer Belt
Number_of_I/O_Points: 128
Model: S7-1200
Condition: New Original With Sealed
Highlight:

6SL3210-5FB10-2UA2

,

PTI Servo Drive

,

Servo Drive 0.2KW
Basic Infomation
Place of Origin: Germany
Brand Name: Siemens
Model Number: 6SL3210-5FB10-2UA2
Document: 6SL32105FB102UA2_datasheet_...en.pdf
Payment & Shipping Terms
Delivery Time: 1week
Payment Terms: T/T
Supply Ability: 20PCS 1week
Product Description
General Information
Product Series SINAMICS V90
Order Number 6SL3210-5FB10-2UA2
Product Description Servo Drive, PTI (Pulse Train Input) version, 200V class, 0.2 kW, Natural Cooling, IP20
Product Status Active (PM300)
Frame Size FSA (Size A)
Cooling Type Natural Convection Cooling
Electrical Input
Input Voltage 200-240 V AC, 1/3-phase
Voltage Tolerance -15% / +10%
Input Frequency 45-66 Hz
Input Current (1-phase) 3.0 A
Input Current (3-phase) 1.8 A
Output Specifications
Output Voltage 0 – Input Voltage
Rated Output Current (I2N) 1.4 A
Max Output Current 4.2 A (3×I2N, for 3 sec)
Rated Output Power 0.2 kW
Output Frequency 0-330 Hz
Control Modes Position Control, Speed Control, Torque Control
Interfaces & I/O
Digital Inputs 10 DI (24 V DC)
Digital Outputs 6 DO (24 V DC, PNP)
Analog Inputs 2 AI (0-10 V / 0-20 mA)
Analog Outputs 2 AO (0-10 V / 0-20 mA)
Communication Interface RS-485 (Modbus RTU)
USB Interface 1 x USB (for commissioning)
Encoder Interface Supports incremental encoders (24 V / 5 V)
Safe Torque Off (STO) Yes (IEC 61800-5-2)
Mechanical Data
Width (W) 45 mm
Height (H) 170 mm
Depth (D) 170 mm
Weight 1.35 kg
Mounting DIN Rail or Screw Mounting
Protection Class IP20 (Front/Rear)
Environmental Conditions
Operating Temperature 0°C to +45°C (no derating)
Storage Temperature -40°C to +70°C
Relative Humidity 5% to 95% (non-condensing)
Altitude Up to 1000 m above sea level (no derating)
EMC Compliance EN 61800-3, EN 55011 Class A
Standards & Approvals
CE Mark Yes
UL Certification Yes
CSA Certification Yes
RoHS Compliance Yes
