Home /Products/Servo Systems/Siemens SINAMICS V90 0.1kW Servo Drive With PTI Version IP20 Protection

Siemens SINAMICS V90 0.1kW Servo Drive With PTI Version IP20 Protection

1pcs
MOQ
Negotiable
Price
Siemens SINAMICS V90 0.1kW Servo Drive With PTI Version IP20 Protection
Features Gallery Product Description Chat Now
Features
Specifications
Control Type: Closed Loop Vector Control
Certifications: CE, RoHS
Brightness: NO
Power Rating: 2kW
Adjustable Speed Range: 1:1000 (V/C)
Cooling Method: Fan Cooling
Type: STN
Rated Current: 10A
Phase: Three-phase
Supplier Type: ODM
Feedback Type: Encoder (Incremental/Absolute)
Protect Feature: Totally Enclosed,Waterproof
Control Mode: Position, Velocity, Torque
Ac Voltage: 208-230 / 240 V,220/380V,60V,AC220V
Weight: 2.5kg
Highlight:

0.1kW Servo Drive

,

Siemens SINAMICS V90

,

Servo Drive IP20
Basic Infomation
Place of Origin: Germany
Brand Name: Siemens
Model Number: 6SL3210-5FB10-1UA2
Document: A700000007588090.pdf
Payment & Shipping Terms
Delivery Time: 1WEEK
Payment Terms: T/T
Supply Ability: 20PCS 1WEEK
Product Description

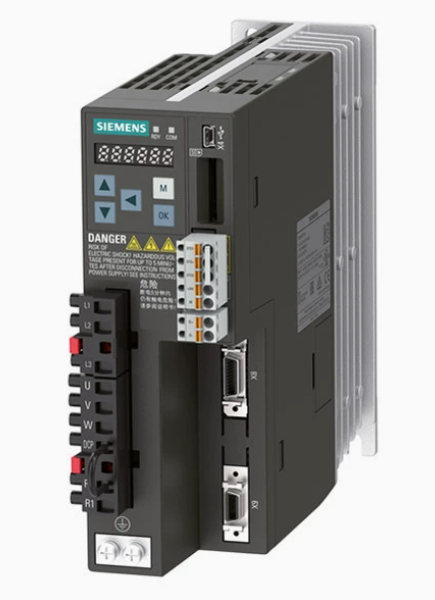

Siemens SINAMICS V90 Servo Drive

Model: 6SL3210-5FB10-1UA2

Description: 0.1 kW Servo Drive with 1/3-phase 200-240 V AC input, PTI version, IP20 protection, Size A frame

Status: Active (PM300)

Electrical Specifications
Input Voltage 200-240 V AC (1/3-phase)
Voltage Tolerance -15% / +10%
Input Frequency 45-66 Hz
Input Current (1-phase) 2.5 A
Input Current (3-phase) 1.5 A
Rated Output Power 0.1 kW
Rated Output Current 1.2 A
Peak Output Current 3.6 A (for 3 sec)
Output Frequency 0-330 Hz
Output Phases 3-phase AC
Control & Interfaces
Control Modes Position Control (PTI), Speed Control, Torque Control
Digital Inputs 10
Digital Outputs 6
Analog Inputs 2
Analog Outputs 2
Encoder Interface Support for incremental encoders (2500-10000 ppr)
Communication Interface PTI (Pulse Train Input)
USB Interface 1 (for commissioning)
Safety Functions
Safe Torque Off (STO) Yes (Integrated)
Safe Stop 1 (SS1) No
Safe Brake Control (SBC) No
Mechanical Specifications
Frame Size Size A
Cooling Type Natural Convection
Dimensions (W×H×D) 45 × 170 × 170 mm
Net Weight 1.35 kg
Mounting DIN Rail or Screw Mounting
Protection Class IP20 (UL Open Type)
Environmental Conditions
Operating Temperature 0°C to +45°C (no derating)
Storage Temperature -40°C to +70°C
Relative Humidity 5% to 95% (non-condensing)
Altitude Up to 1000 m above sea level (no derating)
Vibration Resistance Complies with IEC 60068-2-6
Standards & Approvals
CE Mark Yes
UL Certification Yes
CSA Certification Yes
RoHS Compliance Yes
