Home /Products/Variable Frequency Drives VFD/Honeywell HD660-S-0007-A Frequency Converter with 0-400 Hz Output Frequency Modbus Communication and 150% Rated Current

Honeywell HD660-S-0007-A Frequency Converter with 0-400 Hz Output Frequency Modbus Communication and 150% Rated Current

1 pcs
MOQ
Negotiable
Price
Honeywell HD660-S-0007-A Frequency Converter with 0-400 Hz Output Frequency Modbus Communication and 150% Rated Current
Features Gallery Product Description Chat Now
Features
Specifications
Harmonic Mitigation: Built-in DC Choke Or External Filter
Protection Class: IP20 To IP54
Output Frequency: 0-400 Hz
Storage Temperature Range: -20°C To 70°C
Communication Protocols: Modbus, Profibus, Ethernet/IP
Power Rating: 0.5 KW To 500 KW
Input Voltage: 200-480 V AC
Braking Method: Regenerative Braking Or Dynamic Braking Resistor
Overload Capacity: 150% Rated Current For 1 Minute
Control Method: V/f Control, Vector Control, Sensorless Vector Control
Output Voltage: 0-480 V AC
Mounting Type: Wall-mounted Or Panel-mounted
Display Type: LCD Or LED Display
Operating Temperature Range: -10°C To 50°C
Cooling Method: Forced Air Cooling
Highlight:

0-400 Hz Output Frequency Frequency Converter

,

Modbus Communication Variable Frequency Drive

,

150% Rated Current VFD
Basic Infomation
Brand Name: Honeywell
Certification: Brand new original
Model Number: HD660-S-0007-A
Payment & Shipping Terms
Delivery Time: 5-7 days
Payment Terms: T/T
Supply Ability: 100000 pcs
Product Description

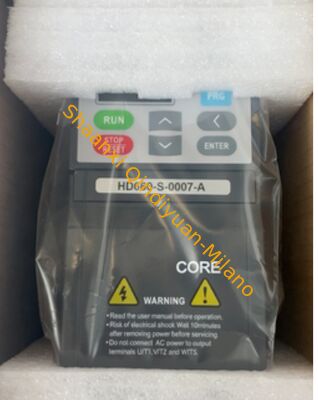

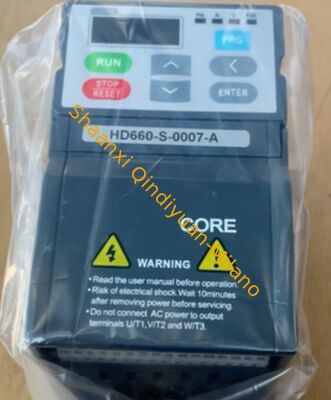

Honeywell HD660-S-0007-A Frequency Converter
Core Electrical Parameters
Parameter Value
Rated Output Power (Constant Torque) 0.75kW
Rated Output Current (Constant Torque) 3.7A
Rated Output Power (Square Torque) 0.75kW
Rated Output Current (Square Torque) 3.7A
Maximum Frequency Vector Control: 0~320Hz; V/F Control: 0~3200Hz
Carrier Frequency 1kHz~16kHz (Automatically Adjustable)
Starting Torque 0.5Hz/150% (No PG, constant torque application)
Speed Range 1:100 (No PG)
Speed Stability ±0.5% (No PG)
Overload Capacity Constant Torque: 150% Rated Current 60s, 180% Rated Current 3s; Square Torque: 120% Rated Current 60s, 150% Rated Current 3s
Physical and Logistics Parameters
Parameter Value
External Dimensions (Width × Height × Depth) 72mm × 142mm × 152mm
Installation Dimensions (A×B×Hole Diameter) 132.7mm × 62.7mm, Ø5mm
Protection Rating IP20 (Rack Mounting)
Cooling Method Forced Air Cooling
Ambient Temperature -20℃~+50℃ (Derating required above 50℃)
Humidity ≤95% RH, Non-condensing
Functional Characteristics
Parameter Value
Control Functions Built-in PID closed-loop control, 16-speed operation, S-curve acceleration/deceleration, DC braking, speed tracking restart, automatic voltage regulation (AVR), fast current limiting, etc.
Communication Functions Standard RS485 interface, supports Modbus-RTU protocol, maximum baud rate 115200BPS
Input/Output 6 digital input terminals (1 supporting 100kHz high-speed pulse), 2 analog input terminals, 1 digital output, 1 relay output, 1 analog output
Protection Functions Overcurrent, overvoltage, undervoltage, overheating, overload, output phase loss, short circuit detection of motor upon power-on, etc.
Tag:

Compact Frequency Inverter

Vector Frequency Inverter

Variable Frequency Drive VFD
