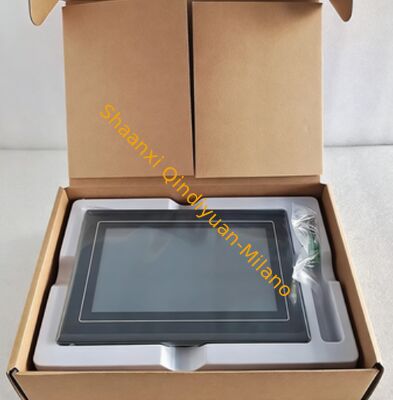

Weinview MT8070IH2WV Touchscreen
Core Hardware Specifications
Display: 7-inch 16:9 widescreen TFT LCD, 800*480 resolution, 65,536 colors; LED backlight with 500 cd/m² brightness and 500:1 contrast ratio; 4-wire resistive touch (≥1 million touches)
Core Components: 32-bit RISC 400MHz CPU; 64MB DDR2 memory; 128MB Flash storage; built-in RTC real-time clock
Interface Configuration
- Serial Ports: 3 total (COM1: RS-232/485 2W/4W; COM2: RS-232; COM3: RS-232/485 2W)
- Ethernet: 1*10/100Base-T (Supports Modbus TCP and Remote Monitoring)
- USB: 1*USB 1.1 Host (for USB Flash Drive/Mouse), 1*USB 2.0 Client (for Program Download)
- Storage Expansion: 1*SD/SDHC Card Slot (supports up to 32GB)
- Audio: Line-out for alarm prompts
Power & Physical Specifications
Power Supply: 24VDC (±20%), 250mA@24V with built-in power isolation protection
Dimensions: 200*146*42.5mm (panel opening: 192*138mm); Weight: approximately 0.85kg
Protection: Front panel rated IP65/NEMA4; fanless cooling design
Environmental & Certification
Operating temperature: 0~45°C; Storage temperature: -20~60°C; Humidity: 10%~90% (non-condensing)
Certified to CE and FCC Class A standards
Software & Protocol Support
Programming Software: EB8000 V2.0 and above (free download, no licensing fees)
Operating System: Windows CE.NET 5.0 with support for VNC, FTP, and EasyAccess remote diagnostics
Protocol Compatibility: Supports mainstream PLCs including Siemens, Mitsubishi, Omron, Schneider, Delta, and others; supports MPI 187.5K
Model Designation Breakdown
- MT: Weinview High-End Series
- 8: Ethernet capability
- 07: 7-inch display
- iH: Standard HMI
- 2: Hardware Version V2
- WV: WeinView Mainland China Channel Version
Model Comparison
| Feature |
MT8070iH2WV |
MT6070iH1WV |
TK6070iH2WV |
| Ethernet |
✓ Yes |
✗ No |
✗ No |
| Serial Ports |
3 |
3 |
2 |
| USB Host |
✓ Yes |
✓ Yes |
✗ No |
| SD Card Support |
✓ Yes |
✓ Yes |
✗ No |
| Positioning |
Mid-to-high-end, Networked |
General Purpose |
Economy |
Typical Applications
- Automated Production Lines and Networked Equipment Monitoring
- Data Acquisition and Remote Maintenance Systems
- Multi-PLC Networking and SCADA System Front-End Interfaces
