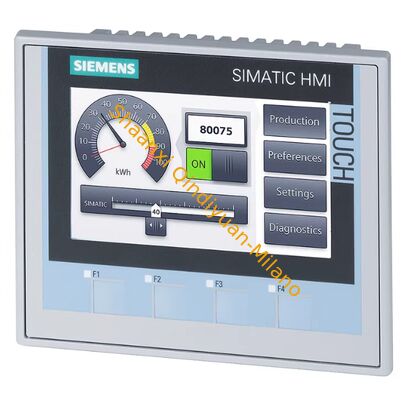

Home /Products/Human Machine Interface HMI/Siemens 6AV2123-2JB03-0AX0 SIMATIC HMI Basic Panels 2nd Generation SIMATIC HMI, KTP900 Basic, Basic Panel, Key/touch operation

Siemens 6AV2123-2JB03-0AX0 SIMATIC HMI Basic Panels 2nd Generation SIMATIC HMI, KTP900 Basic, Basic Panel, Key/touch operation

1PCS
MOQ
Negotiable
Price
Siemens 6AV2123-2JB03-0AX0 SIMATIC HMI Basic Panels 2nd Generation SIMATIC HMI, KTP900 Basic, Basic Panel, Key/touch operation
Features Gallery Product Description Chat Now
Features
Specifications
Power_Consumption: 5 W
Point: 14 (8DI+6DO)
Memory: 512 KB
Part No: D4-PULS-1
Application: Oil And Gas Factory
Number_of_Outputs: 10
Dimensions: 90 Mm X 100 Mm X 75 Mm
Input_Voltage: 24 V DC
Actual Price: Negotiabled
Weight: 0.5 Kg
Power Supply Voltage: 100 – 240VAC.
Operating_Temperature_Range: -20°C To 60°C
Output Method: Relay
Model: S7-1200
Number_of_Inputs: 14
Highlight:

Siemens SIMATIC HMI Basic Panel

,

KTP900 Basic touch panel

,

HMI panel with key operation
Basic Infomation
Place of Origin: Germany
Brand Name: SIEMENS
Model Number: 6AV2123-2JB03-0AX0
Document: 6AV2123-2JB03-0AX0.pdf
Payment & Shipping Terms
Delivery Time: 1week
Payment Terms: T/T
Supply Ability: 1pcs 1week
Product Description

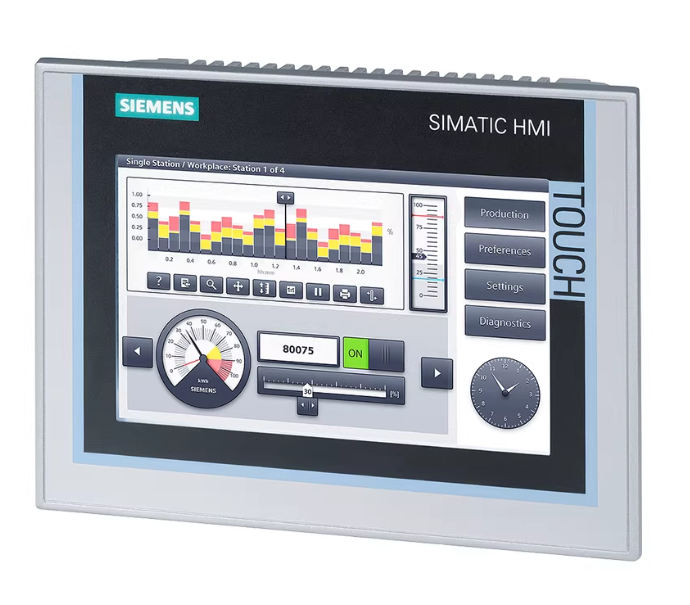

Siemens 6AV2123-2JB03-0AX0 SIMATIC HMI Basic Panels 2nd Generation - KTP900 Basic Panel with combined key and touch operation, featuring a 9" TFT display with 65,536 colors and PROFINET interface.
Product Overview
Product Series SIMATIC HMI Basic Panels 2nd Generation
Order Number 6AV2123-2JB03-0AX0
Product Type KTP900 Basic color PN
Product Status Active Product
Display Specifications
Display Type TFT widescreen display, LED backlight
Screen Size 9 inches (22.86 cm)
Resolution 800 x 480 pixels (WVGA)
Colors 65,536 colors (16-bit)
Brightness 350 cd/m² (typical)
Touchscreen Resistive touchscreen, 4-wire
Backlight Life 50,000 hours (typical)
Operation & Controls
Operation Type Key and touch operation
Function Keys 8 freely assignable function keys (F1-F8)
Key Type Membrane keys with tactile feedback
Virtual Keyboards Integrated numeric and alphanumeric
Hardware Features Real-time clock, adjustable buzzer
Memory & Storage
Flash Memory 4 GB (internal)
RAM 512 MB DDR3
User Data Memory 10 MB available
Recipe Capacity Up to 200 recipes with 1000 data records each
Data Logging Up to 100,000 data records
Interfaces & Connectivity
PROFINET 1 x RJ45, 10/100 Mbps
USB Ports 1 x USB 2.0 host (Type A), 1 x USB 2.0 device (Mini-B)
Audio Buzzer only (no audio output)
Power Supply
Voltage 24 V DC
Voltage Range 20.4 V DC to 28.8 V DC (-15% / +20%)
Power Consumption Max 24 W (1 A at 24 V DC)
Backup Power Supercapacitor for RTC backup (typically 6 weeks)
Physical Dimensions
Dimensions (W x H x D) 242 mm x 176 mm x 45 mm
Weight Approx. 1.2 kg
Cutout Dimensions 222 mm x 158 mm (W x H)
Mounting Panel mounting (recessed), snap-in mounting
Environmental Specifications
Operating Temperature 0°C to 50°C (32°F to 122°F)
Protection Class IP65 (front panel), IP20 (rear side)
Humidity 5% to 95% (non-condensing)
Vibration Resistance 5 Hz to 150 Hz, 0.5 mm amplitude or 1 g acceleration
Certifications & Approvals
  • CE Mark
  • UL Certification
  • CSA Certification
  • RoHS Compliance
  • ATEX Approval (for hazardous areas)
  • IEC 61131-2 Compliance
Software Requirements
Configuration Software WinCC Basic V13 or higher, STEP 7 Basic V13 or higher
Programming Interface Integrated into TIA Portal
Additional Features
  • 8 freely assignable function keys with LED indicators
  • Real-time clock with supercapacitor backup
  • Adjustable buzzer for alarms and user feedback
  • Data logging for process data recording
  • Recipe management for parameter set storage and recall
  • Configurable screen saver
  • Password protection for user access control
  • Remote maintenance via PROFINET/Ethernet
