Home /Products/Human Machine Interface HMI/Siemens 6AV2123-2GB03-0AX0 SIMATIC HMI Basic Panels (2nd Generation) Basic Panel with keypad (8 keys) + touch-screen operation

Siemens 6AV2123-2GB03-0AX0 SIMATIC HMI Basic Panels (2nd Generation) Basic Panel with keypad (8 keys) + touch-screen operation

1PCS
MOQ
Negotiable
Price
Siemens 6AV2123-2GB03-0AX0 SIMATIC HMI Basic Panels (2nd Generation) Basic Panel with keypad (8 keys) + touch-screen operation
Features Gallery Product Description Chat Now
Features
Specifications
Input Points: 36 Points.
Point: 14 (8DI+6DO)
Actual Price: Negotiabled
Supply Voltage Type: AC
Application: Industrial Automation, Process Control, Machinery Control
Output Method: Relay
PowerSupply: 24V DC Or 120/230V AC
Power Supply Voltage: 100 – 240VAC.
CommunicationProtocols: Ethernet/IP, Modbus, Profibus, DeviceNet
Color: Normal
InputType: Digital And Analog
Weight: 0.64 KG
MountingType: DIN Rail Or Panel Mount
Condition: New Original With Sealed
Output Points: 24 Points.
Highlight:

Siemens SIMATIC HMI Basic Panel

,

HMI Basic Panel with keypad

,

touch-screen HMI Basic Panel
Basic Infomation
Place of Origin: Germany
Brand Name: Siemens
Model Number: 6AV2123-2GB03-0AX0
Document: 6AV2123-2GB03-0AX0.pdf
Payment & Shipping Terms
Delivery Time: 1week
Payment Terms: T/T
Supply Ability: 10pcs 1week
Product Description

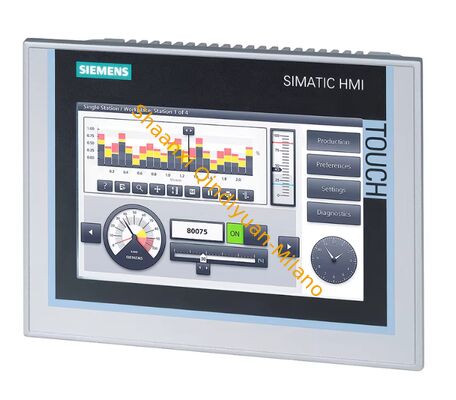

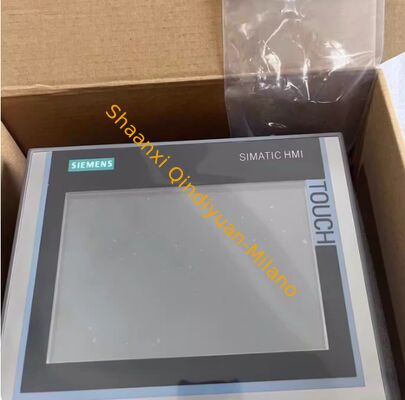

Siemens 6AV2123-2GB03-0AX0 SIMATIC HMI Basic Panel
Basic Panel with keypad (8 keys) and touch-screen operation, 7" widescreen TFT LCD display with LED backlight, PROFINET interface
General Specifications
Product SeriesSIMATIC HMI Basic Panels (2nd Generation)
Order Number6AV2123-2GB03-0AX0
Product StatusActive Mature (Spare Part)
Operation TypeKey and touch operation (8 function keys with LED indicators)
Display Specifications
Screen Diagonal7 inches (17.78 cm)
Display TypeTFT widescreen with LED backlighting
Resolution800 x 480 pixels (WVGA)
Number of Colors65,536 colors (16-bit)
BrightnessApprox. 350 cd/m²
Backlight LifetimeTypically 50,000 hours (MTBF)
Interfaces & Communication
Industrial Ethernet1 x RJ45 (PROFINET, Ethernet/IP, Modbus TCP)
USB Interfaces1 x USB 2.0 Type A (for data transfer, programming, and peripheral connection)
Memory Card Slot1 x microSD card slot (max. 16 GB)
Communication ProtocolsPROFINET RT, Ethernet/IP, Modbus TCP, S7 protocol
Memory & Storage
User Memory (Project Storage)10 MB ROM
Data Logging MemoryUp to 2 GB (via microSD card)
Recipe MemoryUp to 2 GB (via microSD card)
Power Supply
Supply Voltage24 V DC
Voltage Tolerance19.2 V DC to 28.8 V DC (-20% / +20%)
Power ConsumptionTypically 18 W (750 mA at 24 V DC)
Backup FunctionInternal supercapacitor for RTC backup (approx. 7 days)
Mechanical Specifications
Overall Dimensions (W x H x D)215 mm x 150 mm x 45 mm
Mounting TypeFlush mounting (panel cutout: 202 mm x 138 mm)
WeightApprox. 1.1 kg
Protection ClassIP65 (front) / IP20 (rear)
Environmental Conditions
Operating Temperature0°C to 50°C (32°F to 122°F)
Storage Temperature-20°C to 60°C (-4°F to 140°F)
Relative Humidity5% to 95% (non-condensing, no icing)
Vibration Resistance5-150 Hz, 0.5 g (IEC 60068-2-6)
Software & Programming
Configuration SoftwareWinCC Basic V13 or higher, STEP 7 Basic V13 or higher
Operating SystemProprietary Siemens HMI operating system (Linux-based)
Project Transfer MethodsUSB, Ethernet, microSD card
Performance Features
  • Data logging capability via microSD card
  • Recipe management (up to 1000 recipes, each with up to 1000 values)
  • Alarm management (up to 1000 alarms with priority and acknowledgment)
  • Trend display (up to 16 trends per screen)
  • Multi-language support (up to 32 languages, including Asian characters)
  • Integrated diagnostics for hardware and communication errors
Standards & Approvals
  • CE Mark
  • UL Certification (UL 508)
  • CSA Certification (CSA C22.2 No. 61010-1)
  • ATEX Certification (for use in non-hazardous areas)
  • RoHS Compliance (RoHS 2 Directive 2011/65/EU)
Tag:

Panel Mount HMI

HMI Human Machine Interface

Siemens SIMATIC HMI
