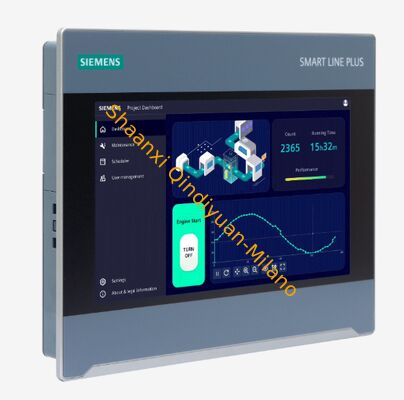

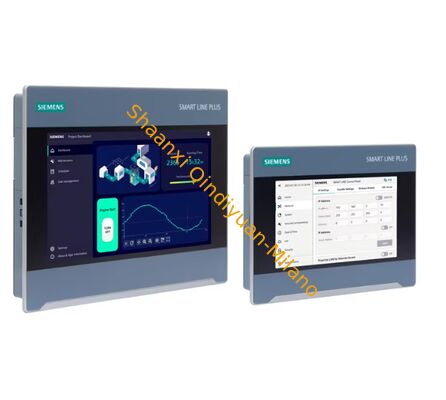

Home /Products/Human Machine Interface HMI/Siemens 6AV6648-0EC11-3AX0 SIMATIC HMI SMART LINE SMART Panel, touch operation, 10" widescreen TFT display

Siemens 6AV6648-0EC11-3AX0 SIMATIC HMI SMART LINE SMART Panel, touch operation, 10" widescreen TFT display

1pcs
MOQ
Negotiable
Price
Siemens 6AV6648-0EC11-3AX0 SIMATIC HMI SMART LINE SMART Panel, touch operation, 10" widescreen TFT display
Features Gallery Product Description Chat Now
Features
Specifications
Number_of_I/O_Points: 128
Power Supply Voltage: 100 – 240VAC.
Mounting_Type: DIN Rail
Output Method: Transistor
Output Points: 24DO
CPU_Speed: 100 MHz
Manufacturer: Siemens
Weight: 300 Grams
Power_Supply: 24 V DC
Condition: New Original With Sealed
Application: Oil And Gas Factory
Output_Type: Digital And Analog
Part Type: Sysmac CPM2A
Memory: 50 KB
Supply Voltage Type: AC
Highlight:

Siemens HMI SMART Panel 10 inch

,

SIMATIC HMI touch operation display

,

SMART LINE widescreen TFT panel
Basic Infomation
Place of Origin: Germany
Brand Name: Siemens
Model Number: 6AV6648-0EC11-3AX0
Document: 6AV6648-0EC11-3AX0.pdf
Payment & Shipping Terms
Delivery Time: 1WEEK
Payment Terms: T/T
Supply Ability: 100PCS 1WEEK
Product Description
Siemens 6AV6648-0EC11-3AX0 SIMATIC HMI SMART LINE SMART Panel - 10" widescreen TFT display with touch operation, designed for industrial automation applications.
Product Overview
Product SeriesSIMATIC HMI SMART LINE
Order Number6AV6648-0CE11-3AX0
Product StatusSpare Part (Active Mature)
Operation TypeTouch screen (resistive)
Display Specifications
Display Type10" widescreen TFT
Resolution1024 x 600 pixels
Color Depth65,536 colors (16-bit)
Brightness350 cd/m²
Backlight Lifespan20,000 hours (MTBF at 25°C)
Viewing AngleH: ±70°, V: ±50°
Communication Interfaces
RS-422/485 Interface1 port (connects to Siemens S7-200/300/400, Mitsubishi, Schneider, Omron PLCs)
Ethernet Interface1 port RJ45 (10/100 Mbps, supports Modbus TCP, S7 protocol)
USB Interface1 host USB type A (data transfer, programming, peripherals)
Real-Time ClockBuilt-in RTC support
Power Supply & Mechanical Specifications
Power Supply Voltage24 V DC
Voltage Tolerance19.2 V - 28.8 V DC
Rated Current Consumption230 mA
Maximum Current Consumption370 mA
Dimensions (W x H x D)283 mm x 187 mm x 51 mm
Weight1185 g (without packaging)
Cutout Dimensions272 mm x 176 mm
Mounting TypePanel mounting (flange)
Environmental Specifications
Operating Temperature0°C to 50°C (32°F to 122°F)
Storage Temperature-20°C to 60°C (-4°F to 140°F)
Relative Humidity10% to 90% (non-condensing)
AltitudeUp to 2000 m above sea level
Protection Class (Front)IP65
Protection Class (Rear)IP20
Configuration & Software
Configuration SoftwareWinCC flexible SMART (V3 or higher)
Supported LanguagesMultiple languages including English, Chinese, German
Open-Source SoftwareYes (provided free of charge on enclosed CD)
Certifications & Standards
  • CE Mark
  • UL Certification
  • CSA Certification
  • RoHS Compliance
  • CCC Certification (for Chinese market)
Additional Features
  • Resistive touch screen (multi-touch capable)
  • Built-in flash memory for project storage
  • Integrated diagnostics for display, communication, and power supply
  • LED indicators for power, communication status, and error messages
  • Configurable data logging via WinCC flexible SMART
  • Recipe management supporting creation and data exchange with PLC
