Siemens 6AV6648-0DE11-3AX0 SIMATIC HMI SMART LINE V4 SMART Panel, touch operation

1PCS
MOQ
Negotiable
Price
Siemens 6AV6648-0DE11-3AX0 SIMATIC HMI SMART LINE V4 SMART Panel, touch operation
Features Gallery Product Description Chat Now
Features
Specifications
Power_Consumption: 5 W
Color: Normal
Output_Type: Relay
Points: 40 (24DI+16DO)
Model: S7-1200
Output Method: Transistor
Operating_Temperature_Range: -20°C To 60°C
Supply Voltage Type: AC
Actual Price: Based On Offer
Condition: New Original With Sealed
Weight: 0.74 KG
Part No: U-05N
Number_of_Outputs: 10
Memory_Size: 50 KB
Application: Oil And Gas Factory
Highlight:

Siemens SIMATIC HMI SMART Panel

,

HMI SMART Panel touch operation

,

SIMATIC HMI SMART V4 panel
Basic Infomation
Place of Origin: Germany
Brand Name: siemens
Model Number: 6AV6648-0DE11-3AX0
Document: 6AV6648-0DE11-3AX0.pdf
Payment & Shipping Terms
Delivery Time: 1WEEK
Payment Terms: T/T
Supply Ability: 10PCS 1WEEK
Product Description

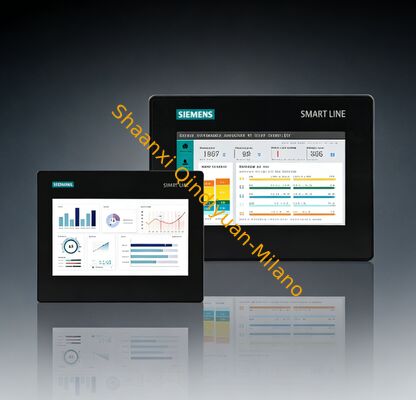

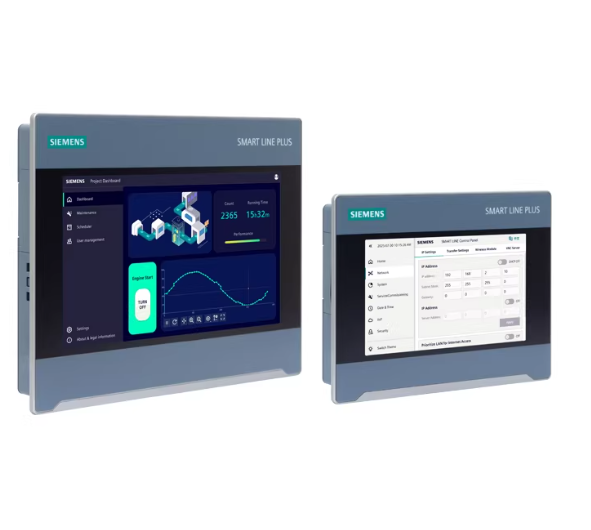

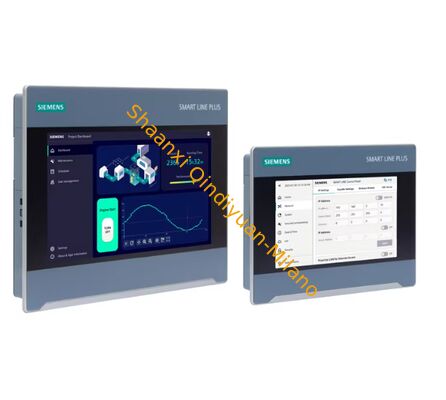

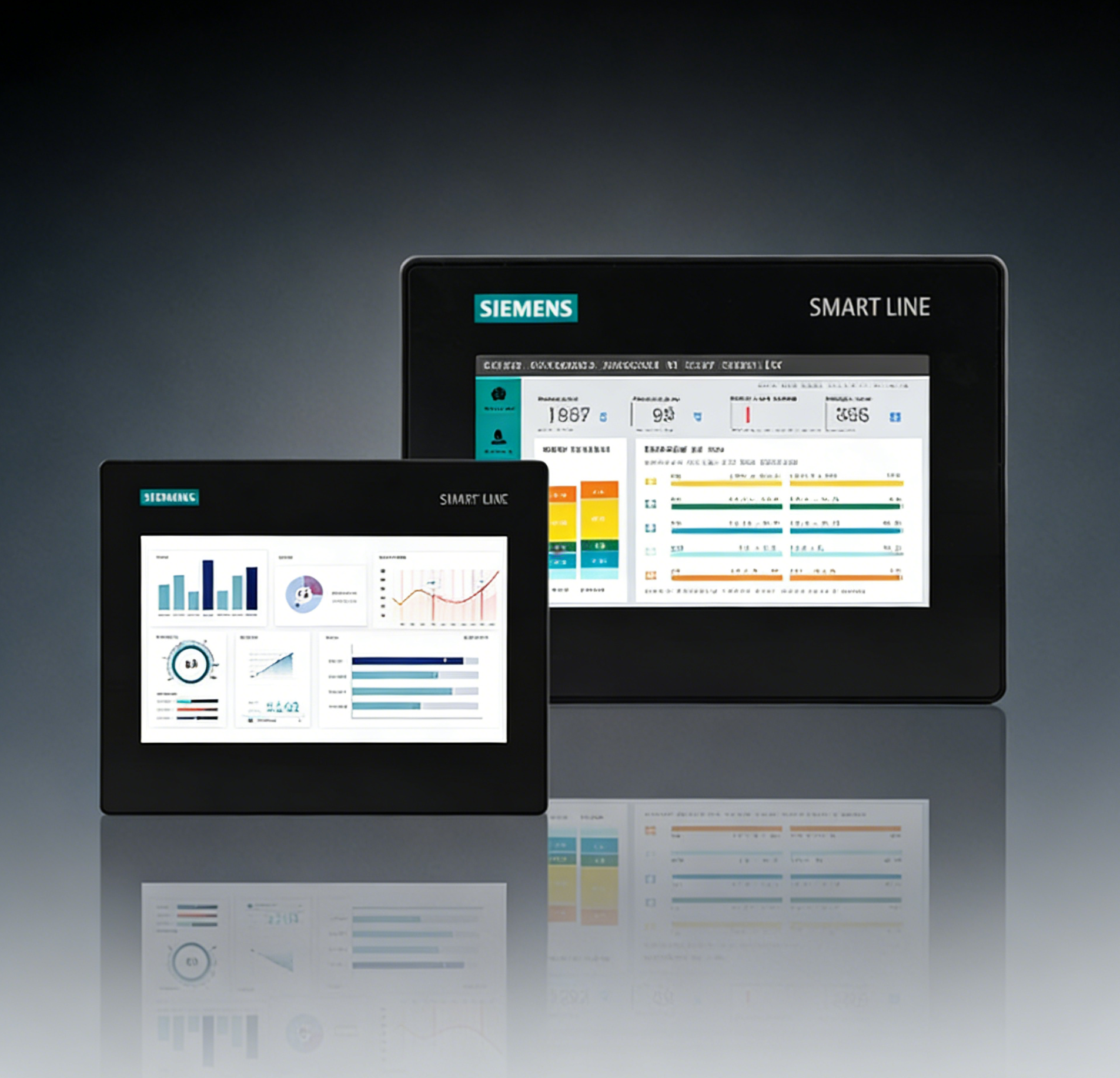

SIMATIC HMI SMART LINE V4 SMART Panel
Professional 10" widescreen touch panel with advanced HMI capabilities for industrial automation applications. Features touch operation with comprehensive connectivity options and robust industrial construction.

Product Status: Active (Spare Part) | Order Number: 6AV6648-0DE11-3AX0

Display Specifications
Display Type 10.1" widescreen TFT color display
Resolution 1024 × 600 pixels
Color Depth 16 million colors
Backlight Type LED (20,000 hours typical lifetime)
Viewing Angle Horizontal: ±70°, Vertical: ±50°
Communication Interfaces
Serial Interface 1 × RS-422/485 (PPI, MPI, Modbus RTU, ASCII)
Ethernet Interface 1 × RJ45 (10/100 Mbps, TCP/IP, UDP, Modbus TCP)
USB Interface 1 × Host USB Type A (data storage, configuration)
Supported Protocols S7 Protocol, Modbus RTU, Modbus TCP, ASCII, PPI, MPI
Power Requirements
Power Supply 24 V DC industrial power
Voltage Range 19.2 V DC to 28.8 V DC
Current Consumption 230 mA rated, 370 mA maximum
Power Consumption 9 W typical, 14 W maximum
Mechanical Specifications
Front Panel Dimensions 272 mm × 184 mm
Installation Cutout 252 mm × 164 mm
Depth 50 mm
Weight Approx. 1.2 kg
Mounting Type Panel mounting (IP65 front protection)
Environmental Ratings
Operating Temperature 0°C to 50°C (32°F to 122°F)
Storage Temperature -20°C to 60°C (-4°F to 140°F)
Relative Humidity 5% to 95% (non-condensing)
Protection Class IP65 front, IP20 rear
Vibration/Shock Resistance 5-150 Hz vibration, 15g shock resistance
Performance Features
  • ARM-based 600 MHz processor with 128 MB RAM, 512 MB Flash
  • Data logging to USB storage with recipe management
  • Supports up to 1000 alarms with comprehensive management
  • Vector graphics, animation, and trend display capabilities
  • Built-in Real-Time Clock with ±1 minute/month accuracy
  • Multi-language support including Chinese, English, German
  • Multi-level password protection for security
  • Horizontal and vertical installation support
Certifications & Compliance
Safety Standards CE, UL, CSA, China Compulsory Certificate (CCC)
Environmental Compliance RoHS compliant
Software Configuration WinCC flexible SMART
Additional Options Optional IoT module (WiFi/4G) for expansion
