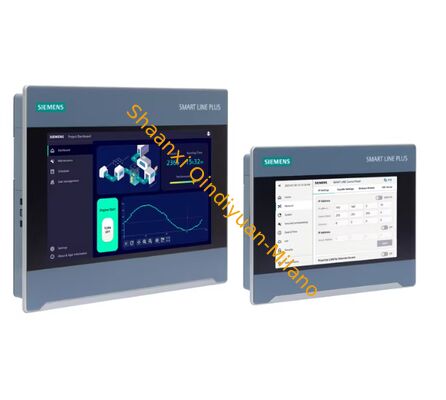

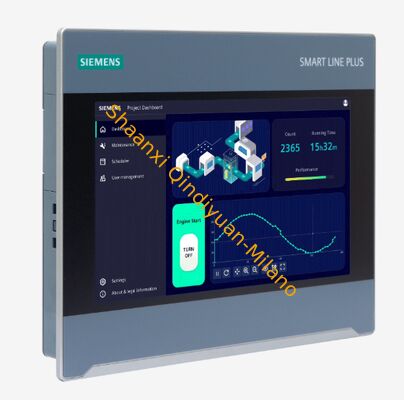

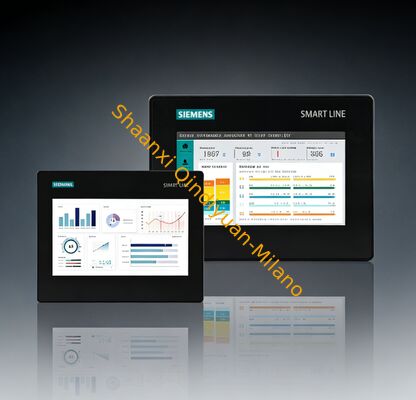

Siemens 6AV6648-0DC11-3AX0 SIMATIC HMI SMART LINE V4 7" widescreen TFT touch panel, 16 million colors, RS-422/485, Ethernet

1pcs
MOQ
Negotiable
Price
Siemens 6AV6648-0DC11-3AX0 SIMATIC HMI SMART LINE V4 7" widescreen TFT touch panel, 16 million colors, RS-422/485, Ethernet
Features Gallery Product Description Chat Now
Features
Specifications
Displaytype: Touchscreen LCD
Mountingtype: Panel Mount
Memorycapacity: 128 MB Flash, 64 MB RAM
Inputtype: Capacitive Touch
Operatingsystem: Embedded Linux
Screensize: 7 Inches
Weight: 500 Grams
Operatingvoltage: 24 V DC
Storagetemperaturerange: -30°C To 70°C
Operatingtemperaturerange: -20°C To 60°C
Resolution: 800 X 480 Pixels
Productname: Human-Machine Interface (HMI)
Dimensions: 190 Mm X 140 Mm X 40 Mm
Highlight:

Siemens SIMATIC HMI 7-inch touch panel

,

HMI touch panel with RS-422/485

,

7-inch TFT HMI with Ethernet
Basic Infomation
Place of Origin: Germany
Brand Name: Siemens
Model Number: 6AV6648-0DC11-3AX0
Document: 6AV6648-0DC11-3AX0.pdf
Payment & Shipping Terms
Delivery Time: 5-7work day
Payment Terms: T/T
Supply Ability: 10pcs 1week
Product Description
Siemens 6AV6648-0DC11-3AX0 SIMATIC HMI SMART LINE V4
7" widescreen TFT touch panel with 16 million colors, featuring RS-422/485 and Ethernet connectivity. Configurable with WinCC flexible SMART for industrial automation applications.
Key Specifications
Parameter Value
Product Series SIMATIC HMI SMART LINE V4
Display Size 7" widescreen TFT (17.78 cm)
Resolution 800 × 480 pixels
Color Depth 16 million colors
Touch Operation Resistive touch panel
Processor ARM Cortex-A8, 600 MHz
Memory 256 MB DDR3 RAM, 256 MB Flash
Communication Interfaces
  • Ethernet: 1 × RJ45 (10/100 Mbps)
  • Serial: 1 × RS-422/485 (supports PPI, MPI, Modbus RTU)
  • USB: 1 × Host USB Type A (2.0)
  • Protocol Support: S7 Protocol, Modbus RTU, PPI, MPI, Ethernet/IP
  • Optional IoT module (WiFi/4G) expansion
Power & Environmental
Supply Voltage 24 V DC (19.2 V to 28.8 V DC)
Power Consumption Approx. 5.5 W
Operating Temperature 0°C to 50°C (32°F to 122°F)
Protection Class Front: IP65, Rear: IP20
Mechanical Specifications
Dimensions (W×H×D) 192 mm × 138 mm × 55 mm
Panel Cutout 182 mm × 128 mm
Weight Approx. 0.85 kg
Mounting Horizontal or vertical panel mounting
Additional Features
  • Real-Time Clock with battery backup
  • External storage via Micro SD card (up to 32 GB)
  • Backlight lifetime: ≥ 30,000 hours
  • Brightness: Approx. 350 cd/m²
  • Viewing Angle: H: 170°, V: 160°
Compatibility & Standards
Supported PLCs: S7-200/300/400/1200/1500, Mitsubishi, Schneider, Omron, Allen-Bradley
Configuration Software: WinCC flexible SMART V4 or higher
Certifications: CE, UL, CSA, RoHS, CCC, VDE
