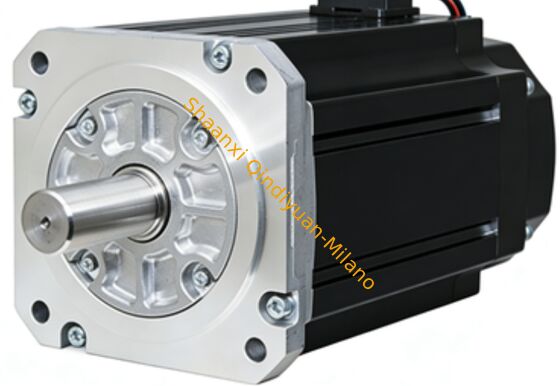

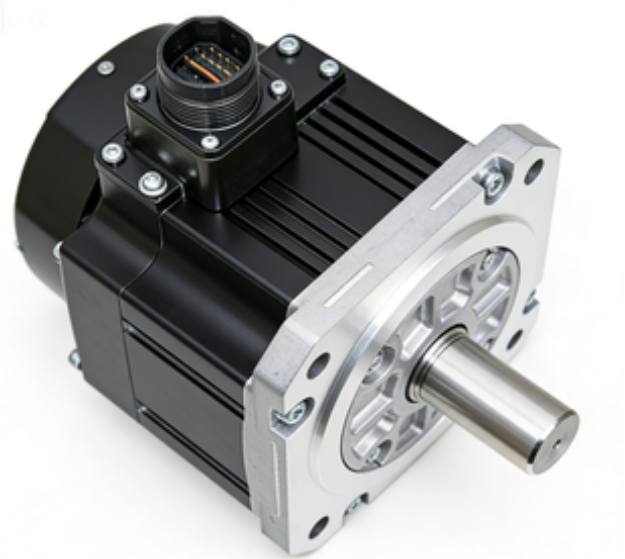

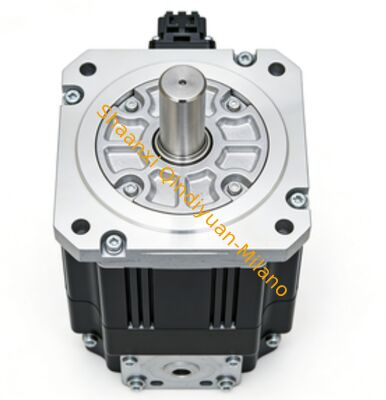

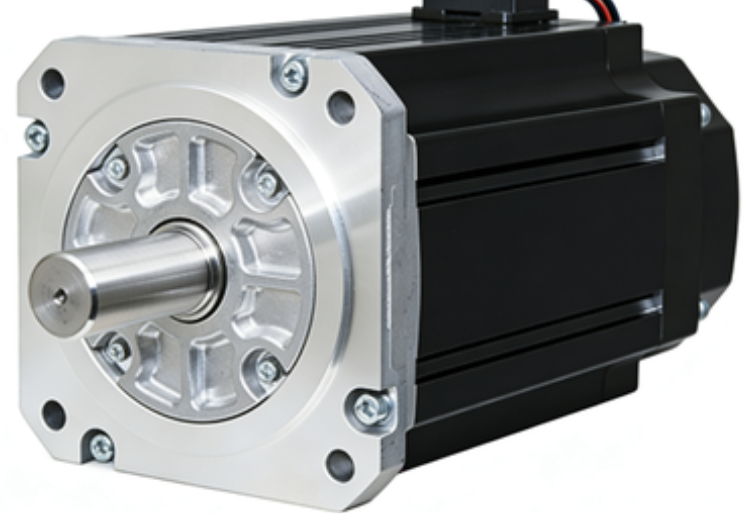

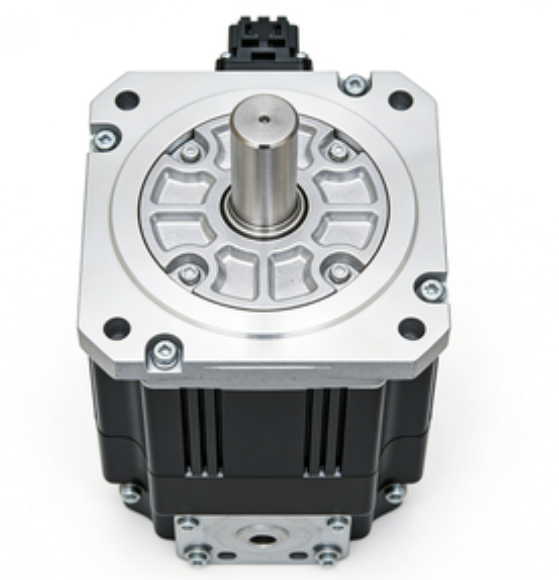

MITSUBISHI HK-ST702Wj AC Brushless Rotary Servo Motor With Straight Shaft

1
MOQ
1071.5$
Price
MITSUBISHI HK-ST702Wj AC Brushless Rotary Servo Motor With Straight Shaft
Features Gallery Product Description Chat Now
Features
Specifications
Factory Price: Yes
Material: 2mm Hard Aluminum Plate
Rated Torque: 6.0N.m
Use: Industrial
Control Method: PWM
Delivery: Worldwide
Stepper Motor: 4 Wire Stepper Motor
Model: SG90
Encoder: 17 Bits/23 Bits
Packing: CTN Or Customized
Resistance: 10.0±10% Ω/phase
Payment: TT
Construction: PM
Stock Location: China
Efficiency: IE 2
Highlight:

MITSUBISHI HK-ST702Wj

,

Rotary Servo Motor

,

AC Brushless Servo Motor
Basic Infomation
Place of Origin: china
Brand Name: MITSUBISHI
Model Number: HK-ST702Wj
Document: sv2006-5c.pdf
Payment & Shipping Terms
Packaging Details: pieces
Delivery Time: 5-8days
Payment Terms: T/T
Product Description
MITSUBISHI HK-ST702WJ AC Brushless Rotary Servo Motor
The MITSUBISHI HK-ST702WJ is a medium-capacity inertial rotary servo motor from the Mitsubishi MELSERVO-J5 series, engineered for industrial automation applications requiring optimal balance between inertia and power. This motor is ideal for medium-load high-precision motion control applications, with the "J" suffix indicating specific shaft end configurations.
Technical Specifications
Parameter Value
Rated Output Power 7 kW (7000 W)
Rated Torque 33.4 Nm
Maximum Torque 100 Nm
Rated Speed 2000 rpm
Maximum Speed 3000 rpm
Rated Current 28 A (with 200 Vac servo amplifier)
Power Supply Voltage Grade 200 Vac grade
Encoder Resolution 26-bit battery-free absolute encoder (approximately 67,108,864 ppr)
Flange Size 176 * 176 mm
Protection Grade IP67 (motor body)
Operating Temperature Range 0 ~ +60 ℃
Rotor Inertia Medium inertia (approximately 0.0065 kg・m²)
Key Product Features
  • Medium Inertia Balanced Design: Optimized for medium loads, providing excellent dynamic response and operational stability for machine tool spindles and large conveyor systems
  • Battery-Free Absolute Encoder: 26-bit high-resolution encoder eliminates backup battery requirements, reducing maintenance costs while enhancing positioning accuracy
  • High Protection Grade: IP67-rated protection ensures reliable operation in harsh industrial environments with dust and humidity exposure
  • Reliable Braking Option: Optional electromagnetic hold brake for vertical axes and safety-critical applications with automatic braking upon power loss
  • Industrial Protocol Compatibility: Fully compatible with MR-J5 series amplifiers and supports CC-Link IE TSN and other industrial Ethernet protocols for high-speed precision control
Industrial Application Scenarios
  • Machine Tool Spindle Drive Systems
  • Large-Scale Automated Assembly Lines
  • Packaging Machinery
  • Precision Inspection Equipment
  • Industrial Robotics
  • Automated Storage and Retrieval Systems
This AC brushless rotary servo motor with straight shaft and built-in absolute feedback encoder delivers exceptional performance for demanding industrial automation applications requiring precision, reliability, and durability.
