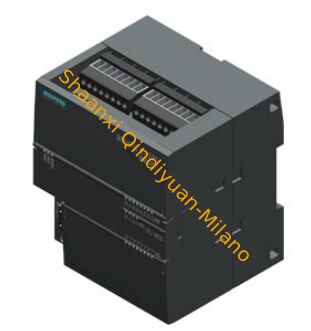

Siemens 6ES7288-1ST30-0AA0 SIMATIC S7-200 SMART, CPU ST30, Standard CPU, DC/DC/DC, onboard I/O: 18 DI 24 V DC; 12 DO 24 V DC

1PCS
MOQ
Negotiable
Price
Siemens 6ES7288-1ST30-0AA0 SIMATIC S7-200 SMART, CPU ST30, Standard CPU, DC/DC/DC, onboard I/O: 18 DI 24 V DC; 12 DO 24 V DC
Features Gallery Product Description Chat Now
Features
Specifications
Part Type: Sysmac CPM2A
Points: 40 (24DI+16DO)
Power_Consumption: 5 W
Application: Oil And Gas Factory, Power Plant
Actual Value: Negotiabled Price
Operating_Temperature_Range: -20°C To 60°C
Dimensions: 90 X 100 X 75 Mm
Output Typt: Relay
Actual Price: Negotiabled
Number_of_Outputs: 10
Input Points: 36 Points.
CPU_Speed: 100 MHz
Manufacturer: Siemens
Supply Voltage Type: AC
Output Points: 16DO
Highlight:

Siemens S7-200 SMART CPU ST30

,

SIMATIC S7-200 DC/DC/DC CPU

,

Standard CPU with onboard I/O
Basic Infomation
Place of Origin: Germany
Brand Name: Siemens
Model Number: 6ES7288-1ST30-0AA0
Document: 6ES7288-1ST30-0AA0.pdf
Payment & Shipping Terms
Delivery Time: 5-7Workday
Payment Terms: T/T
Supply Ability: 20pcs 1week
Product Description
Siemens 6ES7288-1ST30-0AA0 SIMATIC S7-200 SMART CPU
Standard CPU ST30 with DC/DC/DC configuration, featuring onboard I/O: 18 digital inputs 24V DC and 12 digital outputs 24V DC.
Compact industrial automation controller with integrated Ethernet and RS485 interfaces, supporting PROFINET IO and multiple industrial protocols.
Technical Specifications
Parameter Value
Article Number 6ES7288-1ST30-0AA0
Product Type CPU ST30 DC/DC/DC
Programming Software STEP 7 Micro/WIN SMART
Mounting Type Rail mounting (Standard DIN rail)
Power Supply Voltage 20.4-28.8 V DC (24 V DC rated)
Max Input Current 624 mA
Program Memory 18 kbyte
User Data Memory 12 kbyte
Total Memory 30 kbyte
Digital Inputs 18 points (24 V DC)
Digital Outputs 12 points (Transistor, 0.5A per channel)
High-speed Outputs 3 points
Ethernet Interface 1 RJ45 (10/100 Mbit/s auto-detect)
RS 485 Interface 1 (187.5 kbps max baud rate)
Operating Temperature 0-55 °C (horizontal) / 0-45 °C (vertical)
Dimensions (W×H×D) 110×100×81 mm
Weight 375 g (approx.) / 0.461 kg (net)
Degree of Protection IP20
Country of Origin China
Key Features
  • MicroSDHC Card support for data storage
  • High-speed processing: 150 ns/instruction for bit operations
  • 6 counters (5 at 100 kHz single phase or 3 at 50 kHz A/B phase)
  • 8 PID controller loops for process control
  • PROFINET IO Controller support (since V2.4)
  • Connect up to 8 IO devices with 128 byte input/output data each
  • Supported protocols: TCP/IP, S7 communication, PPI, Modbus RTU, USS
  • Hardware clock with 7-day backup time
  • Comprehensive EMC immunity and emission compliance
Performance Characteristics
Typical operation times: 1.2 µs for word operations, 3.6 µs for floating point operations. Maximum shielded cable lengths: 500m for digital inputs, 500m for digital outputs.
