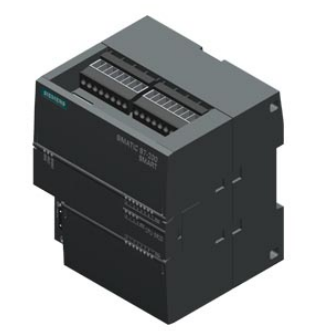

Siemens 6ES7288-1ST30-0AA0 SIMATIC S7-200 SMART, CPU ST30,

Siemens 6ES7288‑1ST30‑0AA0 SIMATIC S7‑200 SMART CPU ST30, DC/DC/DC, 18DI 24VDC +12DO 24VDC,Built‑in PROFINET Ethernet

6ES7288‑1ST30‑0AA0 is standard CPU module for Siemens SIMATIC S7‑200 SMART PLC series. Power‑supply type: DC power input, DC digital input, DC transistor output(DC/DC/DC). On‑board fixed I/O:18‑point 24VDC digital inputs,12‑point 24VDC transistor outputs. Equipped with 30 KB program/data memory, built‑in PROFINET Ethernet port. Transistor‑type high‑speed output supports pulse train output for simple motion control. It can install optional signal boards and expand external digital/analog modules. This compact controller is widely used for medium‑sized automation control projects.

💡Core Function:Transistor PLC controller,logic processing,Ethernet communication,high‑speed pulse output.

• ✅ On‑board PROFINET Ethernet Port 10/100M adaptive Ethernet, support Modbus‑TCP, TCP/UDP protocol, easy connection with HMI, VFD, upper computer.
• ✅ DC/DC/DC Transistor Output 24V DC transistor outputs, suitable for high‑speed pulse output, stepping / servo drive control.
• ✅ DC Wide Power Input 20.4~28.8V DC Stable 24V industrial power supply design, good anti‑interference performance.
• ✅ Strong Expandability Supports 1 piece signal board(RS485/RS232/Analog) + up to 6 expansion modules.
• ✅ Rich Built‑in Functions High‑speed counter, PTO pulse output, PID closed‑loop regulation, interrupt function.
• ✅ DIN Rail Installation Compact structure, standard rail mounting, save cabinet inner space.
• ✅ Global Certifications CE, RCM, RoHS compliant, suitable for worldwide export automation projects.

• Packaging Machinery
• Conveyor & Logistics Equipment
• Water Treatment Systems
• HVAC Automation
• Food Processing Equipment
• Textile Machinery
• Small Automatic Assembly Line

Material conveyor belt,packaging equipment,pump control cabinet,fan unit,sorting machine,small positioning motion equipment

• Net Weight:0.375 kg/pc
• Single carton gross weight:0.55 kg/pc
• Condition:100% Original Brand New,individual export carton
• Warranty: 12‑month official manufacturer warranty
