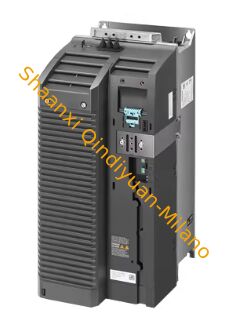

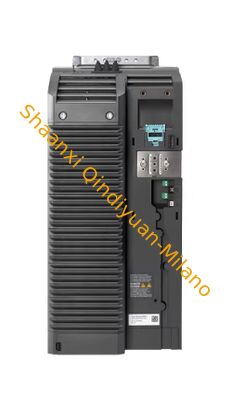

Siemens 6SL3210-1PE26-0UL0 SINAMICS G120 POWER MODULE PM240-2 WITHOUT FILTER WITH BUILT IN BRAKING CHOPPER

1pcs
MOQ
Negotiable
Price
Siemens 6SL3210-1PE26-0UL0 SINAMICS G120 POWER MODULE PM240-2 WITHOUT FILTER WITH BUILT IN BRAKING CHOPPER
Features Gallery Product Description Chat Now
Features
Specifications
Overload Capacity: 150% Rated Current For 1 Minute
Protection Features: Overvoltage, Undervoltage, Overcurrent, Short Circuit, Thermal Overload
Control Method: V/F Control, Vector Control, Sensorless Vector Control
Soft Stop Time: 0.1 To 60 Seconds
Cooling Method: Forced Air Cooling
Input Voltage: 200-480V AC
Operating Temperature: -10°C To 50°C
Communication Protocols: Modbus, Profibus, Ethernet/IP
Power Range: 0.5 KW To 500 KW
Output Voltage: 0-480V AC
Mounting Type: Wall-mounted Or Panel-mounted
Starting Torque: Up To 150% Rated Torque
Bypass Function: Manual And Automatic Bypass Available
Soft Start Time: 0.1 To 60 Seconds
Frequency Range: 0-400 Hz
Highlight:

Siemens SINAMICS G120 power module

,

PM240-2 VFD without filter

,

variable frequency drive with braking chopper
Basic Infomation
Place of Origin: Germany
Brand Name: Siemens
Model Number: 6SL3210-1PE26-0UL0
Document: 6SL3210-1PE26-0UL0_datashee...en.pdf
Payment & Shipping Terms
Delivery Time: 5work day
Payment Terms: T/T
Supply Ability: 10pcs 1week
Product Description
Siemens 6SL3210-1PE26-0UL0 SINAMICS G120 Power Module
Product Overview

The SINAMICS G120 PM240-2 Power Module is a high-performance drive component designed for industrial applications. This model operates without a filter but includes a built-in braking chopper for efficient energy dissipation.

Technical Specifications
Parameter Value
Article Number 6SL3210-1PE26-0UL0
Input Voltage 3AC 380-480V ±10%
Input Frequency 47-63 Hz
Rated Output Current (LO) 60.00 A
Rated Output Current (HO) 45.00 A
Max Output Current 90.00 A
Rated Power IEC 400V (LO) 30.00 kW
Rated Power IEC 400V (HO) 22.00 kW
Rated Power NEC 480V (LO) 40.00 hp
Rated Power NEC 480V (HO) 30.00 hp
Output Frequency (Vector Control)
0-200 Hz
Output Frequency (V/f Control)
0-550 Hz
Overload Capability (LO)
150% for 3s, 110% for 57s, 100% for 240s
Overload Capability (HO)
200% for 3s, 150% for 57s, 100% for 240s
Power Factor
0.95
Efficiency
0.98
Sound Pressure Level
72 dB
Power Loss
0.77 kW
Environmental & Physical Specifications
Cooling Method
Forced Air Cooling
Ambient Temperature (LO)
-20 to +40 °C (-4 to 104 °F)
Ambient Temperature (HO)
-20 to +50 °C (-4 to 122 °F)
Degree of Protection
IP20 (UL open type)
Dimensions (HxWxD)
472 x 200 x 237 mm
Net Weight
18.30 kg
Installation Altitude
1000 m (3280.84 ft)
Relative Humidity
Max 95% RH (no condensation)
Key Features
  • Built-in braking chopper for dynamic braking applications
  • High overload capability for demanding industrial environments
  • Wide input voltage range with ±10% tolerance
  • Forced air cooling for optimal thermal management
  • Compliant with UL, cUL, CE, C-Tick (RCM), and SEMI F47 standards
  • Supports both vector and V/f control modes
  • Compatible with long motor cable runs (up to 300m unshielded)
Electrical Connections
Conductor Cross-section (Line/Motor)
10.00-35.00 mm² (AWG 8-AWG 2)
Conductor Cross-section (DC Link/Braking Resistor)
2.50-16.00 mm² (AWG 14-AWG 6)
Max Motor Cable Length (Unshielded)
300 m
Max Motor Cable Length (Shielded)
200 m
