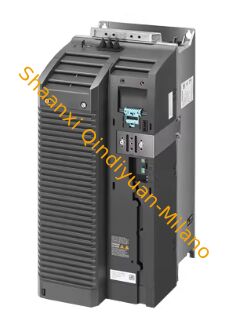

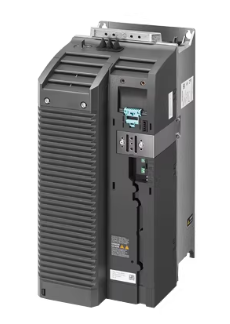

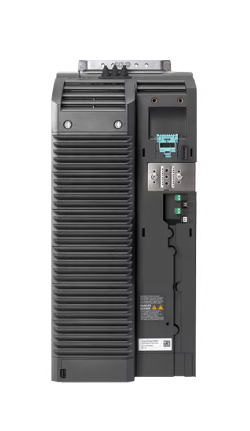

6SL3210-1PE26-0UL0 SINAMICS G120 POWER MODULE PM240-2

The Siemens 6SL3210-1PE26-0UL0 is a high-power SINAMICS G120 Power Module PM240-2, engineered as the core power stage for demanding industrial drive applications. Rated at 22 kW (30 HP) with 380–480 V 3AC input, this unfiltered module features an integrated braking chopper and belongs to Frame Size D of the modular G120 platform. As a power-only unit, it must be paired with a compatible Control Unit (e.g., CU240E-2, CU250S-2) to form a complete drive system. The “unfiltered” design makes it ideal for installations where external EMC filtering is already implemented or where space/weight optimization is critical inside shielded cabinets. With robust overload capacity, high efficiency, and seamless TIA Portal integration, this module delivers reliable motor control for heavy-duty pumps, fans, compressors, conveyors, and extruders in medium-to-large automation systems.

• Integrated Braking Chopper Standard
  Built-in dynamic braking circuit enables rapid deceleration of high-inertia loads without external hardware, reducing system complexity and cabinet footprint.
• High-Power Density in Frame Size D
  Delivers 22 kW output in a compact 200 × 473 × 298 mm enclosure, enabling dense panel mounting and easy retrofit into existing drive cabinets.
• Unfiltered Design for Flexible EMC Compliance
  Optimized for use with external line filters or in pre-filtered environments, avoiding redundant filtering costs while maintaining signal integrity and thermal performance.
• Robust Overload Capability
  Supports 150% nominal current for 60 seconds and 200% for 3 seconds, handling start-up surges and transient loads common in crushers, mixers, and extruders.
• Modular SINAMICS G120 Architecture
  Separates power and control functions; compatible with multiple CU options (standard, safety, positioning) to tailor functionality precisely to application requirements.
• TIA Portal & STARTER Integration
  Fully engineered via Siemens standard tools for unified parameterization, diagnostics, trace analysis, and firmware updates across the entire drive ecosystem.
• Energy-Efficient IGBT Topology
  High-efficiency switching and optimized modulation reduce losses; supports energy-saving modes for variable-torque loads to lower operational costs.
• Global Certification & Long Lifecycle
  CE, UL, cUL, EAC certified; part of Siemens’ 10+ year availability commitment with full spare parts, repair, and technical support worldwide.

Applicable Industries:

• Water/Wastewater Treatment Plants
• Heavy Manufacturing & Steel Mills
• Mining & Mineral Processing
• Large HVAC & District Energy Systems
• Chemical & Petrochemical Processing
• Bulk Material Handling & Conveyors

Typical Applications:
Large centrifugal pumps, primary/secondary fans, compressors, belt conveyors, extruders, crushers, mixers, boiler feed pumps, cooling tower fans.

[Image Placeholder: Application Scene]
*Suggested Image:* PM240-2 Frame D mounted alongside CU250S-2 inside a floor-standing drive cabinet powering a large pump station, with visible busbars, status LEDs, and external EMC filter (if used), demonstrating real-world high-power integration.

[Image Placeholder: Warehouse Stock]
*Suggested Image:* Original Siemens sealed boxes with clear “PM240-2 22kW Unfiltered” label visible, stored on reinforced pallet racking in climate-controlled warehouse, emphasizing authenticity and proper heavy-item handling.

• Net Weight: Approx. 12.5 kg / pc
• Gross Weight: Approx. 14.8 kg / pc (original sealed box)
• Packaging: Factory-sealed anti-static bag + branded carton + foam cushioning
• Warranty: 24-month Siemens manufacturer warranty (from date of delivery)
• Supply Note: Genuine Siemens product with traceable serial number; Control Unit sold separately; suitable for project integration, MRO replacement, and export DDP shipment
