Siemens 6AV2124-0JC01-0AX0 TP900 Comfort Touch Operation TFT Widescreen
Product Overview

The Siemens TP900 Comfort is a 9-inch TFT widescreen touch panel designed for industrial automation applications. Featuring robust construction and comprehensive connectivity options, this HMI device offers reliable operation in demanding environments.

Display Specifications
Parameter Specification
Display Type TFT widescreen
Screen Diagonal 9 inches
Display Resolution 800 × 480 pixels
Number of Colors 16.7 million
Backlight MTBF 80,000 hours (at 25°C)
Backlight Dimmable Yes (0-100%)
Control & Operation
Operation Type: Touch operation
Direct Keys: 40 touch buttons as S7 input I/O
Onscreen Keyboards: Numeric and alphanumeric
Function Keys: None (touch-only operation)
Connectivity & Protocols
Interfaces
  • Industrial Ethernet: 1 interface (2 ports switch)
  • RS 485: 1 interface (RS 422/485 combined)
  • USB: 2 × USB 2.0 ports
  • USB Mini B: 1 × 5-pole
  • SD Card Slots: 2
Supported Protocols
  • PROFINET, PROFINET IO, IRT (as of WinCC V12)
  • PROFIBUS, MPI
  • TCP/IP, DHCP, SNMP, DCP, LLDP
  • EtherNet/IP, MODBUS
Technical Specifications
Parameter Value
Power Supply 24 V DC (19.2 V to 28.8 V range)
Current Consumption 0.75 A (rated value)
Power Input 18 W (typical)
Processor Type X86
User Data Memory 12 MB
Operating System Windows CE 6.0 (pre-installed)
Environmental & Physical Specifications
Operating Temperature: 0°C to 50°C (55°C with entry ID: 64847814)
Storage Temperature: -20°C to 60°C
Relative Humidity: Max. 90% (no condensation)
Front Protection: IP65 (Type 4 and Type 4x)
Rear Protection: IP20
Mounting: Vertical (portrait and landscape formats possible)
Maximum Inclination: 35° (without external ventilation)

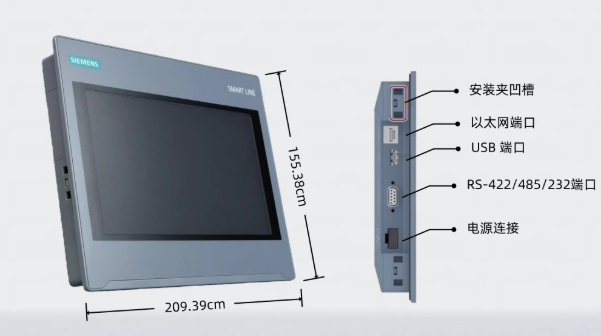

Dimensions & Weight
Front Dimensions: 274 mm × 190 mm
Overall Depth: 63 mm
Mounting Cutout: 251 mm × 166 mm
Weight: 1.9 kg (without packaging), 2.6 kg (with packaging)
Software & Languages
Configuration Software: WinCC Comfort/Advanced/Professional (TIA Portal) from V11
Languages Supported: 32 online/runtime languages, 32 project languages
