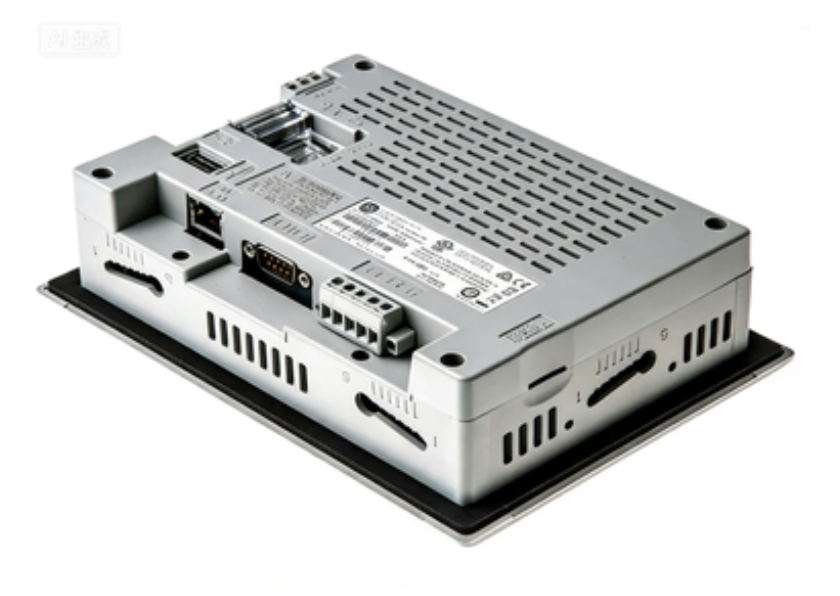

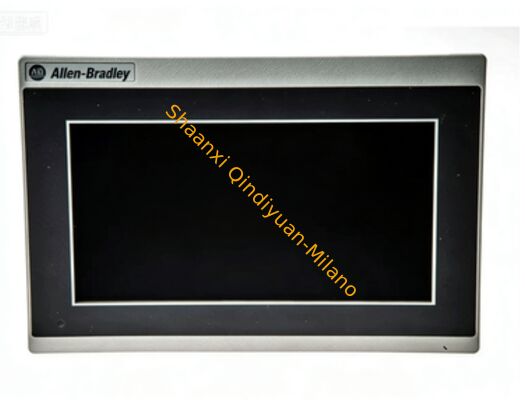

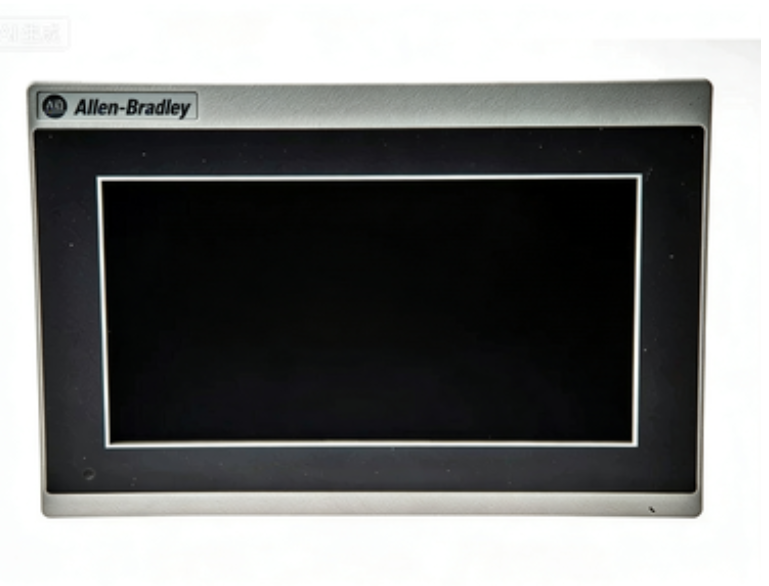

Allen Bradley 2711R-T7T Terminal Human Machine Interface HMI Relay Output Typt

1
MOQ
Negotiable
Price
Allen Bradley 2711R-T7T Terminal Human Machine Interface HMI Relay Output Typt
Features Gallery Product Description Chat Now
Features
Specifications
CPU_Type: CPU 1214C
Manufacturer: Siemens
Color: Normal
Output Method: Transistor
Weight: 0.46 KG
Power_Consumption: 5 W
Output Typt: Relay
Points: 40 (24DI+16DO)
Part Type: Sysmac CPM2A
Mounting_Type: DIN Rail
Memory_Size: 50 KB
Part No: SH-64R2
Number_of_Outputs: 10
Supply Voltage Type: AC
Input_Voltage: 24V DC
Highlight:

Allen Bradley 2711R-T7T

,

Terminal Human Machine Interface HMI

,

AB Human Machine Interface HMI
Basic Infomation
Place of Origin: USA
Brand Name: Allen-Bradley
Model Number: 2711R-T7T
Document: 2711r-td001_-en-p.pdf
Payment & Shipping Terms
Delivery Time: 5-7work day
Payment Terms: T/T
Supply Ability: 10PCS 1week
Product Description
Parameter Value
Model Number 2711R-T7T
Product Series PanelView 800
Product Type Human Machine Interface (HMI) Terminal
Manufacturer Allen-Bradley / Rockwell Automation
Lifecycle Status Active
Display Specifications
Display Size 7 inches
Display Type Color TFT active matrix LCD, widescreen format
Resolution 800 x 480 pixels (WVGA)
Display Colors 65,536 colors (65K)
Display Area 153.6 x 86.6 mm (6.05 x 3.41 in.)
Backlight Type LED
Backlight Lifespan 40,000 hours minimum
Touchscreen Type Analog resistive
Touchscreen Durability 1 million presses
Power Specifications
Input Voltage Range 18-32 V DC (nominal: 24 V DC)
Power Consumption 11 W maximum (0.40 A at 24 V DC)
Power Connection Terminal block
Wire Gauge Requirements Single-wire: 0.33-2.08 mm² (22-14 AWG);
Dual-wire: 0.33-1.31 mm² (22-16 AWG)
Wire Type Copper, 90°C rated
Processor & Memory
Processor 800 MHz
Memory 256 MB
Real-Time Clock Integrated with replaceable lithium battery (CR2032)
Battery Lifespan 5 years minimum @ 25°C
External Storage microSD card slot (supports SDHC, FAT32/16, up to 32 GB)
Communication Ports
Ethernet Port 1 x 10/100 Mbps RJ45 (supports EtherNet/IP, DHCP, static IP)
Serial Ports 1 x RS-232 (9-pin male D-shell)
1 x RS-422/RS-485 (5-pin terminal block, isolated)
USB Ports 1 x USB host port (for programming and file transfer)
1 x USB device port (not for customer use)
Communication Protocols
Supported Protocols EtherNet/IP, Modbus TCP, Modbus RTU, DF1
Mechanical Specifications
Mounting Type Panel mount
Dimensions (HxWxD) 144 x 197 x 54 mm (5.67 x 7.76 x 2.13 in.)
Cutout Dimensions (HxW) 125 x 179 mm (4.92 x 7.05 in.)
Weight 0.651 kg (1.44 lb)
Enclosure Rating IP65 (front face)
Mounting Clearances Top: 51 mm, Bottom: 51 mm, Sides: 25 mm, Back: 51 mm
Environmental Specifications
Operating Temperature 0-50°C (32-122°F)
Storage Temperature -25-70°C (-13-158°F)
Relative Humidity 5-95% (non-condensing)
Vibration 5-2000 Hz, 1g peak
Shock 15g peak (operating), 30g peak (non-operating)
Software & Applications
Programming Software Connected Components Workbench
Supported Features Alarm management, Recipe management (up to 50 recipes), Data logging, Multiple language support
Application Memory 128 MB
Firmware Update via USB or microSD card
Certifications
Certifications CE, RoHS, Australian RCM
Compliance Standards EN 61000-6-2 (Industrial Immunity), EN 61000-6-4 (Industrial Emissions), IEC 61131-2
