Home /Products/Human Machine Interface HMI/Siemens 6AV2123-2GB03-0AX0 SIMATIC HMI KTP700 Basic Panel (2nd Generation) TFT Color Display

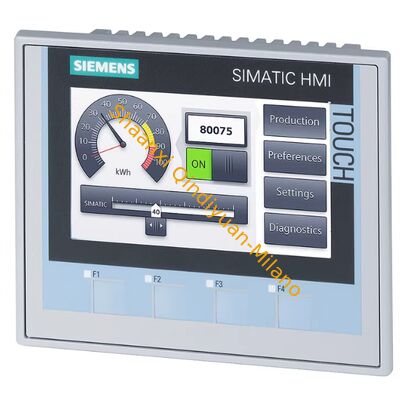

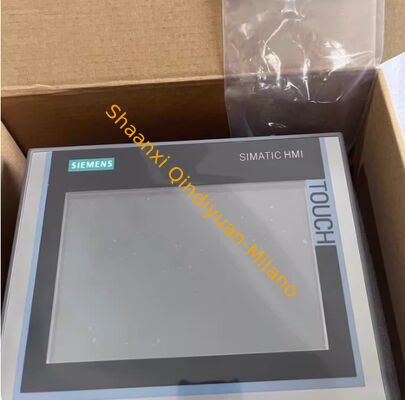

Siemens 6AV2123-2GB03-0AX0 SIMATIC HMI KTP700 Basic Panel (2nd Generation) TFT Color Display

1pcs
MOQ
Negotiable
Price
Siemens 6AV2123-2GB03-0AX0 SIMATIC HMI KTP700 Basic Panel (2nd Generation) TFT Color Display
Features Gallery Product Description Chat Now
Features
Specifications
Storagetemperaturerange: -30°C To 70°C
Mountingtype: Panel Mount
Operatingsystem: Embedded Linux
Productname: Human-Machine Interface (HMI)
Resolution: 800 X 480 Pixels
Memorycapacity: 128 MB RAM, 512 MB Flash
Operatingvoltage: 24 V DC
Screensize: 7 Inches
Communicationports: Ethernet, USB, RS232, RS485
Operatingtemperaturerange: -20°C To 60°C
Dimensions: 190 Mm X 140 Mm X 40 Mm
Certifications: CE, UL, RoHS
Inputmethod: Capacitive Touch
Displaytype: Touchscreen LCD
Supportedprotocols: Modbus, OPC UA, Ethernet/IP
Highlight:

Siemens SIMATIC HMI KTP700 Basic Panel

,

HMI KTP700 TFT color display

,

SIMATIC HMI Basic Panel 2nd generation
Basic Infomation
Place of Origin: Germany
Brand Name: Siemens
Model Number: 6AV2123-2GB03-0AX0
Document: 6AV2123-2GB03-0AX0.pdf
Payment & Shipping Terms
Delivery Time: 5-7days
Payment Terms: T/T
Supply Ability: 10pcs 1week
Product Description

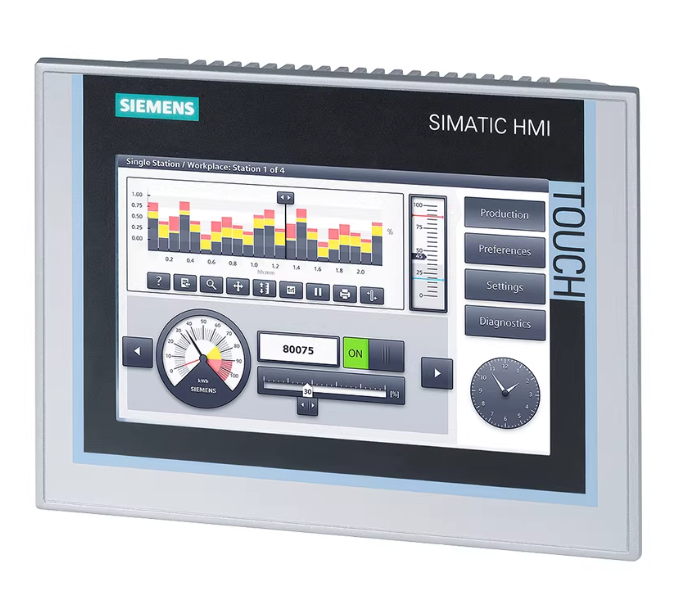

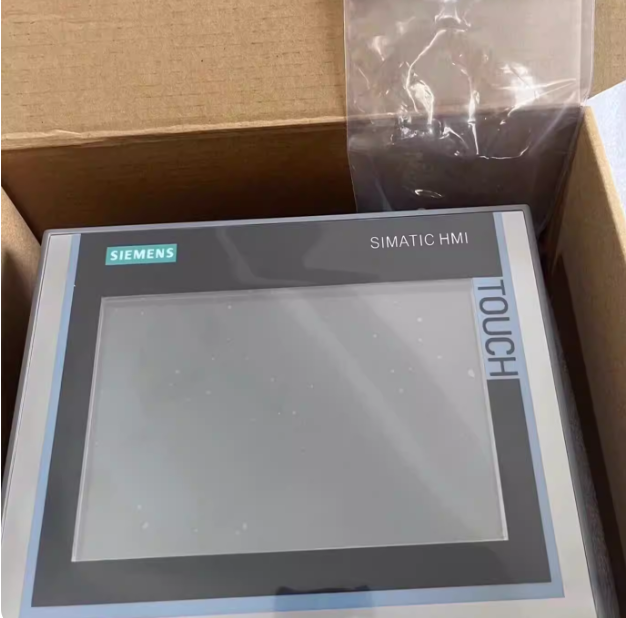

Siemens 6AV2123-2GB03-0AX0 SIMATIC HMI KTP700 Basic Panel (2nd Generation) TFT Color Display
Product Overview
The SIMATIC HMI KTP700 Basic Panel (2nd Generation) is a robust industrial human-machine interface featuring a 7-inch TFT color display with resistive touch technology, designed for reliable operation in demanding industrial environments.
Technical Specifications
Product Order Number6AV2123-2GB03-0AX0
Product SeriesBasic Panel (2nd Generation)
Display TypeTFT Color Display
Screen Diagonal7 in (177.8 mm)
Display Resolution800 x 480 pixel (WVGA)
Number of Colors65,536 (16-bit)
Backlight TypeLED
Backlight DimmableYes (software-configurable)
Touch TechnologyResistive (single-touch)
Physical Function Keys8 (configurable)
Mounting OrientationLandscape (fixed)
Supply Voltage24 V DC
Permissible Voltage Range19.2 V DC to 28.8 V DC
Typical Current Consumption250 mA
Maximum Current Consumption350 mA
ProcessorARM-based
Flash Memory10 MB (user data memory)
RAM64 MB
Hardware Real-Time ClockYes (retentive)
Industrial Ethernet Interfaces1 x PROFINET (RJ45)
PROFIBUS DP InterfaceNo
USB Interfaces1 x USB 2.0 (micro USB, service port)
SD Card SlotNo
Audio OutputNo
PROFINET IO SupportYes
Modbus TCP SupportYes
S7 Communication SupportYes (native with SIMATIC PLCs)
Environmental Specifications
Operating Temperature0 °C to +50 °C
Storage Temperature-20 °C to +60 °C
Relative Humidity (Operation)5% to 95% (non-condensing)
Front Protection ClassIP65
Rear Protection ClassIP20
Software & Features
Configuration SoftwareTIA Portal (WinCC Basic V13 or higher)
Maximum Runtime LanguagesUnlimited (project-dependent)
Maximum Project Languages16
Recipe ManagementYes (limited by memory)
Alarm SystemYes (with buffer and acknowledgment)
Trend ViewsYes (basic functionality)
Data LoggingYes (to USB or network)
VBScript SupportLimited (basic scripting)
User ManagementYes (basic user rights)
Physical Dimensions & Certifications
Front Housing MaterialPlastic
Cutout Dimensions (W x H)197 mm x 135 mm
Front Dimensions (W x H)214 mm x 158 mm
Device Depth39 mm
Net Weight~780 g (without packaging)
CE CertificationYes
cULus CertificationYes
ATEX Zone 2/22 ApprovalYes
IECEx Zone 2/22 ApprovalYes
Marine Approval (DNV GL/ABS)No
Railway Approval (EN 50155/EN 50121-4)No
Tag:

Panel Mount HMI

HMI Human Machine Interface

Siemens SIMATIC HMI
