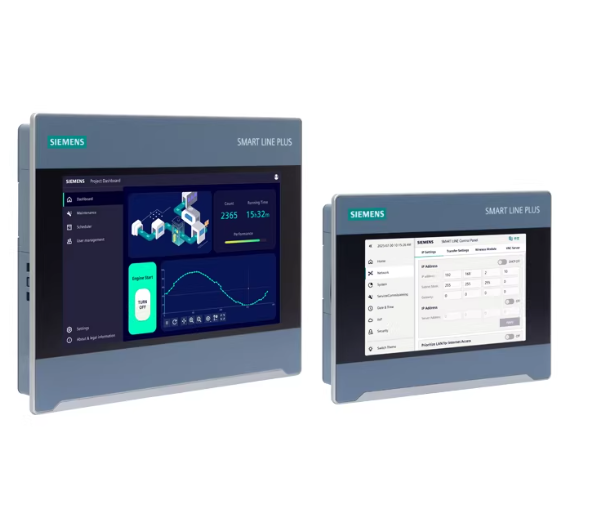

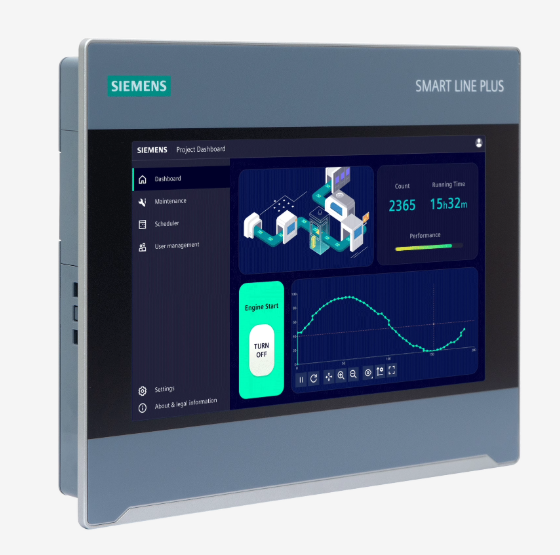

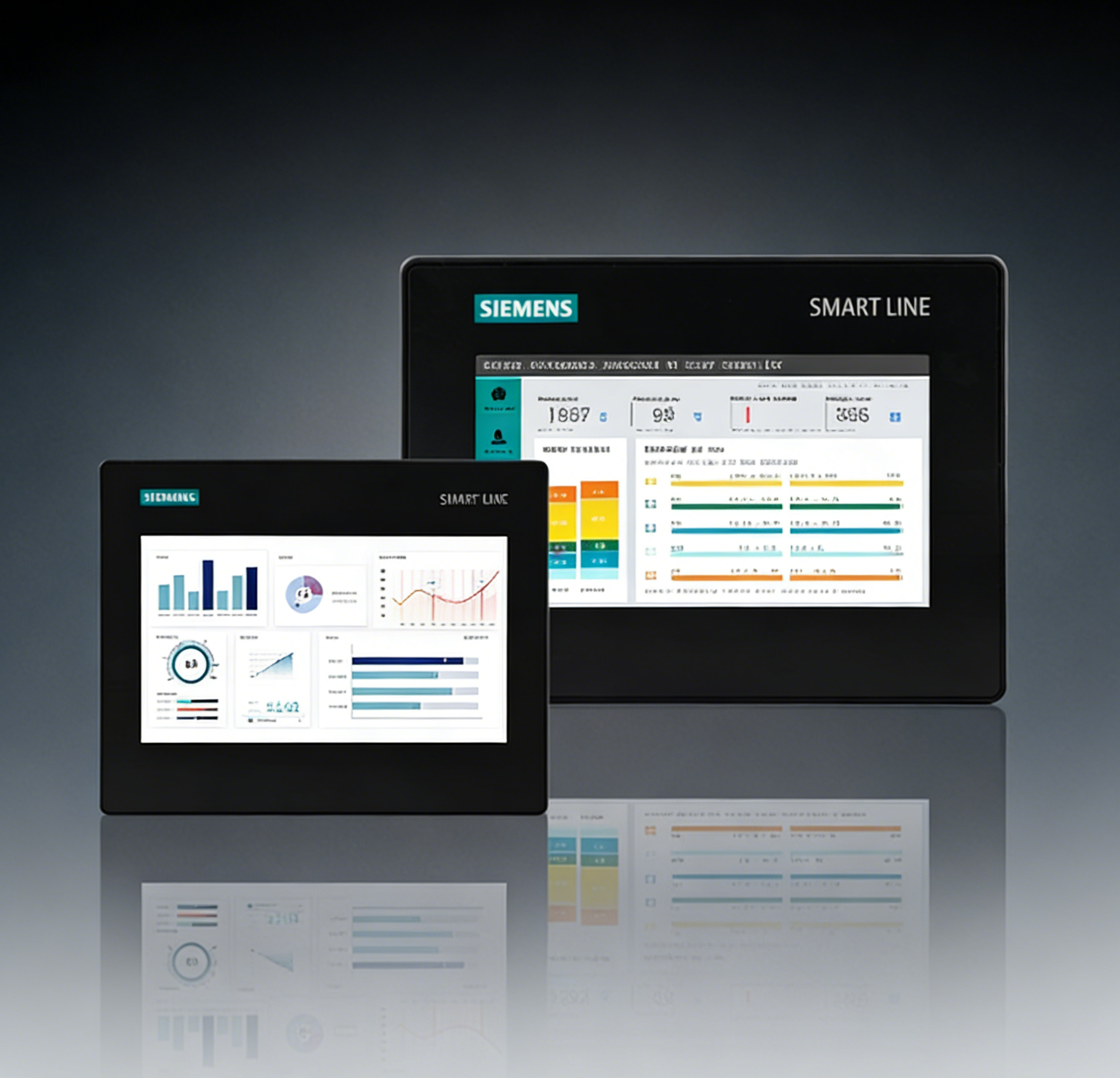

Siemens 6AV6648-0CC11-3AX0 SIMATIC HMI SMART 700 IE V3

1
MOQ
Negotiable
Price
Siemens 6AV6648-0CC11-3AX0 SIMATIC HMI SMART 700 IE V3
Features Gallery Product Description Chat Now
Features
Specifications
Communication Protocols: Modbus, Profibus, Ethernet/IP, CANopen
Cooling Method: Forced Air Cooling
Soft Start Time: 0 To 60 Seconds Adjustable
Overload Capacity: 150% For 60 Seconds
Mounting Type: Wall-mounted Or Panel-mounted
Output Voltage: 0-480V AC
Starting Torque: Up To 150% At 0.5 Hz
Power Range: 0.5 KW To 500 KW
Soft Start Current Limit: Up To 300% Of Rated Current
Input Voltage: 200-480V AC
Operating Temperature Range: -10°C To 50°C
Frequency Range: 0 To 400 Hz
Dimensions: Varies By Model, Typically Compact Design
Protection Features: Overcurrent, Overvoltage, Undervoltage, Overtemperature, Short Circuit
Control Method: V/f Control, Vector Control, Sensorless Vector Control
Highlight:

Siemens SIMATIC HMI SMART 700

,

HMI SMART 700 IE V3

,

SIMATIC HMI with touchscreen
Basic Infomation
Place of Origin: Germany
Brand Name: Siemens
Model Number: 6AV6648-0CC11-3AX0
Document: 6AV6648-0CC11-3AX0.pdf
Payment & Shipping Terms
Delivery Time: 5-7work day
Payment Terms: T/T
Supply Ability: 10PCS 1week
Product Description
SIMATIC HMI SMART 700 IE V3
Order Number: 6AV6648-0CC11-3AX0
Professional 7-inch HMI panel with TFT display and industrial Ethernet connectivity
Display Specifications
Screen Diagonal 7 inches
Display Resolution 800 × 480 pixels
Number of Colors 65,536
Backlight MTBF 20,000 hours (at 25°C)
Touch Screen Yes
Technical Specifications
Processor: ARM, 600 MHz
User Memory: 8 MB Flash, RAM available
Supply Voltage: 24 V DC (19.2-28.8 V range)
Current Consumption: 200 mA rated, 340 mA max
Interfaces: 1× Industrial Ethernet, 1× RS-485/422, 1× USB
Operating Temperature: 0 to +50°C (vertical installation)
Communication & Protocols
TCP/IP DHCP EtherNet/IP MODBUS
HMI Functionality
Alarm System Yes (with buffer and acknowledgment)
Recipe Management 10 recipes, 100 data records each
Variables Capacity 800 variables per device
Message Buffer 256 entries (ring buffer, retentive)
User Management 50 users, 32 user rights
Supported Languages 5 runtime, 32 project languages
PLC Compatibility
Supported: S7-200, LOGO!, Mitsubishi (FX), OMRON (LINK/Multilink), Modicon (Modbus)
Configuration Software: WinCC flexible Smart V3, WinCC flexible Standard

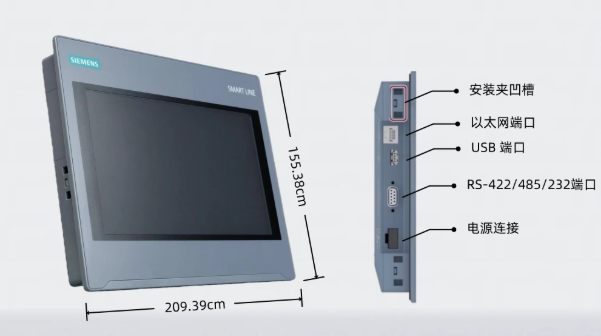

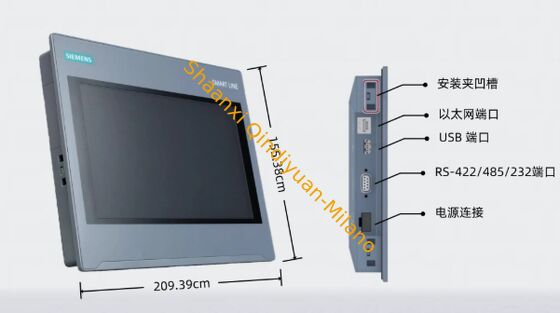

Physical Dimensions
Housing Front 209 × 155 mm
Mounting Cutout 192 × 138 mm
Overall Depth 39 mm
Weight 765 g
Certifications & Approvals
CE Mark Class A EMI
