Home /Products/Industrial Control Automation/FANUC A06B-6130-H002 βi Series Servo Amplifier Module with 6.8A Output Current and Fiber-Optic Interface for 3 HP Motor Power

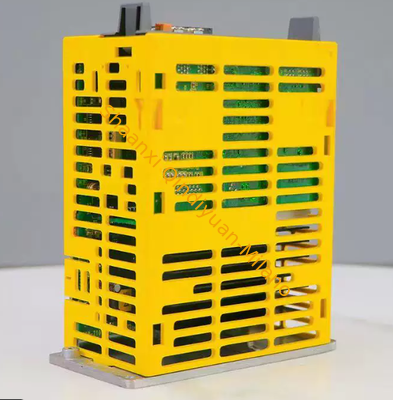

FANUC A06B-6130-H002 βi Series Servo Amplifier Module with 6.8A Output Current and Fiber-Optic Interface for 3 HP Motor Power

1
MOQ
300$
Price
FANUC A06B-6130-H002 βi Series Servo Amplifier Module with 6.8A Output Current and Fiber-Optic Interface for 3 HP Motor Power
Features Gallery Product Description Chat Now
Features
Specifications
Productname: Industrial Control Automation
Installationtype: Panel Mount / DIN Rail
Dimensions: 100mm X 75mm X 50mm
Humidity Range: 5% To 95% Non-condensing
Power Supply Voltage: 100 – 240VAC.
Color: Normal
Point: 14 (8DI+6DO)
Operatingtemperaturerange: -20°C To 60°C
Mounting Type: DIN Rail / Panel Mount
Communication Protocol: Modbus, Ethernet/IP, Profibus
Mountingtype: DIN Rail
Connectivityoptions: Ethernet, RS-485, Wireless
Application: Process Control
Networkinterface: 10/100/1000 Mbps Ethernet Ports
Highlight:

FANUC βi Series Servo Amplifier

,

Servo Amplifier with Fiber-Optic Interface

,

6.8A Servo Amplifier for 3 HP Motor
Basic Infomation
Place of Origin: China
Brand Name: FANUC
Certification: CO
Model Number: A06B-6130-H002
Payment & Shipping Terms
Packaging Details: Orijinal
Delivery Time: 3-5 days
Payment Terms: T/T
Product Description
FANUC DRIVER A06B-6130-H002
Product Overview

The FANUC A06B-6130-H002 is a βi Series Servo Amplifier Module (model BSVM1-20i), designed to provide precise motion control for servo motors in industrial automation and CNC machinery. It uses a fiber-optic interface for high-speed communication with the CNC controller.

Core Specifications
Input Power 200-240 VAC, 50/60 Hz
Input Current 8.0 A
Output Max 240 VAC, 6.8 A
Motor Power Approximately 3 HP
Weight 4.08 kg (9.00 lbs)
Environmental & Physical Data
Operating Temperature 0 to 55°C
Storage Temperature -20 to 60°C
Humidity Up to 90% RH (non-condensing)
Vibration Below 0.5G during operation
Dimensions 15.00 x 7.50 x 18.50 cm
Standards EN50178 and UL508C
Manual Reference B-65322
System Integration & Communication

This amplifier connects to a CNC host via an I/O link, using a ladder program to send and receive commands and status information. The interface operates in two modes—direct command and peripheral equipment control—to execute positioning operations and manage machine tools.

Note: If you are integrating this drive into a specific CNC system and need more detailed configuration guidance, please contact our technical support team.
