Home /Products/Variable Frequency Drives VFD/INOVANCE MD200S0.4B-CAN CANopen Micro Drive Networked Small Inverter

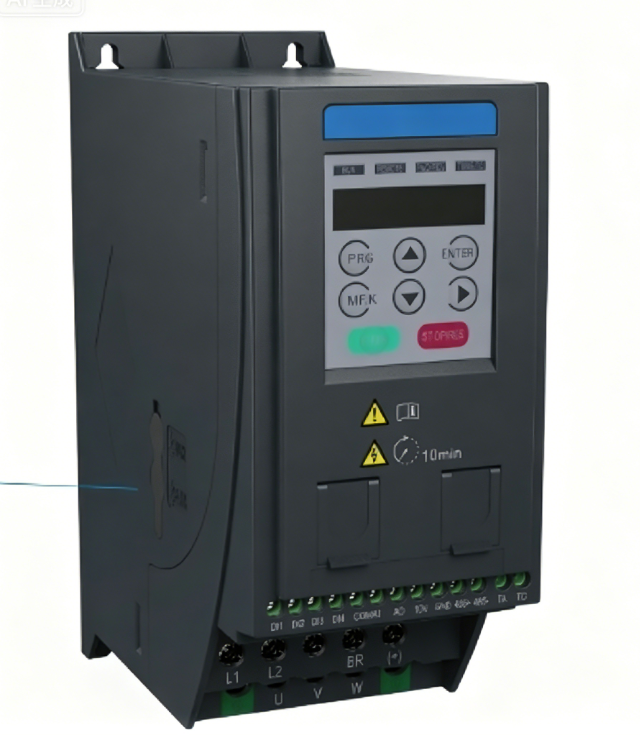

INOVANCE MD200S0.4B-CAN CANopen Micro Drive Networked Small Inverter

1
MOQ
690-760$
Price
INOVANCE MD200S0.4B-CAN CANopen Micro Drive Networked Small Inverter
Features Gallery Product Description Chat Now
Features
Specifications
Processortype: Microprocessor-based
Analog Input: 1 Way 0~10V Or 0~20mA
Mounting Type: Wall-mounted Or Panel-mounted
Power Supply Voltage: 100 – 240VAC.
Highlight:

INOVANCE MD200S frequency converter

,

0.4KW variable frequency drive

,

CAN bus compatible VFD
Basic Infomation
Place of Origin: China
Brand Name: Inovance
Certification: CO
Model Number: MD200S0.4B-CAN
Document: MD200_Fl_EN_Singles_Web_V2.....4.pdf
Payment & Shipping Terms
Delivery Time: 5-8days
Payment Terms: T/T
Supply Ability: 96PCS
Product Description
Model:MD200S0.4B-CAN 0.4KW
📦 Product Overview

The INOVANCE MD200S0.4B-CAN is a CANopen micro drive delivering 0.4 kW (0.5 HP) with networked bus control for small three-phase asynchronous AC motors. A specialized variant of the ultra-compact MD200S series with integrated CANopen fieldbus communication, it accepts single-phase 220V input and provides sensorless vector control (SVC) in the smallest footprint available. Purpose-built for multi-axis automation systems, distributed control architectures, and OEM machines requiring real-time networked drive control, the MD200S0.4B-CAN eliminates the need for external gateways and simplifies complex machine wiring at an exceptional price point.

✨ Product Advantages
  • CANopen Micro Drive — Integrated CANopen DS301/DS402 protocol enables direct connection to CAN-based PLCs and motion controllers without gateways
  • Networked Small Inverter — Real-time bus control reduces wiring complexity, I/O count, and commissioning time in multi-drive automation systems
  • Single-phase 220V Input — Runs from standard mains power, eliminating 3-phase infrastructure while delivering professional vector control performance
  • Ultra-compact Footprint — The smallest CANopen-capable drive available enables high-density multi-axis installations in minimal panel space
  • Dual Communication Ports — CANopen plus RS485 Modbus RTU provide flexible connectivity options for diverse network topologies
  • DIN-rail Mounting — Tool-free snap-on installation alongside other CAN nodes dramatically simplifies distributed control cabinet assembly
  • Silent Fanless Operation — Natural convection cooling with zero acoustic noise for laboratories, medical facilities, and noise-sensitive environments
  • Built-in Braking Unit — Integrated braking chopper enables fast, controlled deceleration for rapid-stop applications without external hardware
📐 Technical Parameters
Model MD200S0.4B-CAN
Rated Power 0.4 kW / 0.5 HP
Input Voltage 1-Phase 200 – 240V AC (-15% ~ +10%)
Input Frequency 50 / 60 Hz (±5%)
Output Voltage 0 – Input Voltage (3-Phase)
Output Frequency 0 – 400 Hz
Rated Output Current 2.5 A
Overload Capacity 150% for 60s
Control Modes SVC (Sensorless Vector Control), V/F
Starting Torque 150% at 0.5 Hz (SVC mode)
Speed Regulation Range 1:100 (SVC)
Speed Accuracy ±0.5% (SVC)
Fieldbus Communication CANopen DS301/DS402
Serial Communication RS485 Modbus RTU
Braking Unit Built-in braking chopper
Cooling Method Natural cooling / Fanless design
Mounting Panel mount / DIN-rail compatible
Protection Rating IP20
Ambient Temperature -10°C ~ +50°C (derating above 40°C)
Dimensions (W×H×D) Approx. 72 × 142 × 112 mm
Weight Approx. 0.8 kg
Certifications ✔ CE ✔ RoHS
