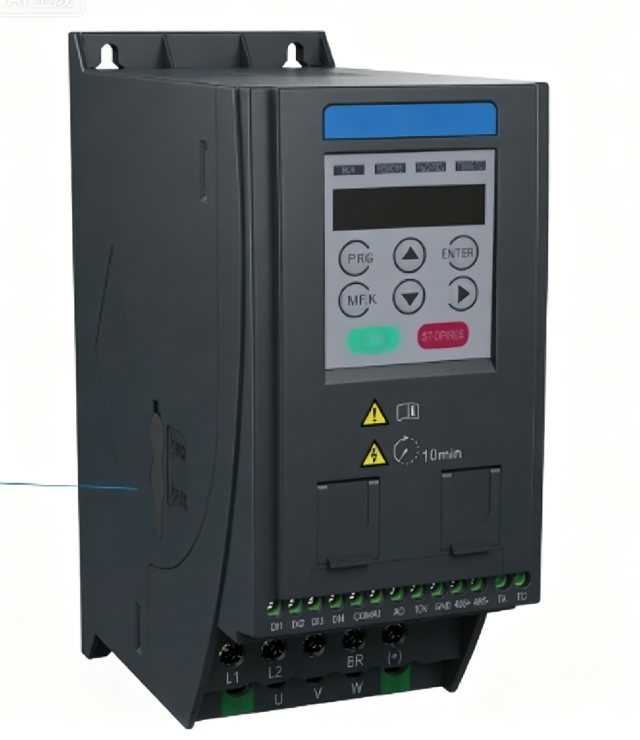

INOVANCE MD200T2.2B Affordable Motor Drive Industrial Speed Regulator

1
MOQ
680-800$
Price
INOVANCE MD200T2.2B Affordable Motor Drive Industrial Speed Regulator
Features Gallery Product Description Chat Now
Features
Specifications
Humidity: 5% To 95% RH, Non-condensing
Analog Input: 1 Way 0~10V Or 0~20mA
Weight: Varies By Model, Typically 5-50 Kg
Input Power Supply: Three-phase 380~480Vac, 50/60Hz
Highlight:

INOVANCE MD200T frequency converter

,

2.2KW variable frequency drive

,

original INOVANCE VFD with warranty
Basic Infomation
Place of Origin: China
Brand Name: Inovance
Certification: CO
Model Number: MD200T2.2B
Document: MD200_Fl_EN_Singles_Web_V2.....4.pdf
Payment & Shipping Terms
Delivery Time: 5-8days
Payment Terms: T/T
Supply Ability: 98PCS
Product Description
Model:MD200T2.2B 2.2KW
📦 Product Overview

The INOVANCE MD200T2.2B is the flagship model of the 3-phase MD200T series, delivering 2.2 kW (3 HP) for reliable motor speed regulation of three-phase asynchronous AC motors. As the most powerful and capable drive in this affordable lineup, it combines sensorless vector control (SVC), a built-in braking unit, and PID process control in the most compact package available. Engineered as an affordable motor drive and industrial speed regulator for everyday applications, the MD200T2.2B is the ideal fan pump controller and OEM machine drive for cost-conscious projects requiring maximum 3-phase micro drive power.

✨ Product Advantages
  • Affordable Motor Drive — Full SVC with 150% starting torque at 0.5 Hz delivers the highest 3-phase micro drive power at an unbeatable entry-level price
  • Industrial Speed Regulator — ±0.5% speed accuracy and 1:100 regulation range ensure precise motor control for consistent process quality
  • Built-in PID Process Control — Integrated closed-loop controller for flow, pressure, and temperature regulation without external PLC programming
  • 3-Phase 380V Direct Power — Standard industrial voltage input for seamless factory installation and reliable high-efficiency motor operation
  • Minimal Cabinet Footprint — Compact design maximizes control panel density, enabling side-by-side multi-drive arrays in standard cabinets
  • DIN-rail Mounting — Tool-free snap-on installation reduces assembly labor and simplifies distribution panel layout and maintenance
  • Built-in Braking Chopper — Integrated dynamic braking unit supports fast deceleration and precise stopping for rapid-cycle automation
  • Long-life Reliability — Conformal-coated PCB, comprehensive multi-layer protection, and robust industrial design for years of trouble-free operation
📐 Technical Parameters
Model MD200T2.2B
Rated Power 2.2 kW / 3 HP
Input Voltage 3-Phase 380 – 480V AC (-15% ~ +10%)
Input Frequency 50 / 60 Hz (±5%)
Output Voltage 0 – Input Voltage
Output Frequency 0 – 400 Hz
Rated Output Current 5.5 A
Overload Capacity 150% for 60s
Control Modes SVC (Sensorless Vector Control), V/F
Starting Torque 150% at 0.5 Hz (SVC mode)
Speed Regulation Range 1:100 (SVC)
Speed Accuracy ±0.5% (SVC)
Braking Unit Built-in braking chopper
Communication RS485 Modbus RTU
Cooling Method Forced air cooling
Mounting Panel mount / DIN-rail compatible
Protection Rating IP20
Ambient Temperature -10°C ~ +50°C (derating above 40°C)
Altitude ≤1000 m (derating above)
Humidity ≤95% RH, non-condensing
Dimensions (W×H×D) Approx. 100 × 160 × 110 mm
Weight Approx. 1.3 kg
Certifications
✔ CE ✔ RoHS
