INOVANCE MD200T1.5B Economical Speed Controller General Purpose Inverter

1
MOQ
690-800$
Price
INOVANCE MD200T1.5B Economical Speed Controller General Purpose Inverter
Features Gallery Product Description Chat Now
Features
Specifications
Outputfrequency: 0 To 400 Hz Or Higher
Inputvoltage: Typically 200-600V AC
Output: Three-phase 0 - 220V
Communication Method: RS485, Modbus
Highlight:

INOVANCE MD200T1.5B frequency converter

,

original MD200S VFD with CAN

,

1.5KW variable frequency drive
Basic Infomation
Place of Origin: China
Brand Name: Inovance
Certification: CO
Model Number: MD200T1.5B
Document: MD200_Fl_EN_Singles_Web_V2.....4.pdf
Payment & Shipping Terms
Delivery Time: 5-8days
Payment Terms: T/T
Supply Ability: 98PCS
Product Description
Model:MD200T1.5B 1.5KW
📦 Product Overview

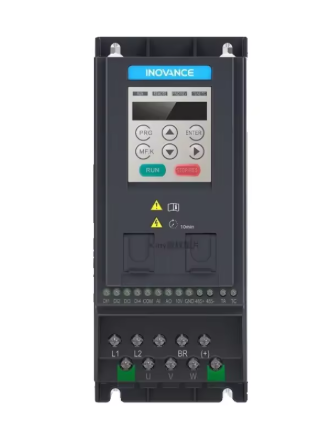

The INOVANCE MD200T1.5B is a compact economical speed controller delivering 1.5 kW (2 HP) for reliable motor speed regulation of three-phase asynchronous AC motors. As a mid-power member of the 3-phase MD200T series, it combines sensorless vector control (SVC) with a built-in braking unit and DIN-rail mounting in an affordable package. Designed as a general purpose inverter for everyday industrial applications, the MD200T1.5B is the ideal OEM machine drive for small conveyors, pumps, fans, mixers, and manufacturing equipment where dependable performance and low cost are top priorities.

✨ Product Advantages
  • Economical Speed Controller — Sensorless vector control with 150% starting torque at 0.5 Hz delivers professional performance at the lowest price point
  • General Purpose Inverter — Versatile SVC and V/F control modes suit a broad range of small industrial motor applications out of the box
  • 3-Phase 380V Industrial Power — Standard factory 3-phase input ensures simple integration into existing electrical infrastructure
  • Space-efficient Design — Compact footprint allows side-by-side multi-drive installation in standard control cabinets and machine enclosures
  • DIN-rail Snap-on Mounting — Tool-free mounting dramatically reduces panel assembly time and simplifies wiring and maintenance
  • Silent Convection Cooling — Fanless natural cooling design enables noise-free operation suitable for laboratories and clean environments
  • Built-in Braking Chopper — Integrated dynamic braking supports fast deceleration for rapid-cycle applications without external hardware
  • Budget-friendly Reliability — Conformal-coated PCB and comprehensive drive protection ensure long service life with minimal investment
📐 Technical Parameters
Model MD200T1.5B
Rated Power 1.5 kW / 2 HP
Input Voltage 3-Phase 380 – 480V AC (-15% ~ +10%)
Input Frequency 50 / 60 Hz (±5%)
Output Voltage 0 – Input Voltage
Output Frequency 0 – 400 Hz
Rated Output Current 3.8 A
Overload Capacity 150% for 60s
Control Modes SVC (Sensorless Vector Control), V/F
Starting Torque 150% at 0.5 Hz (SVC mode)
Speed Regulation Range 1:100 (SVC)
Speed Accuracy ±0.5% (SVC)
Braking Unit Built-in braking chopper
Communication RS485 Modbus RTU
Cooling Method Natural cooling / Fanless design
Mounting Panel mount / DIN-rail compatible
Protection Rating IP20
Ambient Temperature -10°C ~ +50°C (derating above 40°C)
Altitude ≤1000 m (derating above)
Humidity ≤95% RH, non-condensing
Dimensions (W×H×D) Approx. 100 × 160 × 110 mm
Weight Approx. 1.2 kg
Certifications ✔ CE ✔ RoHS
