Home /Products/Variable Frequency Drives VFD/INOVANCE MD200T0.75B Tiny Industrial Inverter Energy Saving Micro Drive

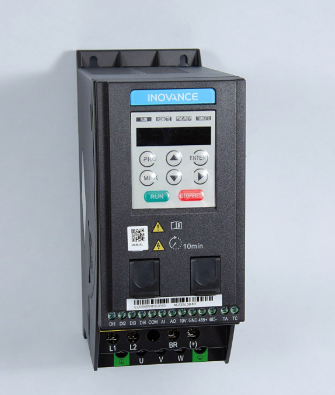

INOVANCE MD200T0.75B Tiny Industrial Inverter Energy Saving Micro Drive

1
MOQ
680-850$
Price
INOVANCE MD200T0.75B Tiny Industrial Inverter Energy Saving Micro Drive
Features Gallery Product Description Chat Now
Features
Specifications
Integrationcapability: SCADA, HMI, MES Systems
Coolingmethod: Air-cooled Or Liquid-cooled
Output: Three-phase 0 - 220V
Condition: New Original With Sealed
Highlight:

INOVANCE MD200T frequency converter

,

0.75KW variable frequency drive

,

MD200S VFD with CAN interface
Basic Infomation
Place of Origin: China
Brand Name: Inovance
Certification: CO
Model Number: MD200T0.75B
Document: MD200_Fl_EN_Singles_Web_V2.....4.pdf
Payment & Shipping Terms
Delivery Time: 5-8days
Payment Terms: T/T
Supply Ability: 98PCS
Product Description
Model:MD200T0.75B 0.75KW
📦 Product Overview

The INOVANCE MD200T0.75B is a tiny industrial inverter delivering 0.75 kW (1 HP) for precision speed control of small three-phase asynchronous AC motors. As the 3-phase 380V variant of the entry-level MD200 series, it packs sensorless vector control (SVC), a built-in braking unit, and silent fanless operation into the most compact and affordable package available. With DIN-rail mounting capability and RS485 Modbus communication, the MD200T0.75B is the ideal low-cost drive solution for compact OEM machines, small pumps and fans, and budget-sensitive automation projects in industrial environments.

✨ Product Advantages
  • Tiny Industrial Inverter — Full sensorless vector control with 150% starting torque at 0.5 Hz in the smallest 3-phase micro drive in its class
  • Energy Saving Micro Drive — Built-in energy optimization reduces power consumption under light loads while auto-tuning maximizes motor efficiency
  • 3-Phase 380V Direct Input — Connects directly to standard factory 3-phase supply for seamless integration into industrial electrical systems
  • Minimal Panel Footprint — Ultra-compact design saves valuable control cabinet space, enabling high-density multi-drive installations
  • DIN-rail Snap-on Mounting — Tool-free DIN-rail installation reduces assembly time and simplifies panel layout and maintenance access
  • Silent Fanless Cooling — Natural convection design produces zero fan noise for laboratories, clean rooms, and noise-sensitive industrial areas
  • Built-in Braking Unit — Integrated braking chopper enables fast deceleration for rapid-stop applications without external components
  • Lowest Total Cost — The most affordable 3-phase vector drive available delivers professional performance with minimal upfront investment
📐 Technical Parameters
Model MD200T0.75B
Rated Power 0.75 kW / 1 HP
Input Voltage 3-Phase 380 – 480V AC (-15% ~ +10%)
Input Frequency 50 / 60 Hz (±5%)
Output Voltage 0 – Input Voltage
Output Frequency 0 – 400 Hz
Rated Output Current 2.5 A
Overload Capacity 150% for 60s
Control Modes SVC (Sensorless Vector Control), V/F
Starting Torque 150% at 0.5 Hz (SVC mode)
Speed Regulation Range 1:100 (SVC)
Speed Accuracy ±0.5% (SVC)
Braking Unit Built-in braking chopper
Communication RS485 Modbus RTU
Cooling Method Natural cooling / Fanless design
Mounting Panel mount / DIN-rail compatible
Protection Rating IP20
Ambient Temperature -10°C ~ +50°C (derating above 40°C)
Altitude ≤1000 m (derating above)
Humidity ≤95% RH, non-condensing
Dimensions (W×H×D) Approx. 72 × 142 × 112 mm
Weight Approx. 0.8 kg
Certifications ✔ CE ✔ RoHS
