Home /Products/Variable Frequency Drives VFD/INOVANCE MD200T0.4B Micro Vector Drive Compact Motor Controller

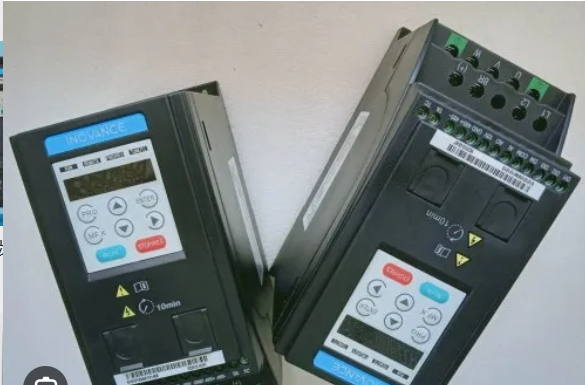

INOVANCE MD200T0.4B Micro Vector Drive Compact Motor Controller

1
MOQ
680-800$
Price
INOVANCE MD200T0.4B Micro Vector Drive Compact Motor Controller
Features Gallery Product Description Chat Now
Features
Specifications
Humidity: 0-95% Non-condensing
Efficiency: Typically 95% To 98%
Communication Method: RS485, Modbus
Highlight:

INOVANCE MD200T frequency converter

,

0.4KW variable frequency drive

,

original VFD with CAN interface
Basic Infomation
Place of Origin: China
Brand Name: Inovance
Certification: CO
Model Number: MD200T0.4B
Document: MD200_Fl_EN_Singles_Web_V2.....4.pdf
Payment & Shipping Terms
Delivery Time: 5-8days
Payment Terms: T/T
Supply Ability: 96PCS
Product Description
Model:MD200T0.4B 0.4KW
📦 Product Overview

The INOVANCE MD200T0.4B is an ultra-compact micro variable frequency drive delivering 0.4 kW (0.5 HP) for precision speed control of small three-phase asynchronous AC motors. As the 3-phase 380V input variant of the MD200 series, it brings sensorless vector control (SVC) to the most affordable price point in the Inovance lineup. Featuring a built-in braking unit, silent fanless design, and DIN-rail mounting capability, the MD200T0.4B is the perfect micro drive solution for compact OEM machinery, small pumps and fans, and cost-sensitive automation projects where 3-phase power is available and every millimeter of panel space matters.

✨ Product Advantages
  • Micro Vector Drive — Full sensorless vector control with 150% starting torque at 0.5 Hz in the smallest 3-phase micro drive form factor
  • Compact Motor Controller — ±0.5% speed accuracy with 1:100 regulation range for precise small-motor control in minimal space
  • 3-Phase 380V Input — Direct connection to standard industrial 3-phase 380V supply for factory and workshop installations
  • Ultra-small Footprint — The most compact 3-phase drive in its class enables integration into the tightest control panels and machine enclosures
  • DIN-rail Mounting — Tool-free snap-on DIN-rail installation reduces panel building time and simplifies maintenance access
  • Silent Fanless Design — Natural convection cooling with zero acoustic noise for laboratories, medical facilities, and noise-sensitive industrial environments
  • Built-in Braking Unit — Integrated braking chopper enables fast, controlled deceleration for rapid-stop applications without external hardware
  • Maximum Affordability — The most cost-effective 3-phase vector control drive available delivers professional performance at an entry-level price
📐 Technical Parameters
Model MD200T0.4B
Rated Power 0.4 kW / 0.5 HP
Input Voltage 3-Phase 380 – 480V AC (-15% ~ +10%)
Input Frequency 50 / 60 Hz (±5%)
Output Voltage 0 – Input Voltage
Output Frequency 0 – 400 Hz
Rated Output Current 1.5 A
Overload Capacity 150% for 60s
Control Modes SVC (Sensorless Vector Control), V/F
Starting Torque 150% at 0.5 Hz (SVC mode)
Speed Regulation Range 1:100 (SVC)
Speed Accuracy ±0.5% (SVC)
Braking Unit Built-in braking chopper
Communication RS485 Modbus RTU
Cooling Method Natural cooling / Fanless design
Mounting Panel mount / DIN-rail compatible
Protection Rating IP20
Ambient Temperature -10°C ~ +50°C (derating above 40°C)
Altitude ≤1000 m (derating above)
Humidity ≤95% RH, non-condensing
Dimensions (W×H×D) Approx. 72 × 142 × 112 mm
Weight Approx. 0.8 kg
Certifications ✔ CE ✔ RoHS
