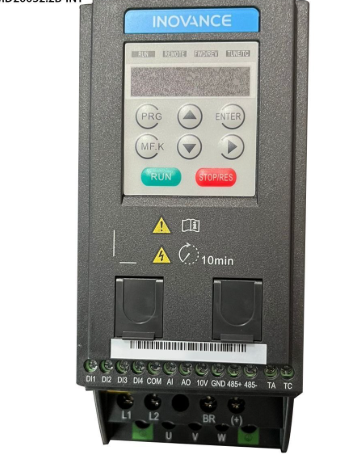

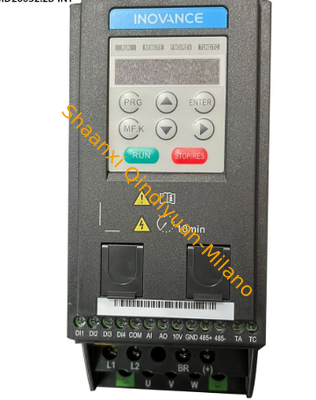

INOVANCE MD200S2.2B Compact Vector Drive Precision Motor Control

1
MOQ
680-850$
Price
INOVANCE MD200S2.2B Compact Vector Drive Precision Motor Control
Features Gallery Product Description Chat Now
Features
Specifications
Coolingmethod: Air Cooled Or Liquid Cooled
Application: Oil And Gas Factory
Power Rating: 0.5 KW To 500 KW
Compatibility: SCADA Systems, HMI Panels
Highlight:

INOVANCE MD200S2.2B frequency converter

,

2.2KW VFD drive with warranty

,

MD200T variable frequency drive
Basic Infomation
Place of Origin: China
Brand Name: Inovance
Certification: CO
Model Number: MD200S2.2B
Document: MD200_Fl_EN_Singles_Web_V2.....4.pdf
Payment & Shipping Terms
Delivery Time: 5-8days
Payment Terms: T/T
Supply Ability: 98PCS
Product Description
Model: MD200S2.2B 2.2KW
📦 Product Overview

The INOVANCE MD200S2.2B is the flagship model of the single-phase MD200S series, delivering 2.2 kW (3 HP) for precision speed control of three-phase asynchronous AC motors. Accepting standard 220V single-phase input and converting to 3-phase output with advanced sensorless vector control (SVC), it provides the highest power available in a single-phase-input Inovance micro drive. Featuring a built-in braking unit, fanless cooling design, and DIN-rail mounting, the MD200S2.2B is the ultimate choice for OEM machinery builders and small industrial applications that demand maximum single-phase power in a minimal footprint.

✨ Product Advantages
  • Compact Vector Drive — Full SVC with 150% starting torque at 0.5 Hz delivers professional drive performance in the smallest single-phase-input package
  • Precision Motor Control — ±0.5% speed accuracy with 1:100 regulation range and auto-tuning for consistent reliable operation across all loads
  • Single-phase 220V Power — The most powerful single-phase-input micro drive delivers 3 HP from standard mains, eliminating expensive 3-phase infrastructure
  • Minimal Cabinet Footprint — Compact design maximizes valuable control panel space, enabling higher-density multi-drive installations
  • DIN-rail Mounting — Tool-free snap-on DIN-rail installation dramatically reduces panel assembly time and simplifies wiring layout
  • Silent Fanless Operation — Natural convection cooling with zero acoustic noise for laboratories, medical environments, and noise-sensitive workplaces
  • Built-in Braking Unit — Integrated braking chopper enables fast, controlled deceleration for rapid-cycle processes without external hardware
  • Unbeatable Value — Flagship single-phase power at an entry-level price makes it the cost-performance leader for budget-driven applications
📐 Technical Parameters
Model MD200S2.2B
Rated Power 2.2 kW / 3 HP
Input Voltage 1-Phase 200 – 240V AC (-15% ~ +10%)
Input Frequency 50 / 60 Hz (±5%)
Output Voltage 0 – Input Voltage (3-Phase)
Output Frequency 0 – 400 Hz
Rated Output Current 10 A
Overload Capacity 150% for 60s
Control Modes SVC (Sensorless Vector Control), V/F
Starting Torque 150% at 0.5 Hz (SVC mode)
Speed Regulation Range 1:100 (SVC)
Speed Accuracy ±0.5% (SVC)
Braking Unit Built-in braking chopper
Communication RS485 Modbus RTU
Cooling Method Forced air cooling
Mounting Panel mount / DIN-rail compatible
Protection Rating IP20
Ambient Temperature -10°C ~ +50°C (derating above 40°C)
Altitude ≤1000 m (derating above)
Humidity ≤95% RH, non-condensing
Dimensions (W*H*D) Approx. 100 * 160 * 110 mm
Weight Approx. 1.3 kg
Certifications
✔ CE ✔ RoHS
