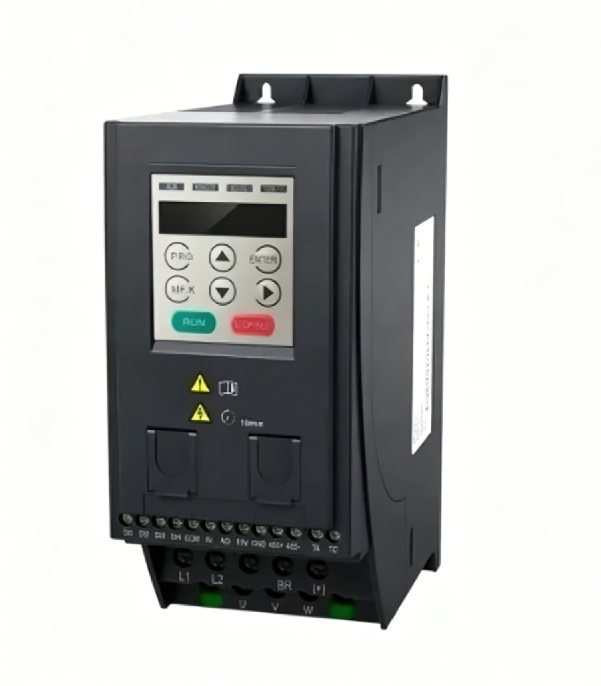

INOVANCE MD200S1.5B Compact Vector Drive Precision Motor Control

1
MOQ
700-850$
Price
INOVANCE MD200S1.5B Compact Vector Drive Precision Motor Control
Features Gallery Product Description Chat Now
Features
Specifications
Analog Output: 1 Way 0~10V Or 0~20mA
Scalability: Modular Expansion Supported
Ambient Temperature Range: -10°C To 50°C
Powerconsumption: Varies By Model, Typically 10-50W
Highlight:

INOVANCE MD200S frequency converter

,

1.5KW VFD drive with CAN

,

variable frequency drive MD200T
Basic Infomation
Place of Origin: China
Brand Name: Inovance
Certification: CO
Model Number: MD200S1.5B
Document: MD200_Fl_EN_Singles_Web_V2.....4.pdf
Payment & Shipping Terms
Delivery Time: 5-8days
Payment Terms: T/T
Supply Ability: 96PCS
Product Description
Model:MD200S1.5B 1.5KW
📦 Product Overview

The INOVANCE MD200S1.5B is a compact micro variable frequency drive delivering 1.5 kW (2 HP) for precision speed control of small to medium three-phase asynchronous AC motors. As the highest-rated model in the single-phase MD200S series, it accepts standard 220V single-phase input and converts to 3-phase output with sensorless vector control (SVC) technology. Featuring a built-in braking unit, silent fanless design, and DIN-rail mounting capability, the MD200S1.5B provides the perfect power upgrade for OEM machinery builders and small industrial applications requiring the most capable single-phase-input drive at an exceptional value.

✨ Product Advantages
  • Compact Vector Drive — Sensorless vector control delivers 150% starting torque at 0.5 Hz in the smallest single-phase-input form factor available
  • Precision Motor Control — ±0.5% speed accuracy with auto-tuning ensures consistent reliable performance across varying load conditions
  • Single-phase 220V Input — Runs directly from standard residential/commercial single-phase mains, eliminating 3-phase infrastructure costs completely
  • Space-saving Design — Compact footprint enables integration into tight control panels while preserving valuable cabinet real estate for other components
  • DIN-rail Mounting — Standard DIN-rail compatibility with tool-free snap-on installation simplifies panel building and reduces assembly time
  • Silent Fanless Operation — Natural convection cooling with zero fan noise makes it ideal for laboratories, medical facilities, and noise-sensitive workspaces
  • Built-in Braking Unit — Integrated braking chopper enables fast, controlled deceleration for rapid-stop applications without external hardware
  • Outstanding Cost-efficiency — The most powerful single-phase-input drive in the lineup at an entry-level price point for budget-conscious applications
📐 Technical Parameters
Model MD200S1.5B
Rated Power 1.5 kW / 2 HP
Input Voltage 1-Phase 200 – 240V AC (-15% ~ +10%)
Input Frequency 50 / 60 Hz (±5%)
Output Voltage 0 – Input Voltage (3-Phase)
Output Frequency 0 – 400 Hz
Rated Output Current 7 A
Overload Capacity 150% for 60s
Control Modes SVC (Sensorless Vector Control), V/F
Starting Torque 150% at 0.5 Hz (SVC mode)
Speed Regulation Range 1:100 (SVC)
Speed Accuracy ±0.5% (SVC)
Braking Unit Built-in braking chopper
Communication RS485 Modbus RTU
Cooling Method Natural cooling / Fanless design
Mounting Panel mount / DIN-rail compatible
Protection Rating IP20
Ambient Temperature -10°C ~ +50°C (derating above 40°C)
Altitude ≤1000 m (derating above)
Humidity ≤95% RH, non-condensing
Dimensions (W×H×D) Approx. 100 × 160 × 110 mm
Weight Approx. 1.2 kg
Certifications ✔ CE ✔ RoHS
