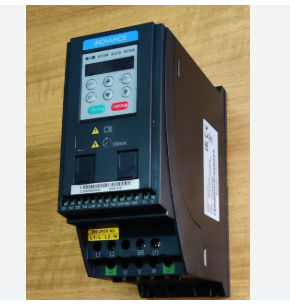

INOVANCE MD200S0.75B Compact Vector Drive Precision Motor Control

1
MOQ
680-760$
Price
INOVANCE MD200S0.75B Compact Vector Drive Precision Motor Control
Features Gallery Product Description Chat Now
Features
Specifications
Coolingmethod: Air-cooled Or Liquid-cooled
Humidity: 0 To 95% Non-condensing
Output Frequency Range: 0-400 Hz
Output: Three-phase 0 - 220V
Highlight:

INOVANCE MD200S frequency converter

,

0.75KW variable frequency drive

,

original MD200T VFD with CAN
Basic Infomation
Place of Origin: China
Brand Name: Inovance
Certification: CO
Model Number: MD200S0.75B
Document: MD200_Fl_EN_Singles_Web_V2.....4.pdf
Payment & Shipping Terms
Delivery Time: 5-8days
Payment Terms: T/T
Supply Ability: 98PCS
Product Description
Model: MD200S0.75B 0.75KW
📦 Product Overview

The INOVANCE MD200S0.75B is an ultra-compact micro variable frequency drive delivering 0.75 kW (1 HP) for precision speed control of small three-phase asynchronous AC motors. Part of Inovance's most affordable MD200S series, it accepts single-phase 220V input, converts to 3-phase output, and features sensorless vector control (SVC) with a built-in braking unit. With its silent fanless design and DIN-rail mounting capability, the MD200S0.75B is the perfect choice for compact OEM machinery, small pumps and fans, and cost-sensitive automation projects where space, simplicity, and budget matter most.

✨ Product Advantages
  • Compact Vector Drive — Sensorless vector control delivers 150% starting torque at 0.5 Hz in the smallest form factor for micro-motor applications
  • Precision Motor Control — ±0.5% speed accuracy with auto-tuning ensures consistent reliable operation for small automation systems
  • Single-phase Input Ready — Runs directly from standard 220V single-phase mains, eliminating 3-phase power requirements for small installations
  • Ultra-compact Footprint — One of the smallest drives available enables integration into the tightest control panels and machine frames
  • DIN-rail Mounting — Standard DIN-rail compatibility enables fast, tool-free installation alongside other control components
  • Silent Fanless Operation — Natural convection cooling produces zero fan noise, ideal for noise-sensitive and clean-room environments
  • Built-in Braking Unit — Integrated braking chopper supports fast deceleration for rapid-stop applications without external components
  • Exceptional Value — Entry-level pricing with professional vector control performance delivers the best cost-performance ratio for budget-sensitive projects
📐 Technical Parameters
Model MD200S0.75B
Rated Power 0.75 kW / 1 HP
Input Voltage 1-Phase 200 – 240V AC (-15% ~ +10%)
Input Frequency 50 / 60 Hz (±5%)
Output Voltage 0 – Input Voltage (3-Phase)
Output Frequency 0 – 400 Hz
Rated Output Current 4.5 A
Overload Capacity 150% for 60s
Control Modes SVC (Sensorless Vector Control), V/F
Starting Torque 150% at 0.5 Hz (SVC mode)
Speed Regulation Range 1:100 (SVC)
Speed Accuracy ±0.5% (SVC)
Braking Unit Built-in braking chopper
Communication RS485 Modbus RTU
Cooling Method Natural cooling / Fanless design
Mounting Panel mount / DIN-rail compatible
Protection Rating IP20
Ambient Temperature -10°C ~ +50°C (derating above 40°C)
Altitude ≤1000 m (derating above)
Humidity ≤95% RH, non-condensing
Dimensions (W*H*D) Approx. 72 * 142 * 112 mm
Weight Approx. 0.8 kg
Certifications ✔ CE ✔ RoHS
