INOVANCE MD200S0.4B Compact Vector Drive Precision Motor Control

1
MOQ
680-800$
Price
INOVANCE MD200S0.4B Compact Vector Drive Precision Motor Control
Features Gallery Product Description Chat Now
Features
Specifications
Communication: Modbus RTU
Inverter Power: 0.2kW~22kW
Outputvoltage: Adjustable, Up To Input Voltage
Analog Input: 1 Way 0~10V Or 0~20mA
Highlight:

INOVANCE MD200S frequency converter

,

original MD200T VFD drive

,

0.4KW variable frequency drive
Basic Infomation
Place of Origin: China
Brand Name: Inovance
Certification: CO
Model Number: MD200S0.4B
Document: MD200_Fl_EN_Singles_Web_V2.....4.pdf
Payment & Shipping Terms
Delivery Time: 5-8days
Payment Terms: T/T
Supply Ability: 98PCS
Product Description

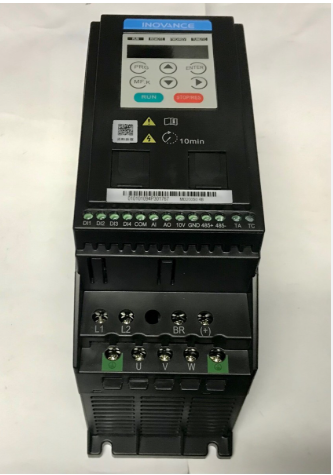

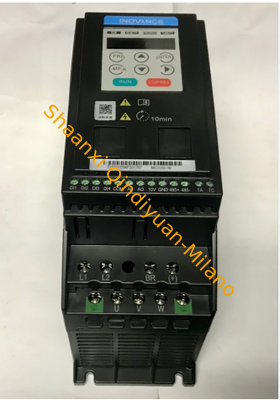

Model: MD200S0.4B
📦 Product Overview

The INOVANCE MD200S0.4B is an ultra-compact micro variable frequency drive delivering 0.4 kW (0.5 HP) for precision speed control of small three-phase asynchronous AC motors. As part of Inovance's most affordable MD200S series, it accepts single-phase 220V input and outputs 3-phase 220V to drive small motors with sensorless vector control (SVC) technology. Featuring a built-in braking unit, silent fanless design, and DIN-rail mounting capability, the MD200S0.4B is the ideal drive for compact OEM machines, small pumps and fans, and cost-sensitive automation projects where space and budget are at a premium.

✨ Product Advantages
  • Compact Vector Drive — Sensorless vector control in the smallest footprint delivers precise speed and torque regulation for micro-motor applications
  • Precision Motor Control — ±0.5% speed accuracy with auto-tuning ensures consistent reliable performance for small automation systems
  • Single-phase Input Ready — Operates directly from standard 220V single-phase AC mains, eliminating the need for 3-phase power or transformer installations
  • Ultra-compact Design — The smallest drive in the Inovance lineup enables integration into the tightest control panels and compact machine frames
  • DIN-rail Mounting — Standard DIN-rail compatibility allows fast, tool-free installation alongside contactors, relays, and circuit breakers
  • Silent Fanless Operation — Natural convection cooling with zero fan noise makes it perfect for noise-sensitive environments and clean-room applications
  • Built-in Braking Unit — Integrated braking chopper enables fast deceleration for rapid-stop applications without external braking components
  • Extreme Cost-effectiveness — Entry-level pricing with professional vector control performance delivers unmatched value for budget-sensitive OEM projects
📐 Technical Parameters
Model MD200S0.4B
Rated Power 0.4 kW / 0.5 HP
Input Voltage 1-Phase 200 – 240V AC (-15% ~ +10%)
Input Frequency 50 / 60 Hz (±5%)
Output Voltage 0 – Input Voltage (3-Phase)
Output Frequency 0 – 400 Hz
Rated Output Current 2.5 A
Overload Capacity 150% for 60s
Control Modes SVC (Sensorless Vector Control), V/F
Starting Torque 150% at 0.5 Hz (SVC mode)
Speed Regulation Range 1:100 (SVC)
Speed Accuracy ±0.5% (SVC)
Braking Unit Built-in braking chopper
Communication RS485 Modbus RTU
Cooling Method Natural cooling / Fanless design
Mounting Panel mount / DIN-rail compatible
Protection Rating IP20
Ambient Temperature -10°C ~ +50°C (derating above 40°C)
Altitude ≤1000 m (derating above)
Humidity ≤95% RH, non-condensing
Dimensions (W*H*D) Approx. 72 * 142 * 112 mm
Weight Approx. 0.8 kg
Certifications ✔ CE ✔ RoHS
